Page 1: Installation And

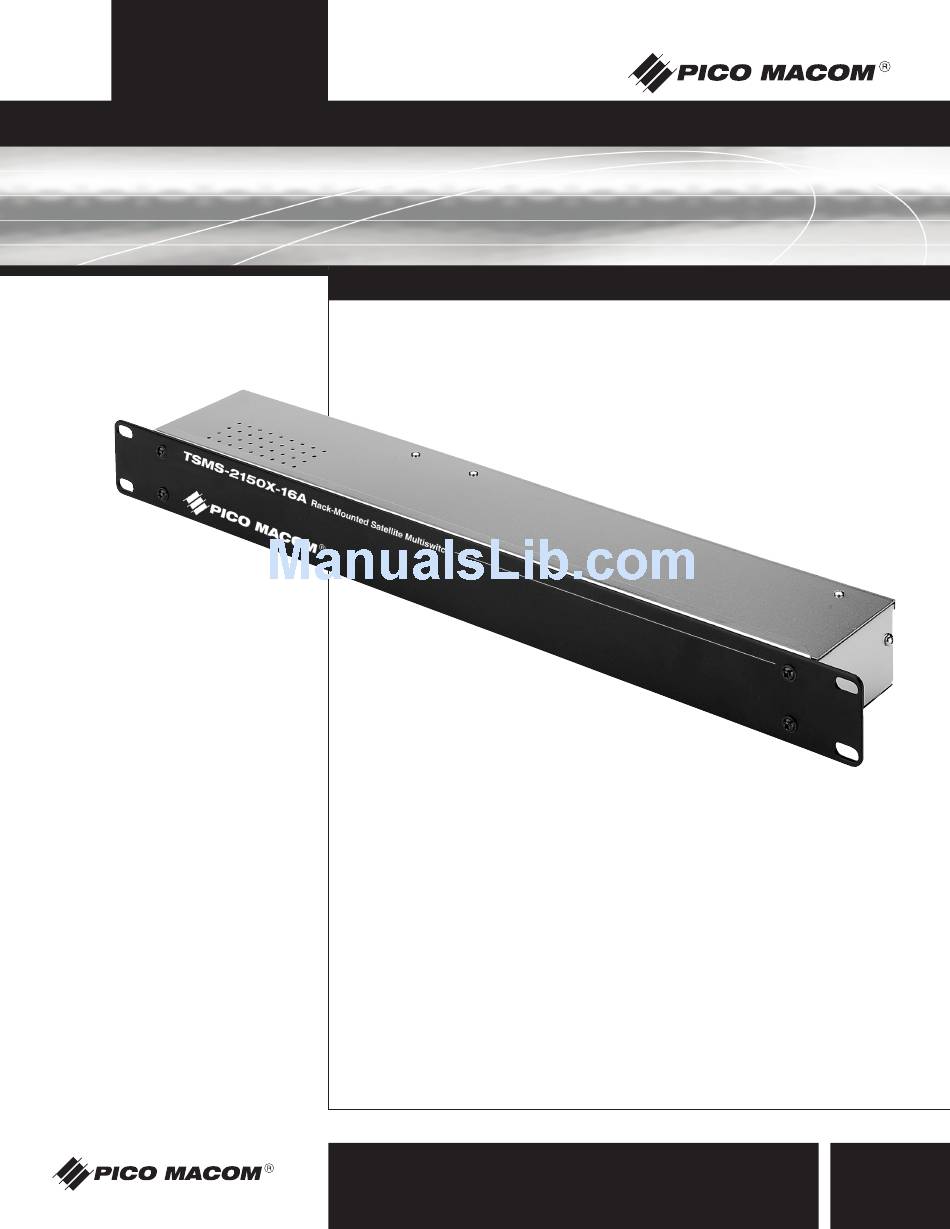

TSMS-2150X-16A Rack-Mounted Satellite Multiswitch Installation and Operation Manual Operation www.picomacom.com Ph: 800-421-6511 Manual Rev. 08/03... - Page 2 To insure proper installation and operation, take a moment to read this guide before proceeding with the installation. If you have any questions or comments about the TSMS-2150X-16A Rack-Mounted Satellite Multiswitch, please contact your dealer or have him contact the PICO MACOM Service Center at these phone numbers: 800-421-6511, 818-493-4300.
- Page 3 Safeguards TSMS-2150X-16A 11. Power Sources: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company.
- Page 4 The TSMS-2150X-8AUV allows 2 LNB inputs and 1 off-air antenna 500 mA voltage power input (40-806 MHz) and provides 8 outputs, while the TSMS-2150X-16A allows pass-through reduces cost by providing satellite receiver path for 2 LNB inputs and provides 16 outputs.
-
Page 5: Specifications
Specifications TSMS-2150X-16A TSMS-2150X-16A Rack-Mounted Satellite Multiswitch Front View Rear View Specifications LNB Input Frequency: Insertion Loss: 950-2150 MHz Switching Voltage: 950-1750 MHz 13-14 VDC - RHCP -8 dB typical 1750-2150 MHz 17-18 VDC - LHCP -13 dB typical External Power Adaptor:... -
Page 6: Operation And Controls
Operation and Controls TSMS-2150X-16A TSMS-2150X-16A Rack-Mounted Satellite Multiswitch Front Panel Back Panel Control LNB RHCP (13-14V): Connect the RHCP output of a LNB to this port. LNB LHCP (17-18V): Connect the LHCP output of a LNB to this port. OUT (1 thru 16): Connect a TV/Satellite diplexer to this port. -
Page 7: Installation Procedure
PHC-12G or a PHC-24G headend combiner may be used to accomplish Install chassis in equipment rack (equipment rack sold separately) by this purpose. supporting the bottom and rear of TSMS-2150X-16A at the desired The PHC-12G or PHC-24G passive headend combiner consists of two elevation in rack. -
Page 8: Limited Warranty
List Price of the loaner unit plus shipping costs. When you receive the loaner unit, pack the failed unit in the loaner unit’s box and ship it freight prepaid to Pico Macom for repair. When you receive the repaired unit, a new RMA number will be provided in the box. Carefully pack the loaner unit and affix the new RMA number on the box and ship it back to us for full credit excluding shipping costs.
