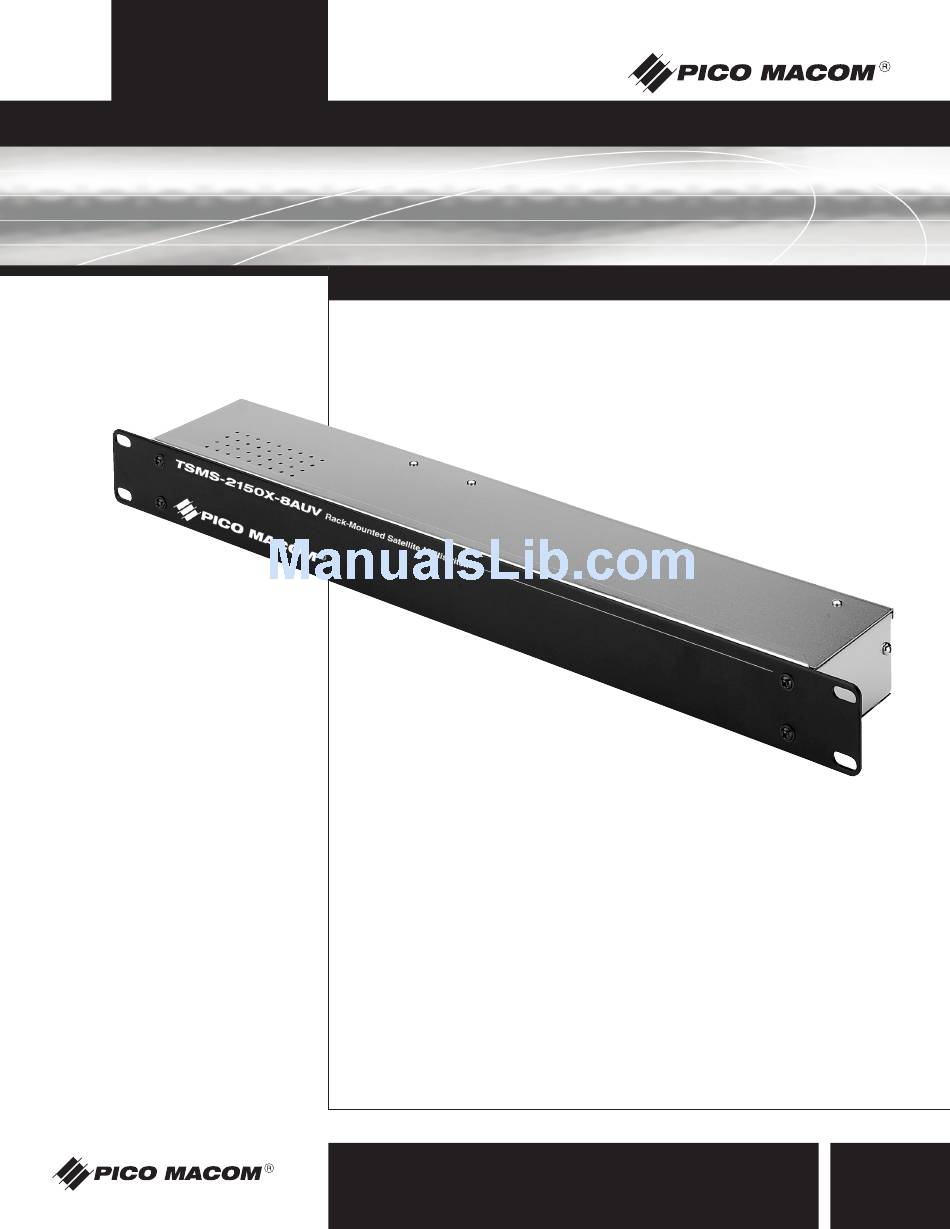

- Page 1 TSMS-2150X-8AUV Rack-Mounted Satellite Multiswitch Installation and Operation Manual Operation Ph: 800-421-6511 www.picomacom.com Manual Rev. 08/03...
- Page 2 To insure proper installation and operation, take a moment to read this guide before proceeding with the installation. If you have any questions or comments about the TSMS-2150X-8AUV Rack-Mounted Satellite Multiswitch, please contact your dealer or have him contact the PICO MACOM Service Center at these phone numbers: 800-421-6511, 818-493-4300.
- Page 3 Safeguards TSMS-2150X-8AUV 11. Power Sources: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company.
- Page 4 The TSMS-2150X-8AUV allows 2 LNB inputs and 1 off-air antenna and clutter input (40-806 MHz) and provides 8 outputs, while the TSMS-2150X-16A allows 2 LNB inputs and provides 16 outputs.
-
Page 5: Specifications
Dimensions: Output-to-Output 19˝(L) x 2.87˝(D) x 1 ˝(H) -14 dB Output Level Total # of Max. Input Max. Output Channels Level Level 17 dBmV -4 dBmV 8 dBmV -6 dBmV Ordering Information TSMS-2150X-8AUV 8 Outputs www.picomacom.com Ph: 800-421-6511 Rev. 08/03... -
Page 6: Operation And Controls
Operation and Controls TSMS-2150X-8AUV Front Panel Back Panel Control LNB RHCP (13-14V): OUT (1 thru 8): Connect the RHCP output of a LNB to this port. Connect a TV/Satellite diplexer to this port. Diplexer is not necessary if there is not an off-air requirement. -
Page 7: Installation Procedure
PHC-12G or a PHC-24G headend combiner may be used to accomplish Install chassis in equipment rack (equipment rack sold separately) by this purpose. supporting the bottom and rear of TSMS-2150X-8AUV at the desired elevation in rack. The PHC-12G or PHC-24G passive headend combiner consists of two Line up the side holes of chassis with the tapped equipment rack rows of directional couplers combined by a hybrid splitter. -
Page 8: Limited Warranty
List Price of the loaner unit plus shipping costs. When you receive the loaner unit, pack the failed unit in the loaner unit’s box and ship it freight prepaid to Pico Macom for repair. When you receive the repaired unit, a new RMA number will be provided in the box. Carefully pack the loaner unit and affix the new RMA number on the box and ship it back to us for full credit excluding shipping costs.
