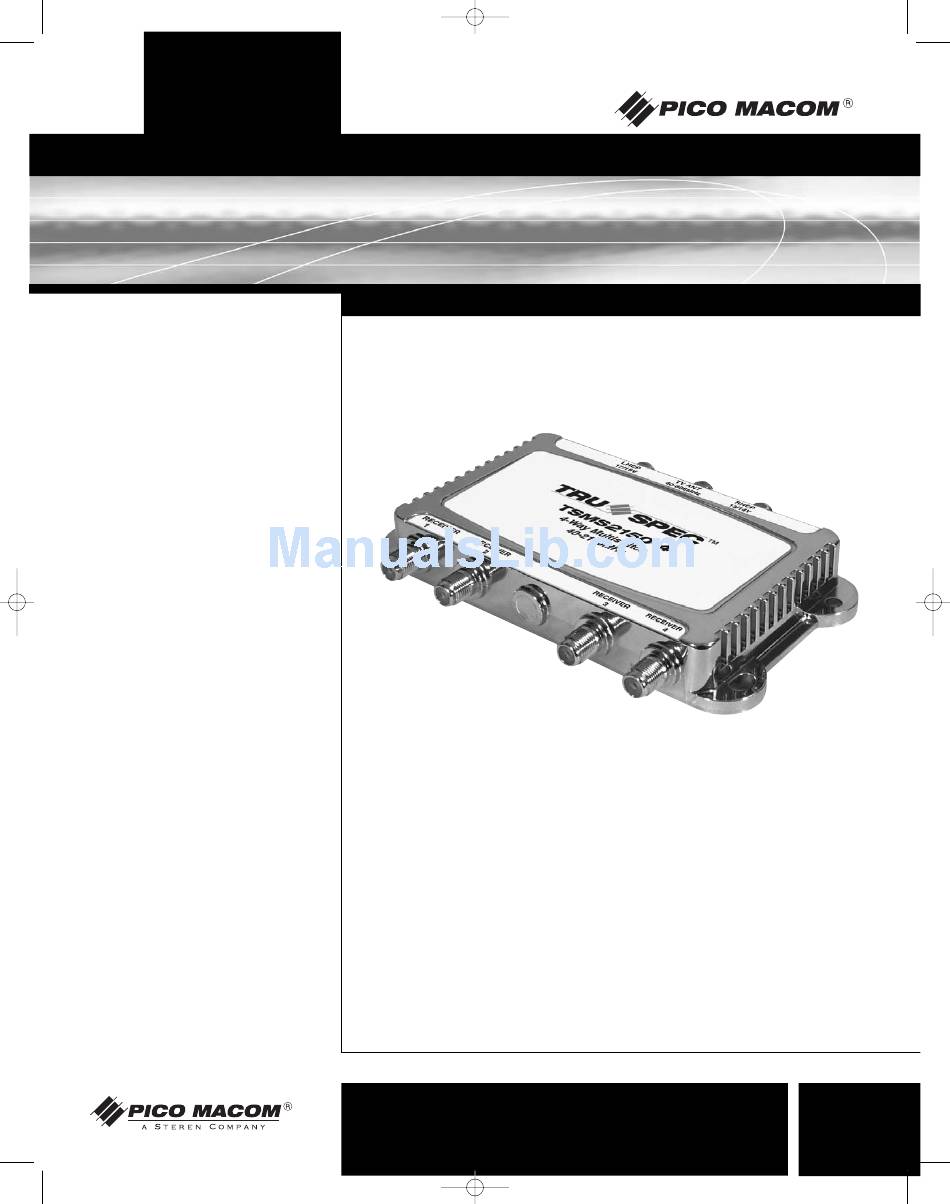

- Page 1 TSMS2150-4 Manual.qxd 12/31/03 11:01 AM Page 1 TSMS2150-4 3x4 Satellite IF Multiswitch Installation and Operation Manual Operation www.picomacom.com Ph: 800-421-6511 Manual Rev. 01/04...
- Page 2 The TSMS-2150-4 3x4 satellite multiswitch routes input signals from a single satellite with 2 LNB inputs (950-2150MHz) and an off-air TV antenna input (40-806MHz) to 4 receiver outputs by means of receiver generated voltage 13-14/17-18VDC.
-
Page 3: Specifications
Install the switch as shown. All of the RF connections must use 75 ohm coaxial cables. Connect each output of the multi-switch to the input of a TSDM-2150 TV/Satellite Splitter. Connect the TV output port of the TSDM-2150 to the VHF/UHF antenna input of the satellite receiver. -
Page 4: Limited Warranty
We will issue an invoice for the List Price of the loaner unit plus shipping costs. When you receive the loaner unit, pack the failed unit in the loaner unit’s box and ship it freight prepaid to Pico Macom for repair. When you receive the repaired unit, a new RMA number will be provided in the box. Carefully pack the loaner unit and affix the new RMA number on the box and ship it back to us for full credit excluding shipping costs.
