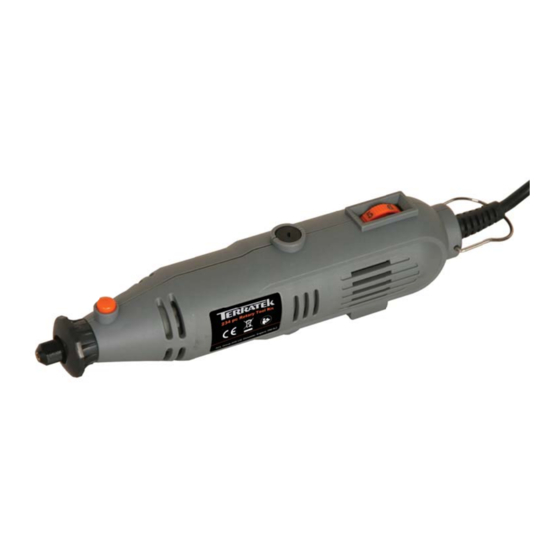

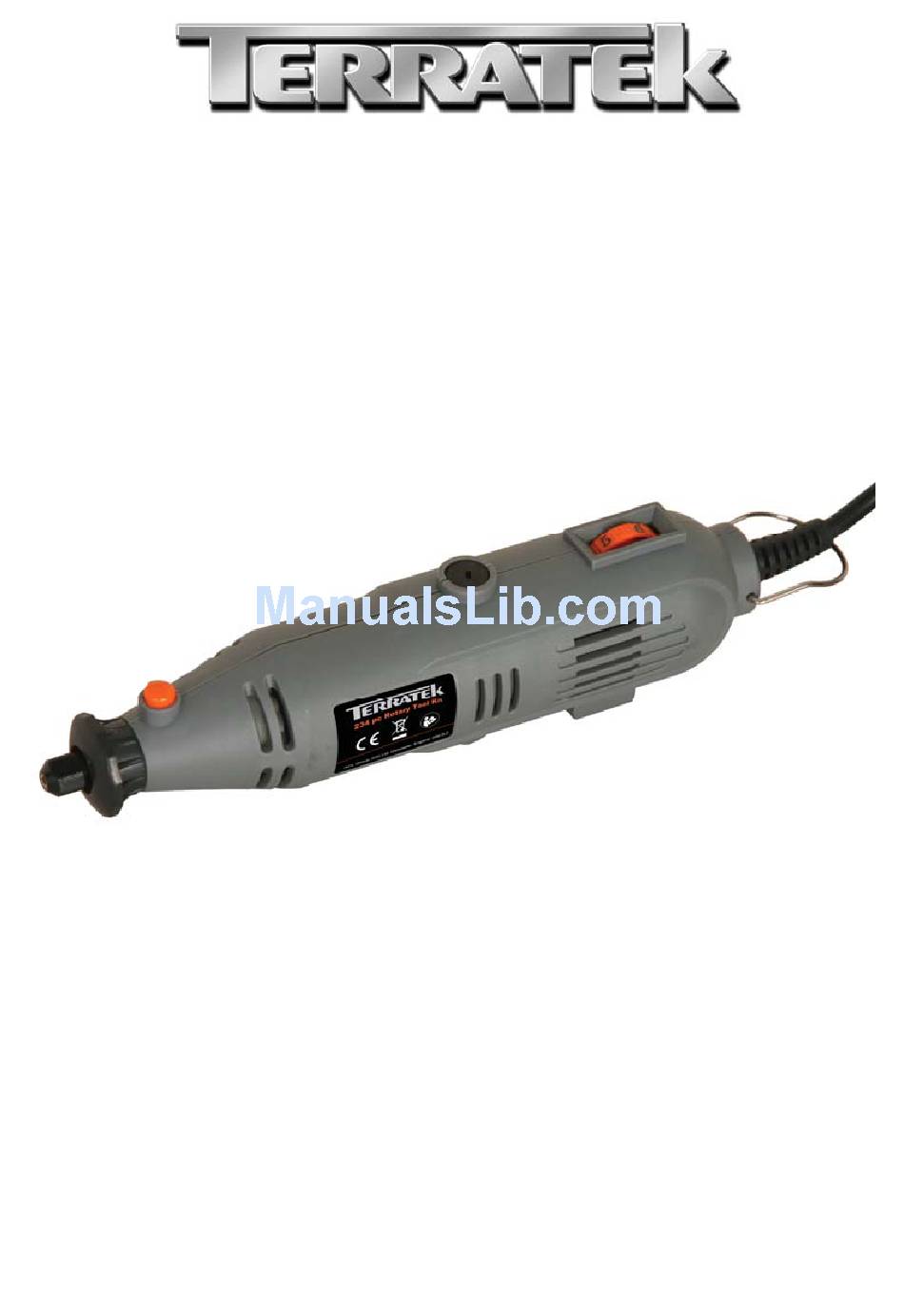

- Page 1 Rotary Mini Grinder TTRTK User Manual — Please read and retain for future reference. IMPORTANT: Read all instructions before use.
-
Page 2: Parts List
Contents Parts List Technical Information Safety Instructions Using your tool Maintenance Warranty Parts List Description Plug Cord sleeve Screw PCB board Switch Screw Left body Stator Carbon brush Right body Rotor Spindle lock button Nose cap Collet Collet but Bearing... - Page 3 Exploded Assembly Diagram NOTICE: Actual product may vary from pictures shown.
- Page 4 Fig.1 1. ON/OFF switch 2. Speed controller 3. Collet chuck nut 4. Locking knob for collet chuck 5. cover Fig.2...
- Page 5 Accessories list Specification Quantity Description 1/4” x 1/2” Grinding belt 1/2” x 1/2” Grinding belt Collet (1.6, 2.4, 3.2 mm x 2) Cutter (Ball shaped) Cutter HSS Drill bits ( 1.6, 2.3, 3.2mm) Diamond-tipped cutter Arbor for felt wheels Arbor for grinding wheels Grinding head for grinding belt ( 1/4”, 1/2”) Cutting wheel with arbor...
- Page 6 Picture No. 1 Picture No. 2...
- Page 7 Picture No. 3 Picture No. 4...
- Page 8 Picture No. 5 Picture No. 6...
- Page 9 Picture No. 7 Picture No. 8...
- Page 10 Picture No. 9 Picture No. 10...
-
Page 11: Technical Information
Technical Information Model: TTRTK Rated Power: 135W No-Load Speed: 10000 - 32000/min Chuck capacity: 3.2mm max. NW/GW: 0.7/1.3kg Remarking: This mini grinder can accept the Dremel rotary tool accessories. Read this entire manual before using this product. Failure to do so can result in serious injury. Save this manual for future reference. -
Page 12: Important Safety Information
Read and Keep This Manual Please read carefully all instructions within this manual. Failure to follow all safety warnings can result in serious personal injury. The term “Power Tool” in all of the following warnings refers to your mains operated (corded) or battery operated (cordless) power tool. Important SAFETY Information This symbol is to warn you of potential personal injury hazards. -
Page 13: Electrical Safety
Electrical safety Before use, ensure that the power outlet you are using matches the plug on your power tool and that the voltage of the outlet matches that of your power tool. Only use grounded extension cords with power tools fitted with 3 pin plugs and if using outdoors ensure any extension cord is suitable for outdoor use. -
Page 14: General Safety Instructions
Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Develop a periodic maintenance schedule for your tool. When cleaning a tool be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched or safety guard return springs may be improperly mounted. - Page 15 9. USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
- Page 16 26. NEVER LEAVE TOOL RUNNING UNATTENDED. Turn power off. Don’t leave tool until it comes to a complete stop. 27. Double Insulation eliminates the need for the three wire grounded power cord and grounded power supply system. This power tool is supplied with all the relevant safety guards and features, it should be checked before every operation, this manual should be read and kept in a safe place.
- Page 17 Keep hands away from cutting area. Do not use dull or damaged cutters. Accessories must be rated for at least the speed recommended on the tool warning label. Wheels and other accessories running over rated speed can fly apart and cause injury. Do not operate the flexible shaft with a sharp bend.
- Page 18 Carefully handle both the tool and individual grinding wheels to avoid chipping or cracking. Install a new wheel if tool is dropped while grinding. Do not use a wheel that may be damaged. Fragments from a wheel that bursts during operation will fly away at great velocity possibly striking you or bystanders.
- Page 19 When using the steel saws, cut off wheels, high speed cutters or tungsten carbide cutters, always have the work securely clamped. Never attempt to hold the work with one hand while using any of these accessories. The reason is that these wheels will grab if they become slight ly canted in the groove, and can kick back causing loss of control resulting in serious in jury.
-
Page 20: Specific Safety Rules
Symbols IMPORTANT: Some of the following symbols may be used on your tool. V…………………………volts A…………………………amperes Hz……………………….hertz ~…………………….….alternating current …/m………………..revolutions per minute .....class II construction (double insulated) Kg………………………..kilograms ………………………..No load speed ……………….…..Conforms to European Harmonised New Approach Directives. DC ………………..…….Direct Current Specific Safety Rules 1) Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring. - Page 21 Functional Description (Fig.1) WARNING: Disconnect the plug from the power source before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally. Application This rotary tool can be used for drilling, grinding, sanding and polishing, as well as engraving, cutting and removing rust in tight spaces or inaccessible places.
- Page 22 Accessories CAUTION: Use only accessories or attachments recommended for use with your Terratek tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
- Page 23 We ACL Group (Intl.) Ltd, England DN6 8LZ declare that the Mini Grinder has been manufactured according to our full quality assurance procedures. The declaration is to certify that it conforms to CE, EMC, LVD, MD and RoHS directives: EN55014-1: 2006/ + A1:2009 EN55014-2: 1997/ + A1: 2001/ + A2:2008 EN61000-3-2: 2006/ + A1: 2009/ + A2:2009 EN61000-3-3: 2008...
-
Page 24: Environmental Protection
Environmental Protection RECYCLING: WASTE ELECTRICAL PRODUCTS SHOULD NOT BE DISPOSED OF WITH HOUSEHOLD WASTE. PLEASE RECYCLE WHERE FACILITIES EXIST. CHECK WITH YOUR LOCAL AUTHORITY OR RETAILER FOR RECYCLING ADVICE. Please read the following carefully ACL Group (Intl) Ltd. and/or it’s distributor has provided the parts list and assembly diagram as a reference tool only.
