3D Perception COMPACTVIEW HMR-15 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

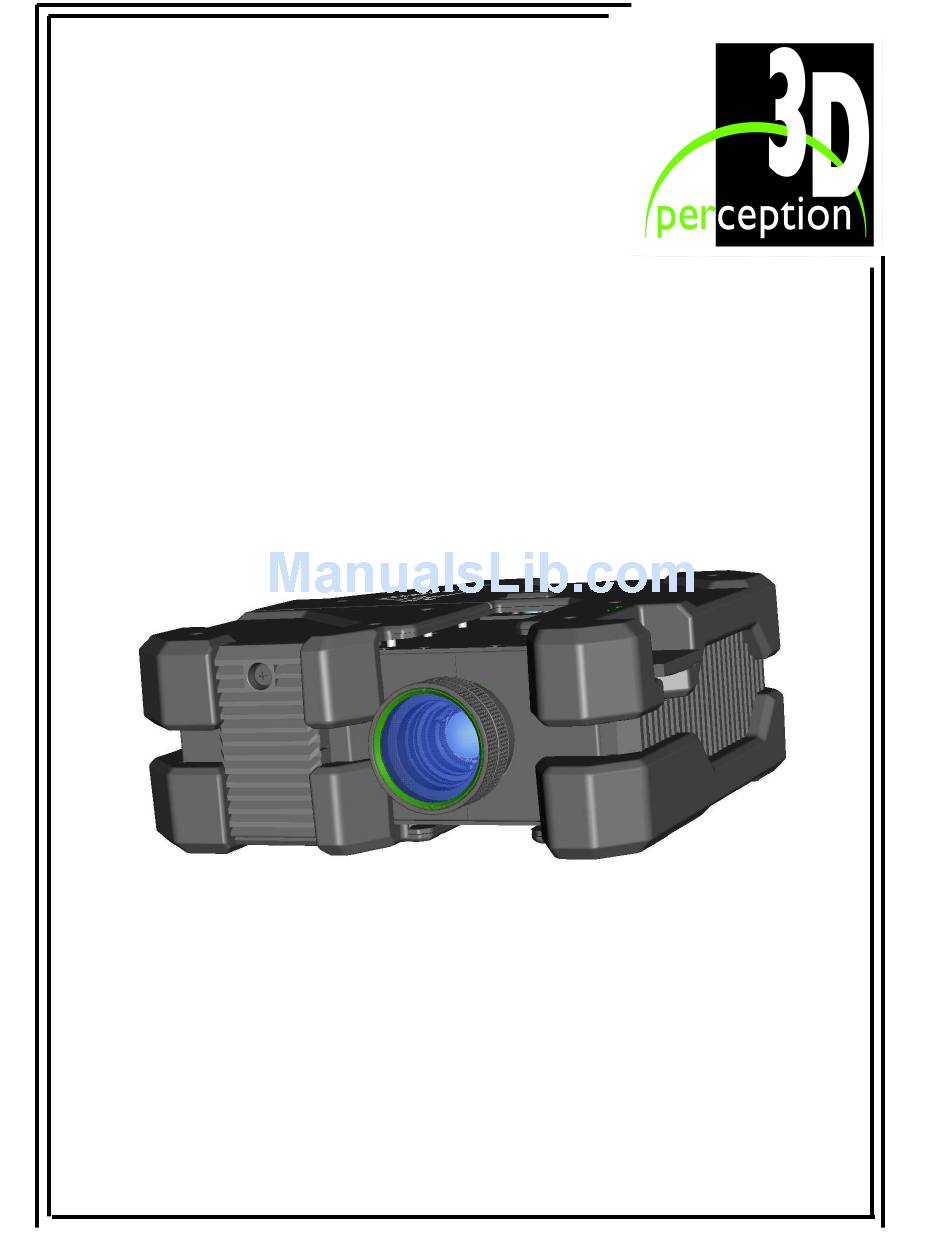

15
C
V
HMR-
OMPACT
IEW
U
M
SER
ANUAL
© 2005 3D perception AS All rights reserved.
The copyright of this document is the property of 3D perception AS. The document is supplied on the
express terms that it is to be treated as confidential. No part of this document may be reproduced or
transmitted in any form or by any means, electronic or mechanical for any purpose, without the
express written permission of 3D perception AS. The information in this document is subject to
change without notice and is provided 'AS IS'.

Advertisement

Table of Contents
loading

Related Manuals for 3D Perception COMPACTVIEW HMR-15

Summary of Contents for 3D Perception COMPACTVIEW HMR-15

  • Page 1 © 2005 3D perception AS All rights reserved. The copyright of this document is the property of 3D perception AS. The document is supplied on the express terms that it is to be treated as confidential. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical for any purpose, without the express written permission of 3D perception AS.
  • Page 2 3D perception HMR-15 OMPACT Revision 1 User Manual OCUMENT TATUS Revision Month Year Paragraph(s) Prepared by Description of Change Jul 2005 A F Rotheram Initial release August 2005 A F Rotheram Set security key...

  • Page 3: Table Of Contents

    3D perception HMR-15 OMPACT Revision 1 User Manual ABLE OF ONTENTS .........................1 EFORE YOU START Projector pack .......................1 Accessories ........................1 ........................2 NTRODUCTION Optional Modules ......................2 Lens ..........................3 ............................4 AFETY Safety ..........................4 Safety Instructions ......................4 ......................5 EFORE UP AND Overview ........................5 Rear Connector Panel ....................6...
  • Page 4 3D perception HMR-15 OMPACT Revision 1 User Manual Projector On/Off ......................17 Signal Source ......................17 ........................18 AINTENANCE 10. L ......................19 EPLACEMENT 10.1 Remove old lamp......................19 10.2 Insert New Lamp ......................20 11. S ......................21 ERVICE NFORMATION 12. T ........................22 ECHNICAL 12.1 Warping and edge blending specifications ..............22 12.2...

  • Page 5: Before You Start

    3D perception HMR-15 OMPACT Revision 1 User Manual EFORE YOU START Thank you for choosing a 3D perception C HMR-15 projector OMPACT Projector pack Please take a few minutes to ensure that your C HMR-15 projector pack contains OMPACT the following items.

  • Page 6: Introduction

    This user guide contains important information about safety precautions and the set-up and use of the projector. Please read the manual carefully before you operate the projector. Optional Modules Optional modules within CompactView HMR-15 offer the following unique functions: Module ID Functionality KK100...

  • Page 7: Lens

    3D perception HMR-15 OMPACT Revision 1 User Manual Lens 3 lens options are available Lens ID Specifications PL115 1.15 – 1.34: 1 wide zoom lens PL140 1.38 – 1.61:1 intermediate zoom lens PL180 1.8 – 2.1:1 long throw zoom lens NOTE: The specifications and functionality of the product, as detailed in this manual, may change without prior notice.

  • Page 8: Safety

    3D perception HMR-15 OMPACT Revision 1 User Manual AFETY Safety This device complies with relevant safety regulations for data processing equipment for use in an office environment. Before using the projector for the first time, please read the safety instructions thoroughly.

  • Page 9: Before Set Up And Use

    3D perception HMR-15 OMPACT Revision 1 User Manual EFORE UP AND Be sure you have read the Safety Instructions in chapter 3 before proceeding with the set-up and use of the C HMR-15 projector. OMPACT Unpack the supplied parts and familiarize yourself with the various components.

  • Page 10: Rear Connector Panel

    3D perception HMR-15 OMPACT Revision 1 User Manual Rear Connector Panel Analogue RGB In - Red VGA – Analogue RGB In. The standard analogue computer graphics interface Analogue RGB In - Green DVI - Digital RGB. For low noise computer and Analogue RGB In - Blue video image..

  • Page 11: Set - Up

    3D perception HMR-15 OMPACT Revision 1 User Manual The first time the C OMPACT HMR-15 is switched on, a message will appear on the screen requesting a valid license key (activation code) for the projector. The message box will also indicate the following details...

  • Page 12: Connecting Multiple Projectors

    3D perception HMR-15 OMPACT Revision 1 User Manual or Wireless LAN (C) 5.2.1 Connecting multiple projectors Multiple projectors may be connected together in a ‘daisy chain’ by one of the following methods:- By cable By LAN By WLAN (Optional) 5.2.1.1...

  • Page 13: Set Functionality Codes For Projectors

    3D perception HMR-15 OMPACT Revision 1 User Manual 5.2.1.2 By LAN Connect all projectors via the LAN port (C) to the same LAN as the control PC (running CompactDesigner or CompactControl) is connected. 5.2.1.3 By WLAN (Optional) Only applicable if Optional module...
  • Page 14 Maintenance under the main File menu Step 2 On the Projector maintenance dialogue box click right on the desired projector and select Properties from the drop-down menu. NOTE: The address of all CompactView HMR-15 projectors will commence with the characters CH.
  • Page 15 3D perception HMR-15 OMPACT Revision 1 User Manual Step 3 If the IP address and Subnet mask are set automatically (default option), the DHCP standard protocol will be used to assign the address. If the IP address and Subnet mask are to be set manually, it is recommended that users consult with their own network administrator.
  • Page 16 Enter the unique Security key for the projector. (The security key for each projector can be obtained by e-mail from 3D perception. Send the projector address [CH….] of each projector to any of the sales staff, support staff or to info@3d-perception.com...

  • Page 17: Set Computer Source For Projectors

    3D perception HMR-15 OMPACT Revision 1 User Manual Step 7 CW (Colour Wheel) This dialogue page will indicate the colour wheel index delay. NOTE: 1. Changing the colour wheel index delay will not improve or adjust the colour on the projector.

  • Page 18: Focus And Zoom

    3D perception HMR-15 OMPACT Revision 1 User Manual OCUS AND Focus Turn the Focus ring (A) on the projection lens to get a correctly focused image. Zoom Turn the Zoom ring (B) on the projection lens to zoom In and Out. (This is only available on the optional intermittent and long throw lens.)

  • Page 19: Mounting The Projector

    The projector can be ceiling mounted using any approved UL tested/listed ceiling mount fixture with a minimum weight capacity of 12 kg (26 lbs). The ceiling mount obtainable through 3D perception (as illustrated below) is only approved for HMR-15 projectors.

  • Page 20: To A Tabletop

    3D perception HMR-15 OMPACT Revision 1 User Manual To a Tabletop Although the projector is not equipped with adjustable legs it may be sited directly onto a tabletop, however, this is only recommended for temporary use or for demonstration purposes.

  • Page 21: Using The Projector

    3D perception HMR-15 OMPACT Revision 1 User Manual SING THE ROJECTOR After set-up, switch on all equipment. Projector On/Off To switch the projector On, firmly press the POWER button on the top of the projector (A) or the remote control button (B) on the Control dialogue page in CompactControl.

  • Page 22: Maintenance

    3D perception HMR-15 OMPACT Revision 1 User Manual AINTENANCE The projector may from time to time require cleaning. Only the exterior of the projector may be cleaned. Use a damp cloth. Make sure no liquids enter the inside of the projector.

  • Page 23: Lamp Replacement

    3D perception HMR-15 OMPACT Revision 1 User Manual EPLACEMENT Always replace the lamp with the same type and rating. 10.1 Remove old lamp Remove the cover of the lamp housing (A) by undoing the fixing screw (B) and sliding the cover forward..

  • Page 24: Insert New Lamp

    3D perception HMR-15 OMPACT Revision 1 User Manual 10.2 Insert New Lamp Replace the lamp unit (E). Re-connect the wiring element (D). Fasten the locking screw (C) Slide the cover of the housing unit (A) back into position. Re-fasten the fixing screw (B) NOTE: It is most important to ensure that the cover of the lamp housing is correctly sited back in its slot.

  • Page 25: Service Information

    3D perception HMR-15 OMPACT Revision 1 User Manual ERVICE NFORMATION This product contains no user-serviceable parts. If the product fails to function as expected complete the following steps: Check that all connections are properly made, and that the power cord is properly connected.

  • Page 26: Technical Data

    3D perception HMR-15 OMPACT Revision 1 User Manual ECHNICAL 12.1 Warping and edge blending specifications Warping Non-linear image mapping from 50% to 200% Processing latency from 50 µs to 12 ms dependent on mapping level Total latency 250 line period...

  • Page 27: Projector Specifications

    3D perception HMR-15 OMPACT Revision 1 User Manual 12.2 Projector specifications Resolution (native) 1024 x 768 Technology DDR – Double Data Rate DMD Module by Texas Instruments Compatibility For PC’s, Macs, SGI and other workstations Computer interface UXGA, SXGA+, SXGA, XGA and SVGA...

  • Page 28: Imited Arranty , 'Fcc Statement And Rademarks Opyright

    The warranty period means the 24-month period from the date of purchase of a C OMPACT HMR-15 projector. During the warranty period, 3D perception will, at its option and in its sole discretion, repair or replace defective parts, including replacement of the entire C HMR-15 projector, at OMPACT no additional charge to the Customer.
  • Page 29 N-1373 Asker Norway In the case of any such claim, inspection shall be promptly arranged with 3D perception or it’s authorised personnel, and where appropriate, representatives of the carrier. Any other claim or action respecting the condition or conformity of a C...

  • Page 30: Ontact Us

    3D perception HMR-15 OMPACT Revision 1 User Manual ONTACT US Head Office 3D PERCEPTION AS Solbråveien 41 P. O. Box 455 N1373 Asker Norway Tel: +47 66 98 70 70 Fax: +47 66 98 70 71 Support desk: +47 66 98 70 90 e-mail (sales): info@3d-perception.com...
