3D Perception COMPACTVIEW SX+40 User Manual

Compactview sx+40
Hide thumbs
Table of Contents

Advertisement

Quick Links

C
V
SX+40
OMPACT
IEW
U
M
SER
ANUAL

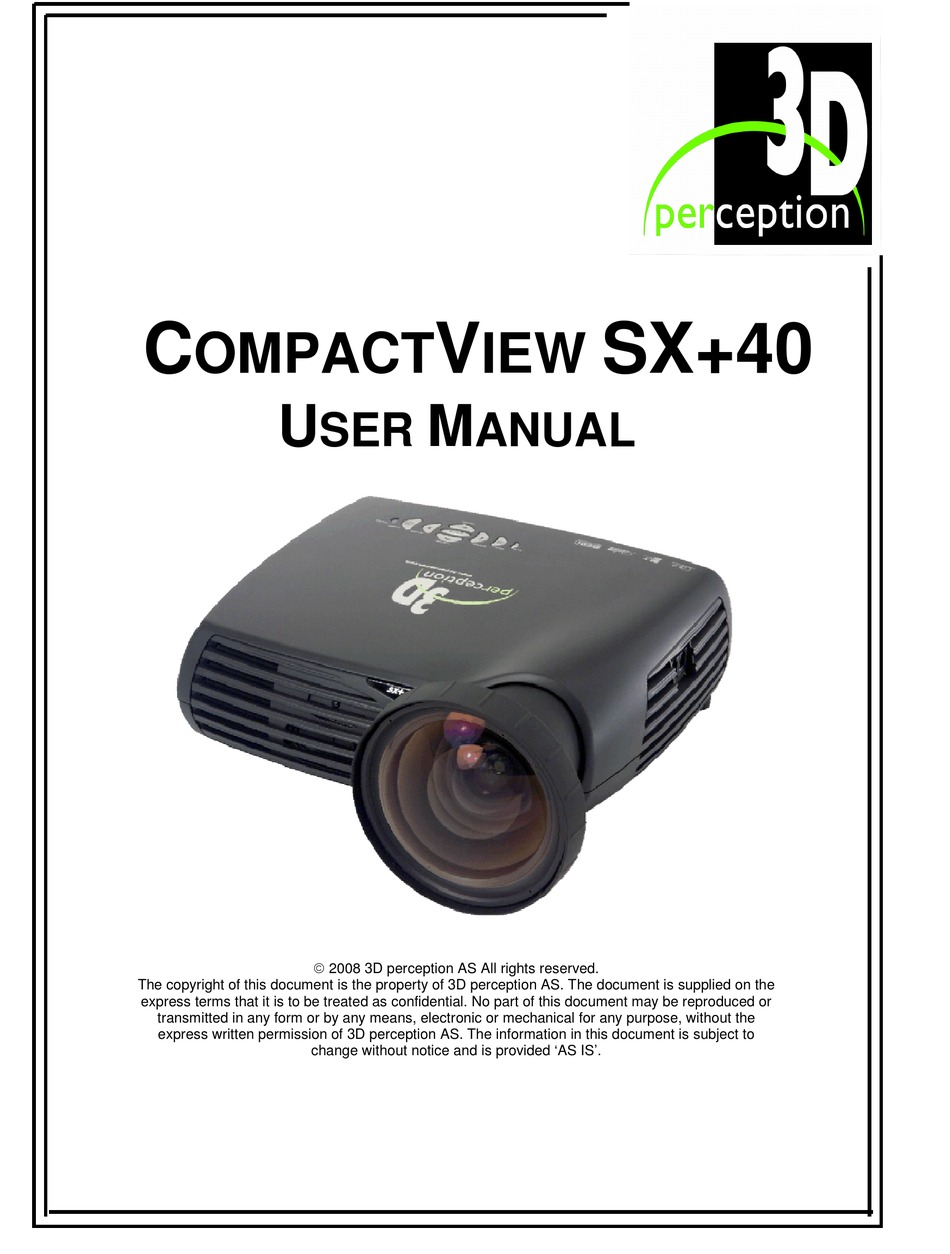

 2008 3D perception AS All rights reserved.
The copyright of this document is the property of 3D perception AS. The document is supplied on the
express terms that it is to be treated as confidential. No part of this document may be reproduced or
transmitted in any form or by any means, electronic or mechanical for any purpose, without the
express written permission of 3D perception AS. The information in this document is subject to
change without notice and is provided 'AS IS'.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMPACTVIEW SX+40 and is the answer not in the manual?

Questions and answers

Related Manuals for 3D Perception COMPACTVIEW SX+40

Summary of Contents for 3D Perception COMPACTVIEW SX+40

  • Page 1  2008 3D perception AS All rights reserved. The copyright of this document is the property of 3D perception AS. The document is supplied on the express terms that it is to be treated as confidential. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical for any purpose, without the express written permission of 3D perception AS.
  • Page 2 3D perception SX+40 OMPACT User Manual OCUMENT TATUS Revision Month Year Paragraph(s) Prepared by Description of Change February 2008 D Kennedy Initial Release...

  • Page 3: Table Of Contents

    3D perception SX+40 OMPACT User Manual ABLE OF ONTENTS ......................1 EFORE YOU START Accessories.......................1 Cables........................1 Other accessories ......................1 ........................2 CCESSORIES ........................3 NTRODUCTION & W ......................4 AFETY ARNINGS Safety ........................4 Warnings ........................4 Mercury Vapour .......................5 Remote Control Warning ..................6 ....................7 EFORE UP AND ..........................8...
  • Page 4 3D perception SX+40 OMPACT User Manual 12.2 Connecting the CompactView SX+40E ..............17 13. F ......................18 OCUS AND 13.1 Focus ........................18 13.2 Zoom ........................18 14. M ....................19 OUNTING THE ROJECTOR 14.1 To a Ceiling Mount....................19 14.2...
  • Page 5 3D perception SX+40 OMPACT User Manual 22. P ........................37 ARTS LIST 22.1 Main products......................37 22.2 Spare parts......................37 23. L , ‘FCC S ’ ‘T ’....... 38 IMITED ARRANTY TATEMENT RADEMARKS OPYRIGHT 24. C ........................40 ONTACT US...

  • Page 6: Before You Start

    3D perception SX+40 OMPACT User Manual EFORE YOU START Thank you for choosing a 3D perception C SX+40 projector. OMPACT Accessories Please take a few minutes to ensure that your C SX+40 projector pack contains all OMPACT the necessary parts as listed on the Accessories Page.

  • Page 7: Accessories

    3D perception SX+40 OMPACT User Manual CCESSORIES SX+40 P OMPACT ROJECTOR EMOTE ONTROL AND BATTERIES SX+40I ODELS SX+40E ABLE COVER IRFLOW COVER User Manual Cables VGA male Blue - VGA male Blue, 2m DVI-I male White - DVI–I male White, 2m A/V Cable 3 x Phono –...

  • Page 8: Introduction

    3D perception SX+40 OMPACT User Manual NTRODUCTION The C SX+40 projector is the ultimate in high-resolution projectors when projection OMPACT on to flat, curved or double curved screens with multiple projectors is the requirement. The C SX+40 projector is compatible with most data and video sources, both...

  • Page 9: Safety & Warnings

    3D perception SX+40 OMPACT User Manual & W AFETY ARNINGS This user manual contains important information regarding safety precautions and the set-up and use of the projector. Please read the manual carefully before you operate the projector. Safety This device complies with relevant safety regulations for data processing equipment for use in an office environment.

  • Page 10: Mercury Vapour

    3D perception SX+40 OMPACT User Manual The projector is designed for indoor use only. Never operate the unit outdoors. Do not operate the projector outside its temperature and humidity specifications, as this may result in overheating and malfunctioning. Operating the projector in a dusty environment may reduce performance or damage projector.

  • Page 11: Remote Control Warning

    3D perception SX+40 OMPACT User Manual Acute exposure to high concentrations of mercury vapor can cause conditions such as lung and airway irritation, tightness in the chest, a burning sensation in the lungs, coughing, nausea, vomiting and diarrhea. Children and fetuses are particularly sensitive to the harmful effects of metallic mercury to the nervous system.

  • Page 12: Efore Et Up And Se

    3D perception SX+40 OMPACT User Manual EFORE UP AND Be sure you have read the Safety and Warnings chapter in this manual before proceeding with the set-up and use of the C SX+40 projector. OMPACT Unpack the supplied parts and familiarize yourself with the various components.

  • Page 13: Overview

    3D perception SX+40 OMPACT User Manual VERVIEW Focus ring Lamp house Zoom ring (optional lens) Adjustable foot IR sensor Foot release Ventilation Security lock Keypad Ceiling Mount Connector panel Control Chain In (only on I models) Power connector Control Chain Out (only on I models)

  • Page 14: Keypad

    3D perception SX+40 OMPACT User Manual EYPAD POWER Switch the projector on and off. AUTO Automatically detect and synchronize to the signal source selected. MENU Activate the menu system. Use the four arrow keys to navigate and to activate. SELECT/KEYSTONE Select menu option when the menu system is activated.

  • Page 15: Status

    3D perception SX+40 OMPACT User Manual TATUS GREEN LIGHT A permanent GREEN light indicates the projector is turned on YELLOW LIGHT A permanent YELLOW light indicates the projector is either switched off or is in stand-by mode. YELLOW LIGHT FLASHING A flashing yellow light indicates wait.

  • Page 16: Remote Control

    3D perception SX+40 OMPACT User Manual EMOTE ONTROL The remote control allows flexible access to the projector settings, either through direct keys, or through the menu system. The remote control can be used to emulate the computer mouse through the USB interface.
  • Page 17 3D perception SX+40 OMPACT User Manual BRIGHT Adjusts image brightness from dark to bright CONTRAST Adjusts the image contrast from soft to hard COLOR Adjusts the color of the image from pale to saturated VOLUME Adjusts the sound volume ASPECT...

  • Page 18: Connector Panel

    3D perception SX+40 OMPACT User Manual ONNECTOR ANEL A. Component video In (YPbPr). Used for H. RS 232 control Out. The secondary output high quality video reproduction. connector allows for daisy-chaining, enabling both individual and global control and B. Super video In.

  • Page 19: Set - Up

    3D perception SX+40 OMPACT User Manual Before any set-up, switch off all equipment. 11.1 Set-up computer The projector may be connected to up to three computer sources simultaneously, using the VGA and DVI inputs. The VGA interface is analog and may cause some noise in the projected image, depending on the signal quality from the VGA graphics card in the computer and cabling.

  • Page 20: Set-Up Video

    3D perception SX+40 OMPACT User Manual 11.2 Set-up Video Three video sources may be connected, using the YPbPr (component), S-VIDEO (super video) and VIDEO (composite video) inputs. Component video will display more detailed images. Composite video yields images with less detail.

  • Page 21: Gcm - Geometry Correction Module

    For full details on achieving the effects of these features please read the CompactDesigner/CompactControl User Manual. The CompactView SX+40-I is delivered with a GCM card inside it. The CompactView SX+40-E does not have a GCM card inside it, it has to been connected to a GCM card in a CompactUTM.

  • Page 22: Connecting The Compactview Sx+40E

    3D perception SX+40 OMPACT User Manual 12.2 Connecting the CompactView SX+40 The CompactView SX+40-E must be connected to a channel in a CompactUTM. For full details please see the Compact UTM basic/Compact UTM zero User Manual.

  • Page 23: Focus And Zoom

    3D perception SX+40 OMPACT User Manual OCUS AND 13.1 Focus Turn the Focus ring (A) on the projection lens to get a correctly focused image. 13.2 Zoom Turn the Zoom ring (B) on the projection lens to zoom In and Out. (This is only available on the optional zoom lens.)

  • Page 24: Mounting The Projector

    The projector can be ceiling mounted using any approved UL tested/listed ceiling mount fixture with a minimum weight capacity of 12 kg (26 lbs). The ceiling mount obtainable through 3D perception (as illustrated below) is only approved for projectors. OMPACT For the ceiling mount use M4 screws provided.

  • Page 25: To A Tabletop

    3D perception SX+40 OMPACT User Manual 14.2 To a Tabletop The projector may be mounted or sited directly onto a tabletop. To adjust the projected image to the desired height on the screen, eject the front foot (C) by pressing the release button (D), and adjust the angle to the right position.

  • Page 26: Using The Projector

    3D perception SX+40 OMPACT User Manual SING THE ROJECTOR After set-up, switch on all equipment. To switch the projector on, firmly press the POWER button on the keypad or the remote control. The STATUS indicator will turn from yellow to green when the projector is switched on.

  • Page 27: Menu System

    3D perception SX+40 OMPACT User Manual YSTEM The menu system gives access to a multitude of image and system controls. The menu system is structured through a top menu with several sub menus. The sub menus will vary depending on the actual source selected.

  • Page 28: Picture Sub-Menu

    3D perception SX+40 OMPACT User Manual 16.1 Picture Sub-menu brightness S-VIDEO/COMPOSITE VIDEO Adjusts the image brightness. A higher setting will increase the brightness a lower setting will decrease the brightness of the image. contrast Controls the contrast of the image. A higher setting...

  • Page 29: Dynamic Sub-Menu

    3D perception SX+40 OMPACT User Manual 16.2 Dynamic Sub-menu white boost FOR ALL Increases the white level of the image for enhanced contrast gamma The source image is adapted to characteristics typical to certain applications. This enables an optimized display of images, depending on whether the source is video, computer etc.

  • Page 30: Advanced Sub-Menu

    3D perception SX+40 OMPACT User Manual 16.3 Advanced Sub-menu h position S-VIDEO/COMPOSITE VIDEO Shifts the image sideways. v position Shifts the image up and down. phase Adjust for stable image. A jittery image may appear with certain VGA sources. You may also press the AUTO button on the keypad or remote control to optimize.

  • Page 31: Set Up Sub-Menu

    3D perception SX+40 OMPACT User Manual 16.4 Set Up Sub-menu keystone V FOR ALL Adjust vertical keystone correction. Compensates for the geometrical distortion of the projected image resulting from tilting the projector to shoot higher up on the wall. keystone H Adjust horizontal keystone correction.

  • Page 32: Utilities Sub-Menu

    3D perception SX+40 OMPACT User Manual 16.5 Utilities Sub-menu information FOR ALL Displays information about the source and projector status Turn the On Screen Display on (display) or off (hide) during source scan. OSD timeout Defines how long OSD is displayed after last key action before it disappears from the screen.

  • Page 33: Control Sub-Menu

    The projector can be controlled by only one of the modes at a time. When using the CompactView SX+40-I the mode must be set to RIMI (Rich Media Interface). When a GCM has been installed, the projector will detect its presence after a power cycle and select RIMI.

  • Page 34: Maintenance

    3D perception SX+40 OMPACT User Manual AINTENANCE The projector may from time to time require cleaning. Never open the projector, as this will void any warranties. Refer all service and repair work to qualified personnel. Only the exterior of the projector may be cleaned. Use a damp cloth. Make sure no liquids enter...

  • Page 35: Lamp Replacement

    3D perception SX+40 OMPACT User Manual EPLACEMENT The STATUS lamp on the keypad will turn red when the lamp life expires. In addition, a message will appear on the screen; “LAMP LIFE TIME HAS EXPIRED! Please change lamp.” 18.1 Remove old lamp Change the lamp when its lifetime expires.

  • Page 36: Insert New Lamp

    3D perception SX+40 OMPACT User Manual Pull the handle (D). Remove the lamp house (E). 18.2 Insert New Lamp Replace the lamp house (E) Fold the handle (D) back in to place. Tighten the 3 screws (C)
  • Page 37 3D perception SX+40 OMPACT User Manual Replace the lamp cover (B) Tighten the screw (A). In the “utilities” sub menu, reset the lamp timer. After resetting the lamp timer to clear the warning you must initiate a power cycle.

  • Page 38: Service Information

    3D perception SX+40 OMPACT User Manual ERVICE NFORMATION This product contains no user-serviceable parts. If the product fails to function as expected, first check that all connections are properly made, and that the power cord is properly connected. Check that the projector and the video and computer sources are all switched on.

  • Page 39: Technical Data

    3D perception SX+40 OMPACT User Manual ECHNICAL 20.1 Projector Specifications Resolution 1400 x 1050 (native) SXGA+ Display technology Single chip DLP™ technology by Texas Instruments® Display device LVDS DMD™ with DarkChip2™ technology Computer Compatibility UXGA, SXGA+, SXGA, XGA, SVGA, VGA...

  • Page 40: Gcm Specifications

    20-90% RH, non-condensing Humidity storage 10-95% RH, non-condensing 20.2 GCM Specifications These specifications apply to the CompactView SX+40-I only Warping Non-linear image mapping from 50% to 200 % Total latency typically 250 line period Automatic and manual options Up to 100 geometrical control points (compliant with curved...

  • Page 41: Covers

    3D perception SX+40 OMPACT User Manual OVERS 21.1 Cable cover Loosen the rear adjustable feet by unscrewing them. Align the vertical hooks on the cover with the guides on the rear of the projector. Snap the cover into place with the lower guides clamping the rear feet.

  • Page 42: Parts List

    3D perception SX+40 OMPACT User Manual ARTS LIST 22.1 Main products Product name Product number CompactView SX+40-E 313-SX+40-E CompactView SX+40-I 313-SX+40-I 22.2 Spare parts Product name Product number Lamp Replacement Kit 300 W 313-400-00...

  • Page 43: Limited Warranty , 'Fcc Statement

    The warranty period means the 12-month period from the date of purchase of a C OMPACT SX+40 projector. During the warranty period, 3D perception will, at its option and in its sole discretion, repair or replace defective parts, including replacement of the entire C SX+40 projector, at OMPACT no additional charge to the Customer.
  • Page 44 N-1373 Asker Norway In the case of any such claim, inspection shall be promptly arranged with 3D perception or it’s authorised personnel, and where appropriate, representatives of the carrier. Any other claim or action respecting the condition or conformity of a C...

  • Page 45: Ontact Us

    +47 66 98 70 70 Fax: +47 66 98 70 71 Support desk: +47 66 98 70 90 info@3d-perception.com support@3d-perception.com www.3d-perception.com Regional offices USA 3D perception Inc 1277 N. Semoran Blvd. Suite 117 Orlando, Florida 32807 Tel: +1 321 235 7999 Fax: +1 321 235 7992 paal.s@3d-perception.com...

Table of Contents
