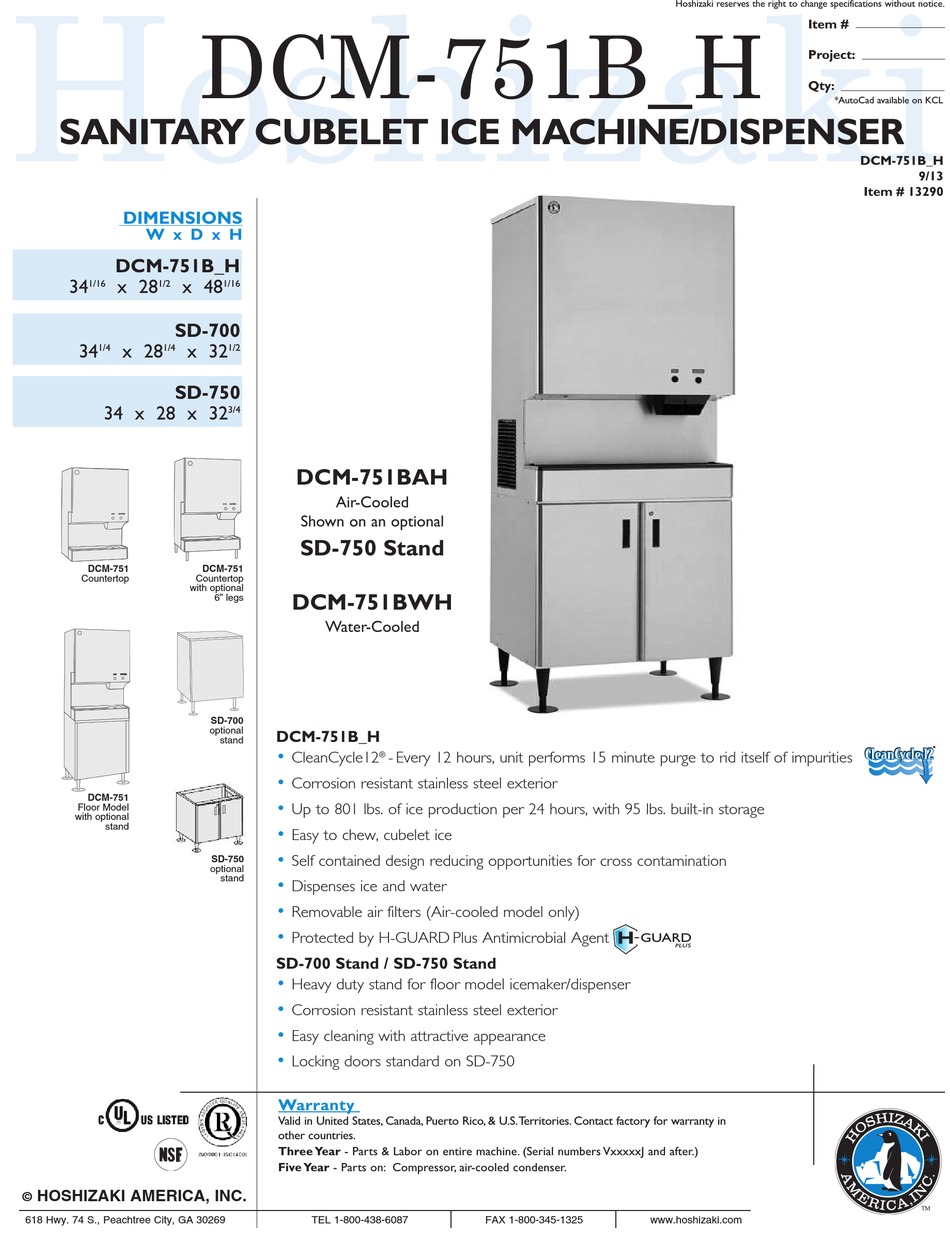

Hoshizaki DCM-751BAH Dimensions And Specifications

Hoshizaki
SANITARY CUBELET ICE MACHINE/DISPENSER
DIMENSIONS
W x D x H
DCM-751B_H
34 x 28 x 48
1/16 1/2
SD-700
34 x 28 x 32
1/4 1/4
SD-750
34 x 28 x 32
ICE WATER
DCM-751
Countertop
IC ICE E WATER WA TER
DCM-751
Floor Model
with optional
stand
HOSHIZAKI AMERICA, INC.
©
618 Hwy. 74 S., Peachtree City, GA 30269
DCM 751B_H
1/16
1/2
3/4
DCM-751BAH
Air-Cooled
Shown on an optional
IC E WA TER
SD-750 Stand
DCM-751
DCM-751BWH
Countertop
with optional
6" legs
Water-Cooled
DCM-751B_H
SD-700
optional
stand
•
CleanCycle12
•
Corrosion resistant stainless steel exterior
•
Up to 801 lbs. of ice production per 24 hours, with 95 lbs. built-in storage
•
Easy to chew, cubelet ice
•
Self contained design reducing opportunities for cross contamination
SD-750
optional
stand
•
Dispenses ice and water
•
Removable air filters (Air-cooled model only)
•
Protected by H-GUARD Plus Antimicrobial Agent
SD-700 Stand / SD-750 Stand
•
Heavy duty stand for floor model icemaker/dispenser
•
Corrosion resistant stainless steel exterior
•
Easy cleaning with attractive appearance
•
Locking doors standard on SD-750
Warranty
Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in
other countries.
Three Year - Parts & Labor on entire machine. (Serial numbers VxxxxxJ and after.)
Five Year - Parts on: Compressor, air-cooled condenser.
TEL 1-800-438-6087
® - Every 12 hours, unit performs 15 minute purge to rid itself of impurities
FAX 1-800-345-1325
Hoshizaki reserves the right to change specifications without notice.
Item #
Project:
Qty:
www.hoshizaki.com
*AutoCad available on KCL
DCM-751B_H
9/13
Item # 13290
®
