Spotting Scope inStruction Manual

Model# : 846060/846060H

lit. #: 95-0087 / 06-10

Table of Contents

Need help?

Do you have a question about the 846060 and is the answer not in the manual?

Page 1 Spotting Scope inStruction Manual Model# : 846060/846060H lit. #: 95-0087 / 06-10...
Page 2: Setup And Operation

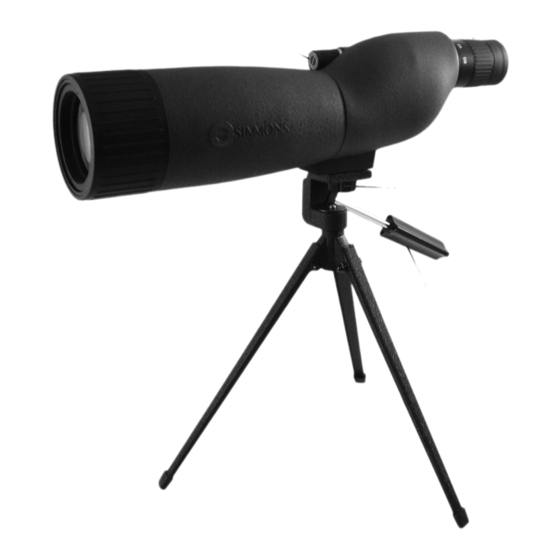

SETUP and OPERATION Congratulations on the purchase of your Simmons ® spotting scope, a versatile high-performance spotting scope offering a wide range of terrestrial viewing. Mounting tHe Scope on tHe tripoD First, fold open the mini tripod's legs and place it on a sturdy, level surface.
Page 3: Care And Cautions
CARE and CAUTIONS care The optics of your spotting scope are treated with special anti- reflective coatings for increased light transmission. As with any coated optics, special care must be taken in cleaning the lenses. Moisten the surface of the lens slightly and wipe dry using a circular motion starting at the center of the lens.
Page 4: Parts Guide
PARTS GUIDE Zoom Ring Collapsible Focus Knob Sunshade Mounting Screw Pan Arm...
Page 5: Specifications
SPECIFICATIONS Spec Model# 846060 Finish Rubber armor, matte Lens Coating Fully coated Prism Type BK-7 Prism System Porro Magnification Range 20-60x Objective Diameter 60 mm Exit Pupil (Lo Power) 3.0 mm Exit Pupil (Hi Power) 1.0 mm Field of View (Lo Power)
Page 6: Lifetime Limited Warranty
WARRANTY LIFETIME LIMITED WARRANTY Congratulations on the purchase of your new Simmons ® product. You have chosen one of the finest values available today. This product carries Simmons’ LIFETIME LIMITED WARRANTY. This product is warranted against original defects in material and/or workmanship...
Page 7 NOTES...
