Monitor S/PDIF-In to Analog Output
Checking this box causes all digital input coming in through
the S/PDIF input connector on the rear of the sound card to
be converted and played back through the analog channels of
the sound card.
Stereo Mix
Selecting Stereo Mix allows audio applications to record sound
being played back through the Wave component on the sound
card.

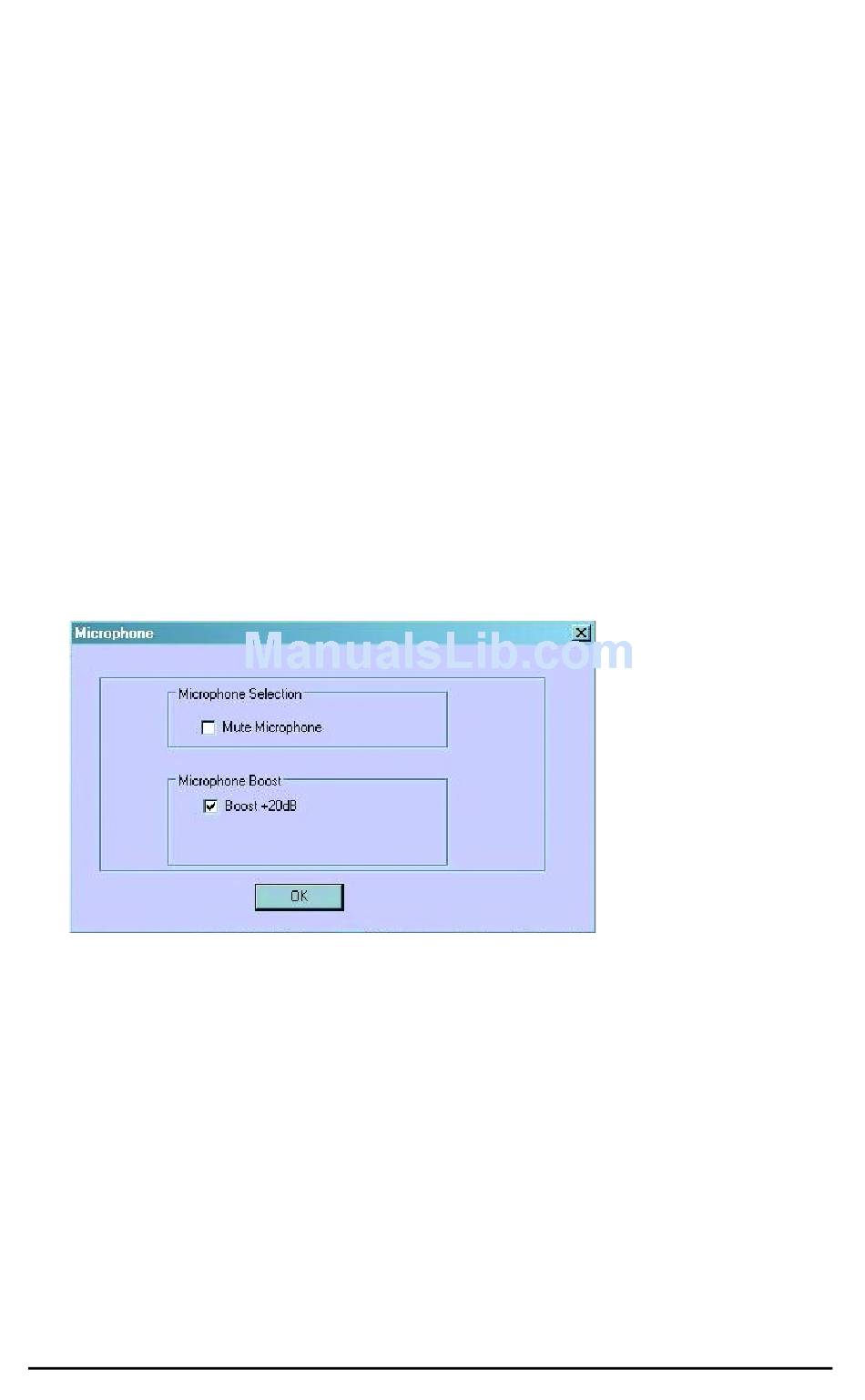

Microphone
Selecting Microphone allows audio applications to record sound
from a microphone connected to the MIC connector on the rear of
the sound card. The MIC connector is designated by a pink colored
connector.
Advanced Setting:
CD Player
Selecting the CD player allows for audio applications to record
from the analog CD input connector on the sound card.
NOTE: This connection is not normally used since most CD player
applications use the bus to transfer the CD audio digitally.
Aux
Selecting Aux allows for audio applications to record from the Aux
input connector on the sound card.
NOTE: This connector is not normally used by most applications.
PAGE 12
Continued on Next Page.
