SW Synth
The SW Synth slider controls the volume of any program
using the MIDI playback portion of the sound card.
This usually will be any file utilizing the .MID file extension or
games using MIDI playback for their back ground musical
score.
Microphone
The Microphone slider controls the volume of the microphone
component. If the volume is not loud enough please see the
advanced setting. The microphone connector is located on
the rear of the sound card and is designated by a pink colored
connector.

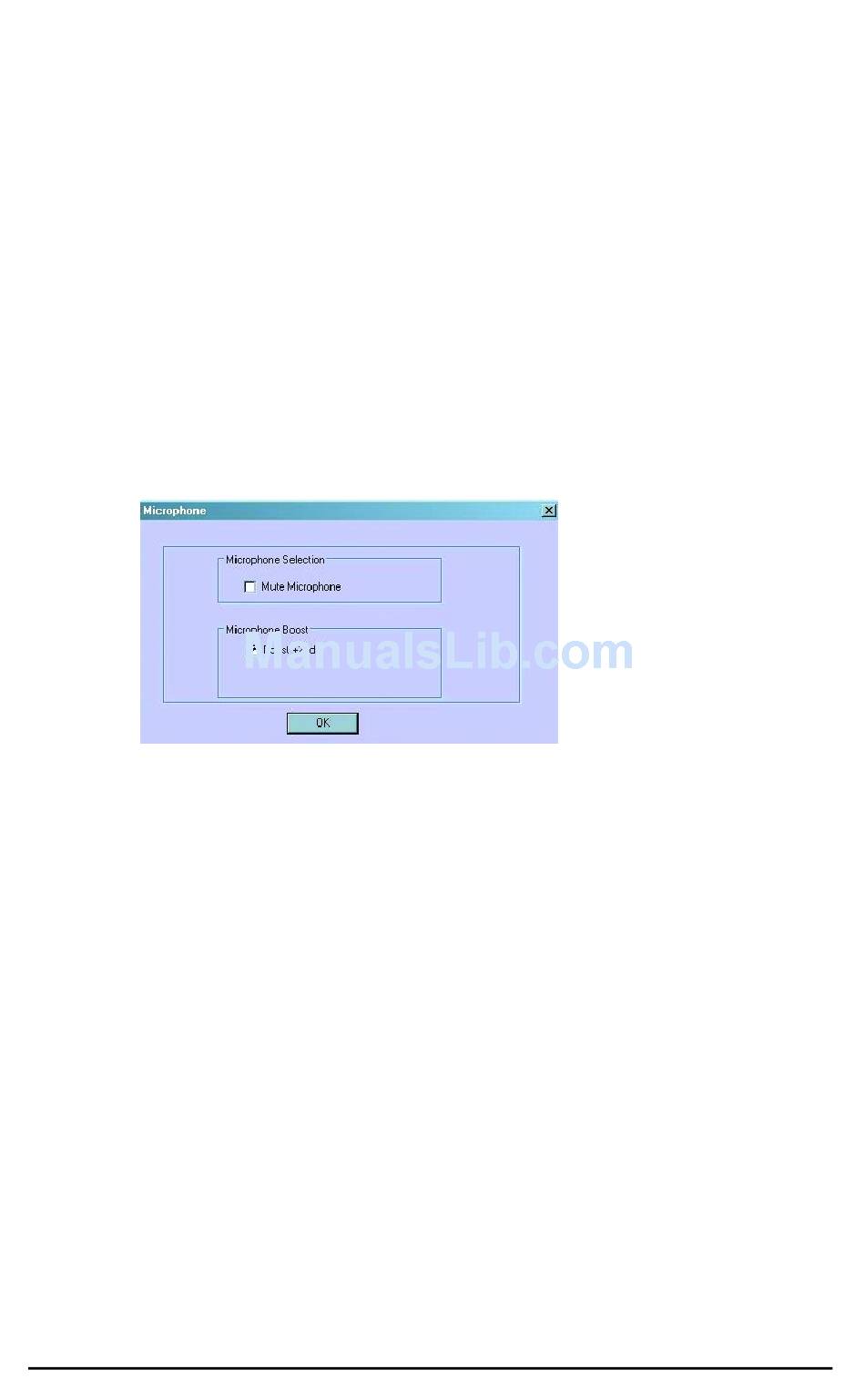

• Advanced Setting
The Advanced setting allows for mute and boost controls.
Check the Mute Microphone box if you do not want to hear
the Microphone through your sound system speakers. Check
the Boost +20dB box if the microphone volume is too low.
CD Player
The CD Player slider controls the volume of the CD player
component. This is only used if you have a CD audio cable
connected between a CD-ROM drive and the sound card.
Most systems no longer utilize this connection and instead the
Wave volume should be used to control the playback of an
audio CD.
Aux
The Aux slider controls the volume of the auxiliary input. This
input is a connector located on the top of the sound card cir-
cuit board. Most applications typically do not make use of this
connector.
PAGE 10 Continued on Next Page.
