Honeywell HD73PX Specifications

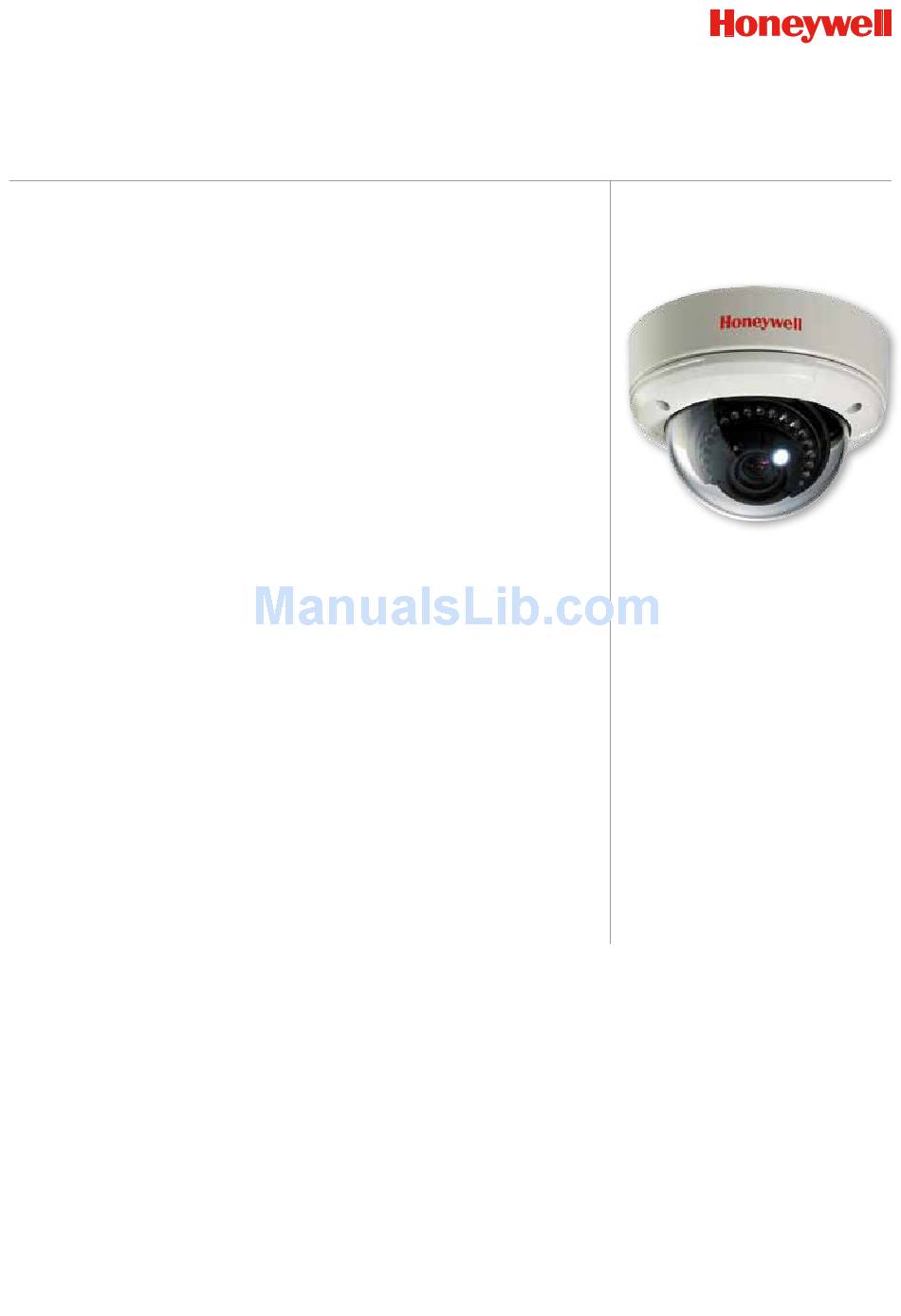

HD73PX
600 TVL TRUE DAY/NIGHT VANDAL DOME CAMERA WITH
VARI-FOCAL AUTO IRIS LENS AND INFRARED ILLUMINATORS
The Honeywell Performance Series includes a variety of indoor, outdoor and low light
cameras for virtually any installation. Ideal for a diverse range of applications, the
Performance Series includes a wide range of high performing IR bullet cameras and
mini-domes that are easy to install and even easier to use.
The HD73PX is a true day/night camera with 24 integrated LEDs that switches
from colour to black and white mode. A mechanical IR cut filter within the camera
switches, allowing perfect colour pictures by day and clear black and white images
at night. The HD73PX utilises smart infrared technology. Auto LED brightness
adjustment provides even distribution of the IR, eliminating excessive illumination
and washed out video. The HD73PX incorporates a 1/3" CCD that offers 600 TV
lines of crisp, clear horizontal resolution. The camera comes equipped with a built-in
3.8 – 9.5 mm Vari-focal Auto Iris lens for increased optical versatility and no focus
shift when the camera switches from day to night mode. The 3-D axis gimbal allows
versatile positioning and instant centering of the video image. In addition, the lens is
optically isolated from the LEDs by a 'boot' which eliminates internal IR glare.
The built-in breather vent effectively stops all humidity build-up to eliminate weather
related issues, loss of critical video, or possibly having to replace the camera.
The HD73PX installs quickly and easily. It comes standard with a two-conductor
pigtail that connects to the barrel connector so there is no need to cut wires during
installation. It also features a video out port for easy focus. The HD73PX is designed
for use in challenging environments. It is IP66 rated for outdoor installations, but can
also be installed indoors, mounted directly to a ceiling or wall.
Market Opportunities
The HD73PX is a cost effective surveillance solution for applications that experience
changing light conditions throughout the day and require extra illumination at night.
The HD73PX offers a simple yet solid design that provides optimum performance
for both indoor and outdoor applications including schools, colleges, universities,
hospitals, commercial sites, industrial parks, airports, gated entrances, foyers,
loading bays and driveways.
Features
• 1/3" Interline Transfer CCD
• Super high resolution colour: 600 TV lines
• True day/night with 24 LEDs (850 nm)
• Digital Noise Reduction technology for noise free images
• Smart IR for even distribution of the IR to prevent excessive
illumination
• Built-in 3.8 – 9.5 mm Vari-focal Auto Iris lens
• Privacy zone, mirror function
• User-friendly design for easy access and adjustment of
camera settings
• Vandal-proof and weather resistant housing: IP66 rating
• Total effectiveness in zero lux environments
• IR LED visible range of ~20 m, depending on scene
reflectance
• 3-D axis gimbal
• Video out port for set-up
• Two-conductor pigtail is standard for connection to barrel
connector
• Built-in breather vent stops humidity build-up
• 12 VDC input
