Performance Series HQA HD72HD4
4 MP IR Mini Dome Camera
4.33" (109.9 mm)
WARNING
This device is configured for 12 V DC operation. Do not connect to a higher
voltage. Use only with NRTL-approved Class 2 power supplies.
WARNING
IR emitted from this product. Do not view directly with optical instruments.
Do not stare directly into the lamp at a distance of less than 3.3 ft (1 m).
CAUTION
Class 1 LED product. Invisible LED radiation (850 nm). Avoid exposure to beam.
Important Safeguards
• Read and keep these instructions.
• Do not aim the camera toward a bright light source for extended periods to prevent damage to the imager.
Avoid operating the unit under or close to unstable light sources or close to fluorescent lamps or objects
reflecting light.
• Do not touch the camera lens.
• Do not drop the camera or subject it to physical shock.
• Do not use a strong or abrasive detergent when cleaning the camera.
• Avoid operating or storing the unit in extremely humid, dusty, or environments where the operating
temperature is outside the recommended range of –22°F to 140°F (–30°C to 60°C).
Quick Installation Guide
Ø4.33" (109.9 mm)
Ø3.87" (98.2 mm)
Document 800-22733 – Rev A – 11/2016
Thank you for purchasing a Honeywell
Performance Series HQA HD72HD4 camera.
3 - Ø0.19" (4.7 mm)
Follow the instructions in this guide to install and
set up your camera.
Cautions and Warnings
Before You Begin
1
Before you begin, check that you have received all of the parts listed below. If any parts are missing or damaged,
contact your dealer immediately.
• Camera
• Quick Installation Guide
• Mounting template sticker
Tools needed (not supplied):
• Cordless drill
1

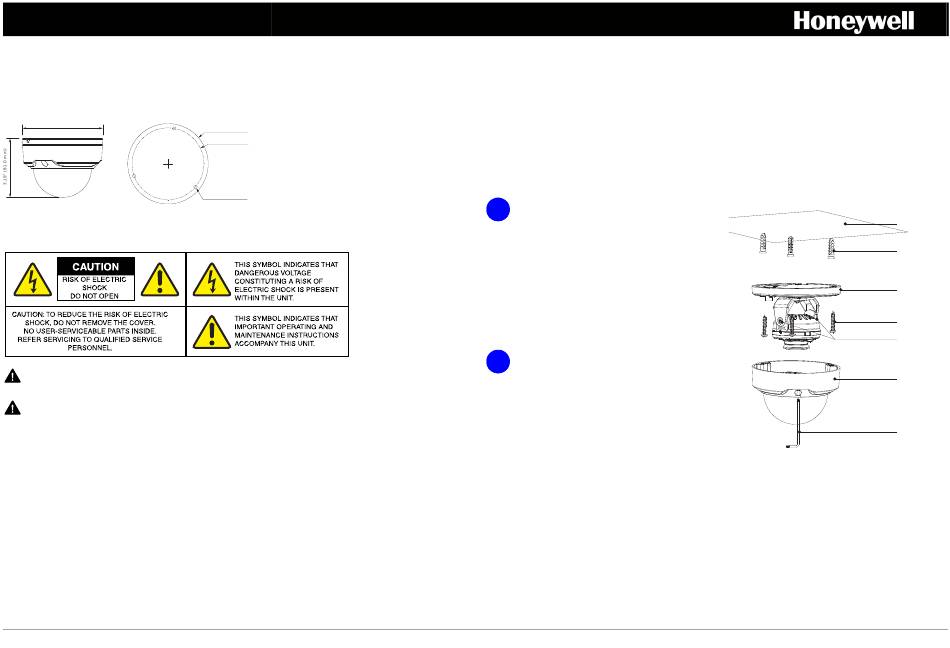

Preparing the Mounting Surface
1. Inspect the site where you want to install the camera.
The mounting surface must be flat and capable of
supporting at least three times the weight of the
camera.
2. Remove the backing from the mounting template
sticker and affix the sticker to the mounting surface.
3. Drill the screw holes and cable exit hole at the
locations indicated on the mounting template sticker.
4. Insert the three supplied plastic anchors in the holes.
5. Pull the power and video cables through the hole.
2
Mounting the Camera
1. Use the supplied Allen key to remove the dome cover
from the camera assembly, then set it aside.
2. Connect the camera's power and video cables.
• Self-tapping screws (3) • Allen key (L-wrench)
• Plastic anchors (3)
• Power pigtail
• Phillips screwdriver
Document 800-22733 – Rev A – 11/2016
Ceiling or wall
Plastic anchors
Camera mounting
base
Self-tapping
screws
Adjustment
screws
Dome cover
Allen Key
