JBL VRX932LAP/230 Technical Manual page 4

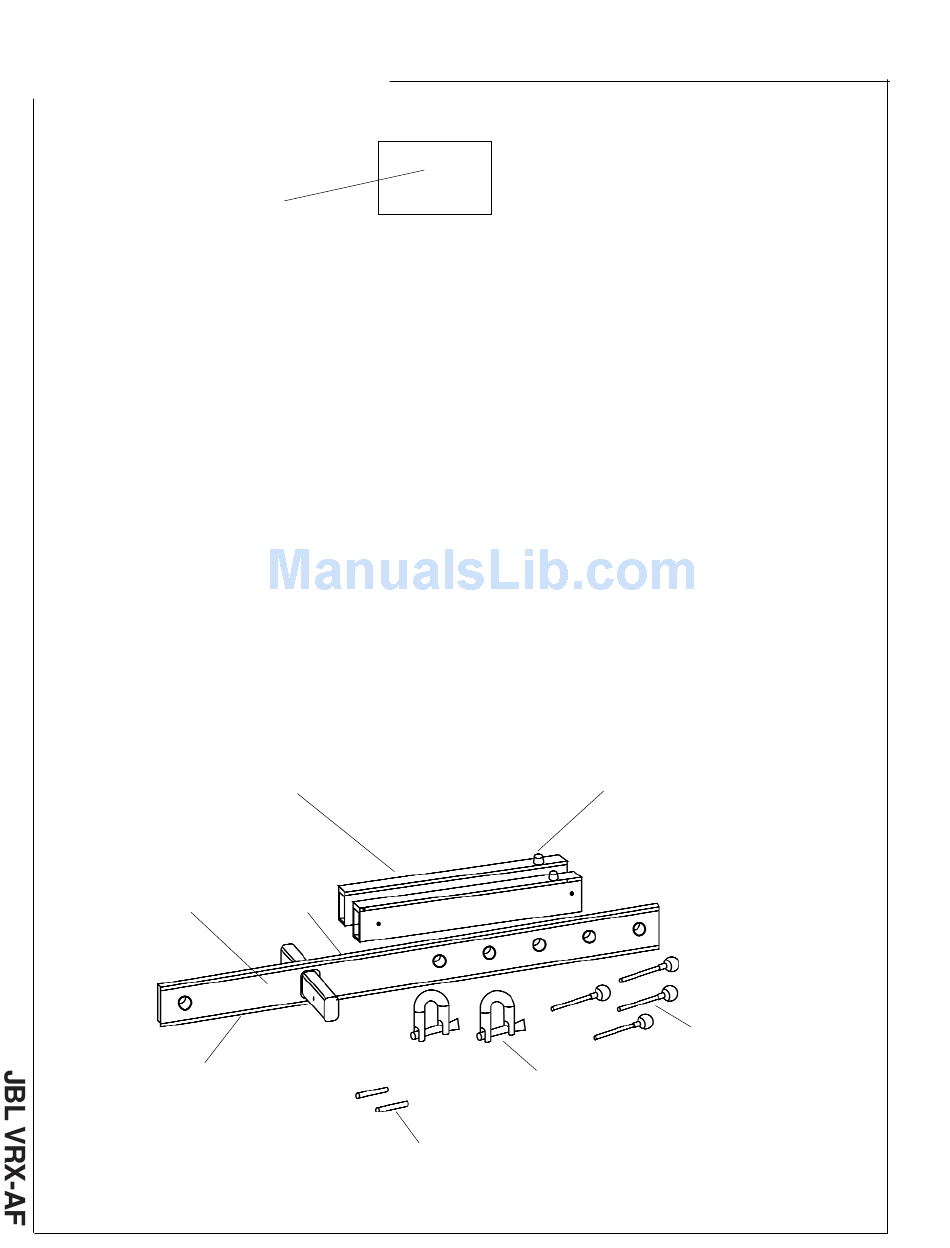

ARRAY FRAME ASSEMBLY
Manual
353551-007
• 4" 1/4-20 bolts to horn — 5" — caution! You can break the horn at 60"/lbs,
which is prety easy with a ratchet (pull on the end of a 1' handle with 5
pounds). 35"/lbs = 2.9 ft/lbs.
• Screws to handle cup from outside of rigging frame — 16"/lbs. Current
production is getting machine screw and keps nut on deviation (which
could take much more torque), but when we switch to sheetmetal screw
(which can be serviced without removing horn/grille), it wil be sensitive
(likely failure torque <30"/lbs)
• Woofer screws, typical 22"/lbs.
• M10 rigging screws — 40"/lbs minimum; don't forget the threadlock! Ditto
the 1/4-20's on the pole mount (except no threadlock)
*VRX Service Kit (includes):
Drop Level Black VRX932LA
361319-001
Nut, Keps (2)
832-30010-00
Steel BLK ZINC
and EM LUBE
Screw (shldr) (2)
354379-001
3/16 DIA X 1 LG
Center Bar
361273-001
3/8 x 1/8 Gasket
353695-001
Side Pole (2)
361272-001
Warning Label
355051-006
Drop Lever (2)
361017-001
JBL VRX-AF
Bumper (2)
353696-001
Thread Lock, Loctite
222 or Eng Equiv
3/8 Shackle (2)
353697-001
Ball Lock Pin (4)
361858-002
3/6 Dia x 1.0 Long
