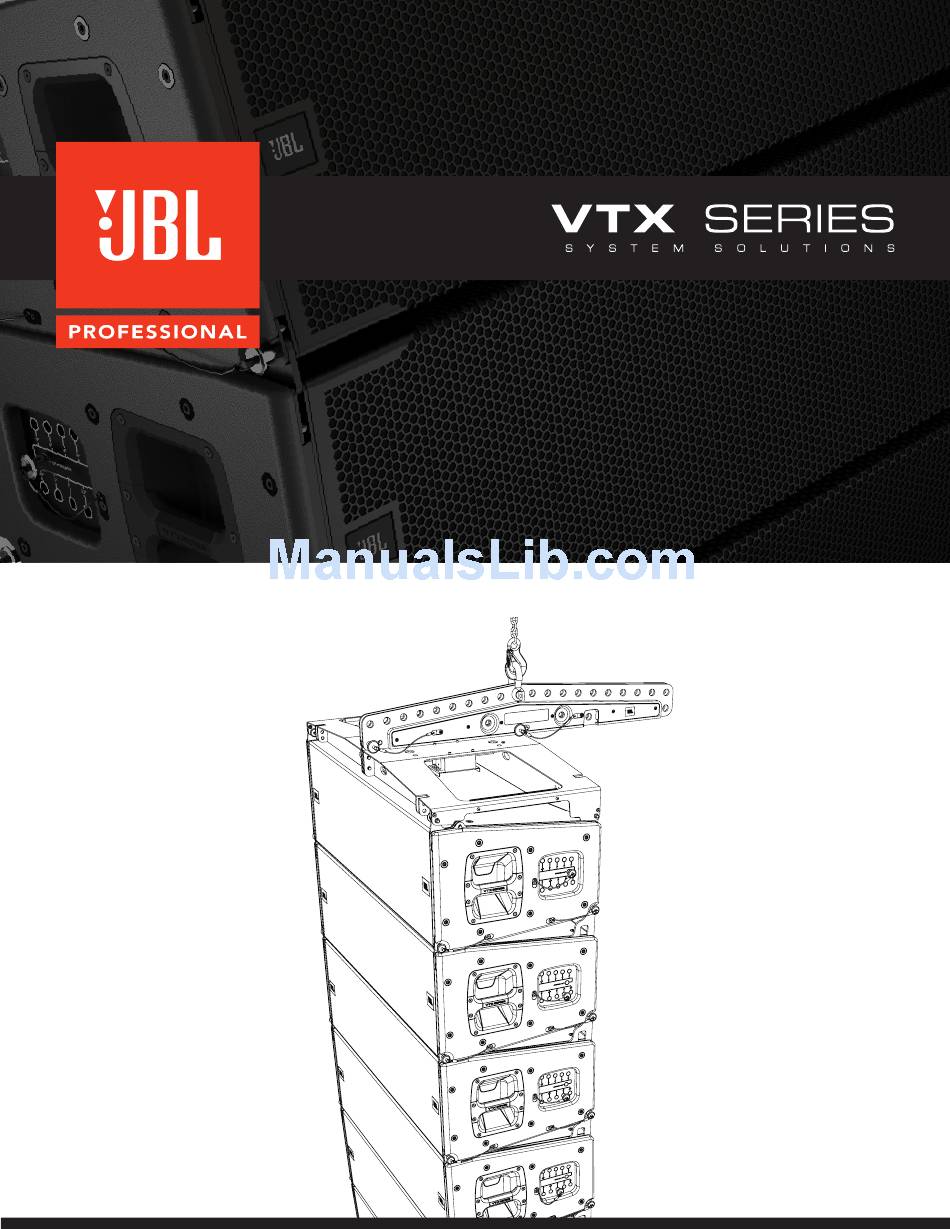

- Page 1 VTX A12 | Rigging Manual...
- Page 2 VTX A12 | Rigging Manual GENERAL INFORMATION VTX A12 - Rigging Manual Document Number: 1000297495 Version: A Distribution Date: 5/30/2017 Copyright © 2017 by HARMAN International; all rights reserved JBL PROFESSIONAL 8500 Balboa Blvd Northridge, CA 91329...
- Page 3 Thank you for purchasing JBL VTX Series Products Of all the achievements JBL has made over the years, the VTX Series stands as a milestone in the practical application of creative engineering. The next generation in-line arrays, VTX heralds a new era in performance, system integration and user friendliness.
-
Page 4: Table Of Contents
VTX A12 | Rigging Manual TABLE OF CONTENTS 1 - DECLARATION OF CONFORMITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2 - SAFETY . - Page 5 VTX A12 | Rigging Manual 9.6 - Extension Bar and Frame Orientation ................31 9.7 - Using Dual Extension Bars .
-
Page 6: Declaration Of Conformity
VTX A12 | Rigging Manual 1 - DECLARATION OF CONFORMITY BRAND: JBL Professional FAMILY NAME: VTX A12 loudspeaker and suspension accessories MODEL NAMES: • VTX A12 • VTX A12 AF • VTX A12 AF EB • VTX A12 SB •... -
Page 7: Safety
11. Contact JBL Professional for advanced servicing issues 12. CAUTION - DO NOT PERFORM ANY SERVICING UNLESS YOU ARE QUALIFIED TO DO SO 13. -
Page 8: Important Safety Warning
None of the information in this section should be used without first obtaining competent advice with respect to applicability to a given circumstance. None of the information presented herein is intended as a representation or warranty on the part of JBL. -
Page 9: Inspection And Maintenance
For all other hardware and fittings, refer to the hardware manufacturer’s inspection and maintenance guidelines for process . JBL is not responsible for the application of its products for any purpose or the misuse of this information for any purpose. Fur- thermore, JBL is not responsible for the abuse of its products caused by avoiding compliance with inspection and maintenance procedures or any other abuse. -
Page 10: Mechanical Limits
The VTX A12 suspension system and accessories, comply with the 2006/42/EC: Machinery Directive and a design factor of 4:1. The VTX A12 and all suspension accessories have been designed following the guidelines of BGV-C1. The limits listed in the tables below correspond to a safety factor of 4:1 or higher for flown deployments. -
Page 11: System Components
VTX A12 VT GND | Ground Stack (Preliminary) VTX Delta | Delta Plate (Preliminary) CAUTION: Always use components and accessories specified and approved by JBL Professional. When a cart is used, use caution when moving the cart to avoid injury from tip-over... -
Page 12: Software
Line Array systems as well as flown and ground stacked subwoofer arrays. Enhanced acoustical modeling includes color SPL mapping, 0 dB Isobar, and SPL attenuation modes with the frequency response and SPL based on JBL’s DSP presets. Up to 8 virtual microphones can be placed in the venue for accurate position-dependent response prediction. -
Page 13: Array Link
JBL Array Link is a mobile companion app that works in conjunction with JBL’s latest LAC software to assist technicians deploying JBL VTX Series systems. Array Link uses a QR code system to transfer all array mechanical information from the main LAC appli- cation to a mobile phone –... -
Page 14: Vtx A12 Introduction
JBL VTX A12 is a complete tour sound solution for mid- to large-size touring applications and high-end fixed installations. VTX A12 was designed from scratch to address the unique challenges of rental companies, FOH engineers and tour sound production crews. -
Page 15: A12 Rigging System Overview
7 - A12 RIGGING SYSTEM OVERVIEW VTX A12 cabinets include a next generation rigging system that is easy to use, simple to understand and highly accurate. VTX A12 enclosures are transported vertically on carts of four using the VTX A12 VT - Vertical Transporter cart system accessory. During transportation, all four cabinets travel collapsed and set to the 10-degree position. -
Page 16: Vtx A12 - Angle-Lock Mechanism
7.2 - VTX A12 - ANGLE-LOCK MECHANISM VTX A12 includes an innovative Angle-Lock mechanism that automatically engages when the cabinets are suspended and reach the desired angle position. The Angle-Lock mechanism consists of two main parts, the RED LOCKING LEVER and the black RELEASE BUTTON. -
Page 17: Vtx A12 - Angle Selection
7.3 - VTX A12 - ANGLE SELECTION Each VTX A12 includes two Angle Selection panels (one on each side) that are used for selecting the cabinet-to-cabinet splay angle. The options are marked in degrees and the panel allows for 11 unique positions ranging from 0.25-degrees to 10-degrees. -
Page 18: A12 Vt And Transportation
8.1 - INSTALLING VTX A12 CABINETS ON A VTX A12 VT At the first time of use, VTX A12 cabinets should be installed on the VTX A12 VT one by one starting with the lowermost cabinets. STEPS: •... - Page 19 Use the 4 Quick Release Pins (2 on each side) and secure the A12 cabinet to the A12 below • Set the cabinet side angle to the 10-degree (STORAGE) position and make sure the red locking lever is in the locked posi- tion • Repeat this process until all 4 cabinets are set on the VTX A12 VT...
-
Page 20: Installing The Top Part Of The Vtx A12 Vt
Because of it’s flat profile, other gear can be placed above VTX A12 carts for a more efficient truck pack. STEPS: • Lower the VT-TOP on to the topmost VTX A12 cabinet. Make sure the 4 rigging corners of the A12 cabinet engage with the VT TOP •... -
Page 21: Storing The Vtx A12 Vt
VTX A12 | Rigging Manual 8.3 - STORING THE VTX A12 VT Once the system has been deployed, the VT-TOP can connect to the VTX A12 VT for storage. After the two are connected, several assemblies can be stacked together for storage. -
Page 22: Stacking The Vtx A12 Vt With The Vt-Top
VTX A12 | Rigging Manual 8.4 - STACKING THE VTX A12 VT WITH THE VT-TOP When the VTX A12 VT and VT-TOP are connected, several assemblies can be stacked together for storage. STEPS: • Rotate the VT wheels so that the wheels are pointed to the inside of the VT •... -
Page 23: Stacking The Vtx A12 Vt
• Line up the wheels • Stack the two parts together • Repeat until all VTs are stacked together CAUTION: Make sure no more than 8 x VTX A12 VTs are stacked together to maintain a good balance and stability... -
Page 24: Truck Packing Dimensions
VTX A12 | Rigging Manual 8.6 - TRUCK PACKING DIMENSIONS 2.286mm (90.00”) 2434.4mm (96.00”) -
Page 25: Array Frame And Extension Bar
9 - ARRAY FRAME AND EXTENSION BAR The VTX A12 AF is a lightweight Array Frame used for suspending VTX A12 Series enclosures. The frame was designed to operate in either single-point, front-to-back or side-by-side suspension modes using the VTX A12 AF EB Extension Bar. One Extension Bar is included with the frame and a second extension bar can be added to facilitate side-by-side suspension. -
Page 26: Extension Bar Overview
The Array Frame Extension Bar is used to connect the Array Frame to the suspension points. One Extension Bar is included with the VTX A12 AF and additional Extension Bars can be purchased and used depending on the application. The extension is compatible with 5/8”... -
Page 27: Attaching The Extension Bar
VTX A12 | Rigging Manual 9.3 - ATTACHING THE EXTENSION BAR The Extension Bar includes two tab positions and two Quick Release Pins for connecting to the Array Frame. STEPS: • First, line up the Extension Bar with the connection tabs on the Array Frame •... -
Page 28: Extension Bar Attachment Options
9.4 - EXTENSION BAR ATTACHMENT OPTIONS The VTX A12 AF Extension Bar includes 3 x attachment positions for connecting to the Array Frame. The 3 x positions allow for ad- ditional aiming resolution when an array is suspended from a single point. In single-point applications, the array aiming is determined by the shackle position on the Extension Bar. - Page 29 VTX A12 | Rigging Manual POSITION A The A position is the first extension bar attachment position. This position is used when the array is suspended from two points (Front and Rear, or Side to Side), and can be used for single-point hangs if the prediction shows that a shackle can attach to a physical attachment point on the extension bar.
-
Page 30: Extension Bar Storage Positions
VTX A12 | Rigging Manual 9.5 - EXTENSION BAR STORAGE POSITIONS The Extension Bar can be secured to the top of the A12 Array Frame for transportation and storage when not in use. Guides have been built into the top of the A12 Array Frame and the storage position of the Extension Bar in order to facilitate quicker attach- ment, and once the Extension Bar is properly in place to be stored, the attached QRP’s from the Extension Bar can be used to... -
Page 31: Extension Bar And Frame Orientation
VTX A12 | Rigging Manual 9.6 - EXTENSION BAR AND FRAME ORIENTATION There are three different positions that can be used to secure the Extension Bar to the Array Frame when preparing to suspend an array. Note that the choice of physical attachment position must come from correct selection of the attachment position in the LAC prediction. -
Page 32: Using Dual Extension Bars
9.7 - USING DUAL EXTENSION BARS The VTX A12 Array Frame can be deployed with either one or two Extension Bars. The Array Frame ships from the factory with one Extension Bar. In cases where a VTX A12 array is to be suspended from side-by-side suspension points, a second VTX A12 Extension Bar can be used. -
Page 33: Extension Bar Use Cases
9.9 - EXTENSION BAR USE CASES The VTX A12 Array Frame can be deployed in a number of configurations with one or two VTX A12 Extension Bars. It is important to note that only certain configurations are correct and safe for suspension of VTX A12 arrays. The images below illustrate proper configurations for attaching VTX A12 Extension Bars, and where suspension points should be attached to the Extension Bars. -
Page 34: Attaching The Array Frame
9.10 - ATTACHING THE ARRAY FRAME The VTX A12 Array Frame was designed to be both lightweight and easy to handle whether it is transported on top of arrays or separately in a case. Since the Extension Bar was designed to attach and travel on the Array Frame, these instructions assume this use case, although transportation together is recommended, it is not required. -
Page 35: Deploying A12 Systems
10 - DEPLOYING A12 SYSTEMS The suspension of a VTX A12 system by a trained technician should be a simple and straightforward process. Ensure all steps below are followed and the array will suspend safely and efficiently. Failure to follow the steps outlined below may damage equipment and/or result in a potentially hazardous condition. -
Page 36: Suspend The First Stack
VTX A12 | Rigging Manual 10.2 - SUSPEND THE FIRST STACK STEPS: • Ensure that all red suspension Locking Levers are in the locked position, and then engage the hoist to lift the array off the ground. As the hoist lifts, each cabinet will expand to the correct inter-enclosure angle, and the sound of pins sliding past locking points will be heard. -
Page 37: Attach The Next Stack
10.3 - ATTACH THE NEXT STACK STEPS: • Raise the suspended cluster of VTX A12 cabinets and align the next cart of VTX A12 cabinets on a Vertical Transporter underneath the suspended cluster. • Once the two clusters are aligned, carefully lower the suspended cluster until the front attachment points are nearly touch- ing the front attachment points of the stacked cluster. - Page 38 VTX A12 | Rigging Manual STEPS: • With the front QRP points set, use the suspension hoist to raise the attached clusters. The second cluster may swing forward slightly as it lifts off the ground and the cabinets expand to their correct inter-enclosure angles. Ensure that the Vertical Transporter is completely off the ground and the cluster is able to fully expand before proceeding to the next step.
-
Page 39: Repeat Until Completed
VTX A12 | Rigging Manual 10.4 - REPEAT UNTIL COMPLETED Repeat the previous steps until the entire array has been assembled. -
Page 40: Disassembling An A12 Array
STEPS: • To de-suspend an array of VTX A12 cabinets, begin by safely lowering the entire array to a working height. • Press the Lock Release Buttons to open the RED Angle-Lock mechanisms for the lower 4 cabinets. This will enable the bottom 4 VTX A12 cabinets to collapse back together to the 10-degree position •... -
Page 41: Close The Angle-Locks And Move Pins To Storage
• Raise the array back up and allow the 4 VTX A12 cabinets on the Vertical Transporter to roll forward until the cart is resting safely on all 4 wheels. When VTX A12 cabinets on the Vertical Transporter reach this position, stop lifting the suspended array. -
Page 42: Repeat Steps To Disconnect The Next 4 Cabinets
VTX A12 | Rigging Manual 11.3 - REPEAT STEPS TO DISCONNECT THE NEXT 4 CABINETS Repeat the previous steps to disconnect and store the next 4 cabinets of the array. -
Page 43: Repeat Steps To Disassemble The Array
VTX A12 | Rigging Manual 11.4 - REPEAT STEPS TO DISASSEMBLE THE ARRAY... -
Page 44: Specifications
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated. -
Page 45: Vtx A12 Af Eb
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated. -
Page 46: Vtx A12 Sb
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated. -
Page 47: Vtx Delta
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated. -
Page 48: Vtx A12 Vt
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated. -
Page 49: Contact Information
Pacific Coast Time in the U.S.A. (800) 8JBLPRO (800.852.5776) (800) 8JBLPRO (800.852.5776) www.JBLservice.com support@jblpro.com Professional Contacts, Outside the USA: Contact the JBL Professional Distributor in your area. A complete list of JBL Professional international distributors is provided at our U.S.A. website: www.jblpro.com... - Page 50 VTX A12 | Rigging Manual...
