- Page 1 SATA 300 ExprESSCArd/34 USEr MANUAL MODEL 515245 MAN-515245-UM-1106-03...
-
Page 2: Software Installation

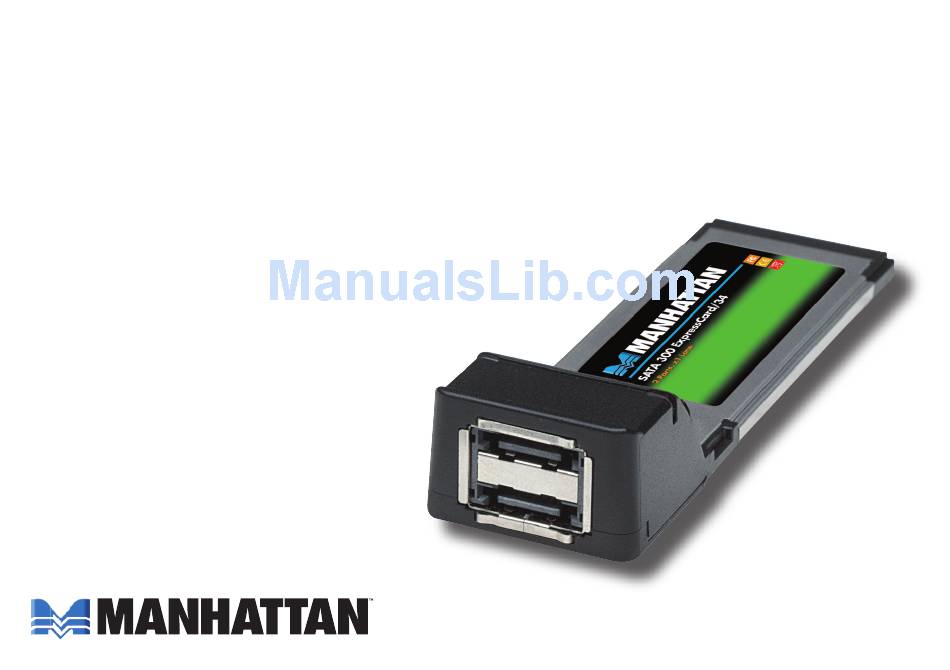

Thank you for purchasing the MANHATTAN SATA 300 ExpressCard/34, Model 515245. ® Compliant with PCI Express 1.0a and SATA 1.0 specifications, this card adds dual external SATA ports to connect data storage and other SATA peripheral devices. It supports data transfer speeds of up to 3.0 Gbps and, using 48-bit LBA, it breaks the size limit of 137 GB... - Page 3 For Windows 2000/XP/Server 2003 1. Insert the SATA 300 ExpressCard/34 into an available slot. Connect SATA cable(s) between the SATA port and SATA device(s). 2. Windows will display "Found New Hardware Wizard" and "Mass Storage controller." 3. Select "Install from a list or specific location (Advanced)," then click "Next." Make sure the driver CD is in the CD-ROM/DVD.
- Page 4 Verifying Windows NT Installation 1. Double-click on "My Computer" and select "Control Panel." Click on the "SCSI Adapters" icon; "Silicon Image SiI 3132 SATALink Controller" should displayed correctly under the "Device" and "Driver" tabs. 2. To view information about the devices attached to the controller, use the SiICfg Utility and click on the device from the list.
- Page 5 4. Select the "Drivers" tab and click "Add." 5. Click "Have Disk." 6. Insert the driver CD in the CD-ROM/DVD drive and press "Enter." 7 . Choose "E:\SATA Express_2Port \Sil3132\WinXP_2000_2003_NT"‘ and click "OK." 8. If desired, refer to the above instructions to verify that the controller was installed correctly. Updating the New Driver for Windows 2000/XP/Server 2003 1.
-
Page 6: Specifications
SpECifiCATioNS Port Specifications • Two external SATA 300 ports • Compliant with PCI Express 1.0a and serial ATA 1.0 specifications • 48-bit LBA supports HDD larger than 137 GB • LED drive activity indicators • Silicon serial controller • Supports two independent serial ATA channels •... - Page 7 System Requirements • Windows NT/2000/XP/Server 2003/Vista • PCI Express-enabled system with an available ExpressCard slot • CD-ROM drive Package Contents • SATA 300 ExpressCard/34 • User manual and driver CD...
- Page 8 Are you completely satisfied with this product? Please contact your MANHATTAN dealer with comments or questions. ® Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
