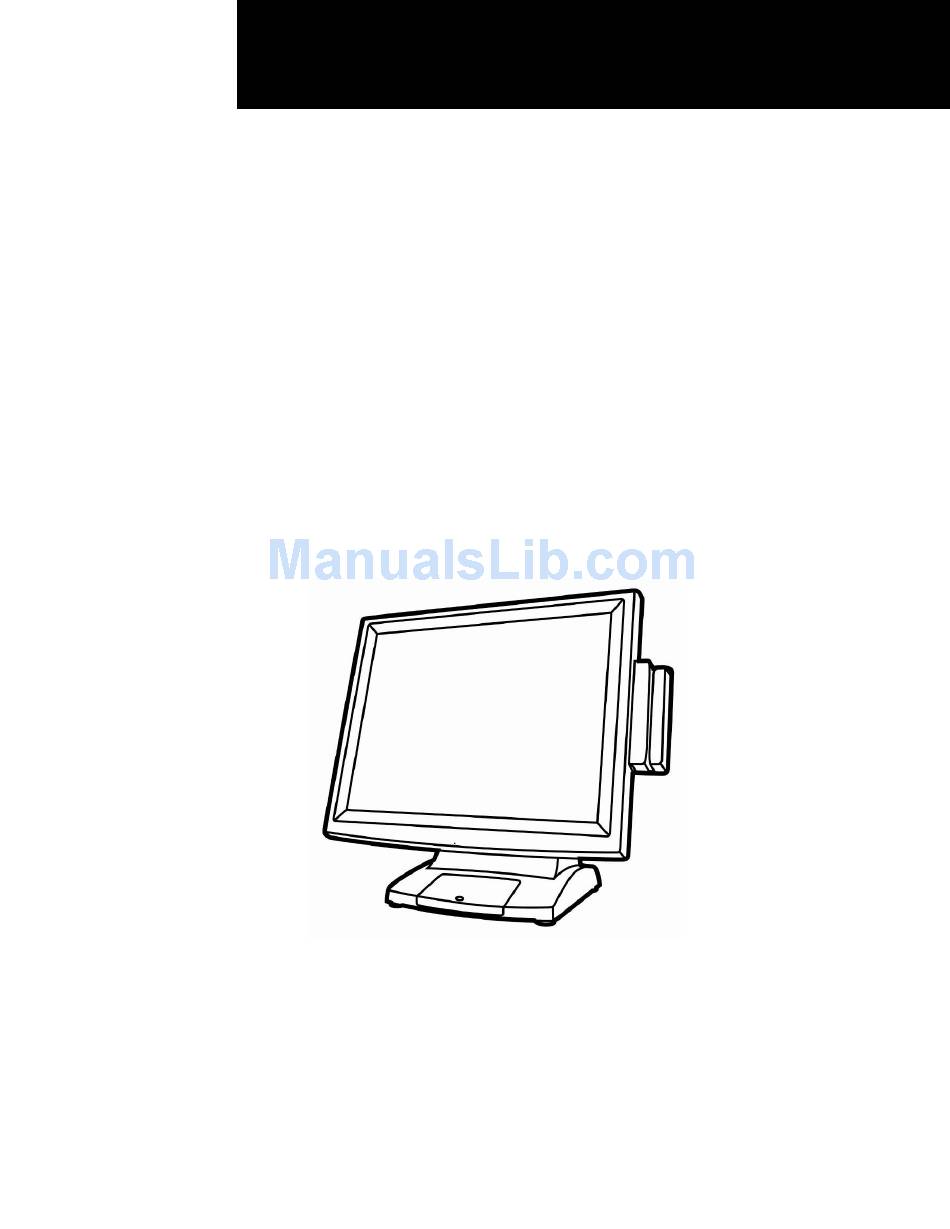

- Page 1 User Manual Revision v1.2 November 2009 EVO-TM2 Hardware System...
- Page 2 Copyright 2009 February All Rights Reserved Manual Version 1.1 Part Number: The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
-
Page 3: Important Safety Instructions
Safety IMPORTANT SAFETY INSTRUCTIONS 1. To disconnect the machine from the electrical Power Supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. 2. - Page 4 CAUTION ON LITHIUM BATTERIES There is a danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. LEGISLATION AND WEEE SYMBOL 2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components.
-
Page 5: Table Of Contents
Table Contents 1 Package Checklist........1 Standard Items............... 1 Optional Items................ 2 2 System View ..........3 Front View................3 Rear View ................4 Bottom View................5 I/O View ................. 6 3 Peripheral Installation......... 7 MSR ..................7 VFD..................8 Wall Mount Kit.............. -
Page 6: Package Checklist
Package Checklist Take the system unit out of the carton. Remove the unit from the carton by holding it by the foam inserts. The following contents should be found in the carton: Standard Items a. Monitor b. Driver CD c. Power Adapter (36W) d. -
Page 7: Optional Items
Optional Items a. MSR Module b. VFD Module c. Wall Mount Kit... -
Page 8: System View
System View Front View System Overview table -1 Number Component Touch Screen MSR (Option) OSD Button for OSD menu selection From left to right button: Stand Hole for cable management... -
Page 9: Rear View
Rear View System Overview table -2 Number Component VFD Module (option) Stand (with cable management and power adapter holder bracket) Cable Outlet VFD Cover (VFD module installation location) VESA hole for stand and wall-mount kit installation... -
Page 10: Bottom View
Bottom View System Overview table -3 Number Component Easy-Service Retaining Bracket for Power Adapter Rubber feet... -
Page 11: I/O View
I/O View System Overview table -4 Number Component USB (to Device) USB IN (from PC) PS/2 OUT PS/2 IN VGA IN COM IN COM 12V 12V IN... -
Page 12: Peripheral Installation
Peripheral Installation Components of MSR Kit: Screws Grounding Slide the MSR in from the right side of the System. Fasten the screws (x2) and grounding cable (x1). -
Page 13: Vfd
Components of VFD Kit: Plastic bracket Metal Bracket Screws Unfasten the screws (x2) and slide the VFD Cover upward. Positioning the VFD metal bracket onto the rear side of the VFD module and fasten the screws (x4). Place the plastic bracket onto the metal bracket in the direction show. - Page 14 Fasten the screw (x1) to fix the plastic bracket to the metal bracket and VFD module. Slide the MSR module with bracket into the VFD socket. Attach the MSR module by fastening the screws (x2). Connect the RJ45 connector of VFD cable to the VFD Module. Connect the other end of VFD Cable (COM Connector) to port G(see 2-4)
-
Page 15: Wall Mount Kit
Wall Mount Kit Before installing the Wall Mount Kit, remove the stand first. (See Chapter 4-1) (Wall Mount Kit) (Place to install) a. Wall Plate b. Monitor plate Components of VESA-standard wall mount kit include following. a. Wall-mount plate b. Monitor-mount plate & screws c. - Page 16 Attach “a” on the wall. Fasten the thumb screw (x1). Align the hooks of “monitor plate” into the keyholes of the “wall plate”.
-
Page 17: System Assembly & Disassembly
System Assembly & Disassembly Removing the System Stand Remove the screws (x2) that fasten the stand and the system. Remove the screws (x4) that fasten the plastic VESA mounting plate and the LCD rear cover. Remove the VESA metal bracket,... -
Page 18: Replace The Power Adapter
Replacing the Power Adapter Release the thumb screw to seperate the retaining metal bracket from the stand and take out the power adapter. -
Page 19: Specification
Specifications Model Name EVO-TM2 AD board LCD Panel Panel Size 15" Brightness 250nits Resolution 1024 x 768 Touch Resistive Tilt Angel ~ 90 External I/O Ports PS/2 2 (1 x PS/2 IN to PC, 1 x PS/2 OUT to Keyboard) -
Page 20: Jumper Settings
Jumper Settings Connectors and Functions Connector Purpose LCD Interface Connector Inverter Connector Eturbo Touch Panel Connector Power State LED Connector VGA Extender Connector Power ON/OFF Connector (Reserve) GM2621 SPI Connector (Reserve) Internal USB Device Connector (Down-Stream) CN10 Internal COM Device Connector (Output) CN11 Keypad Connector CN12... -
Page 21: Motherboard Layout
Motherboard Layout... -
Page 22: Jumper Setting
Jumper Setting 1. COM Port Setting (1-2, 3-4, 5-6, (1-2, 3-4, 5-6, (1-2, 3-4, (1-2, 3-4, Function 7-8, 9-10, 11-12) 7-8, 9-10, 11-12) 5-6, 7-8) 5-6, 7-8) ▲RS232 Touch RS422 Touch Int./Ext. NOTE: It can only be selected above four functions of RS232 Touch / Internal COM / RS232 Card Reader / External COM in the meantime. - Page 23 3. GM2621 SPI Setting Function / Location (1-2, 3-4) ▲N/C 4. RJ45 COM Power Setting (1-2, 3-4, 5-6) Function / Location ▲COM RI COM+5V COM+12V ▲ = Manufacturer Default setting...
- Page 24 5. USB Touch Setting Function / Location JP10 (1-3, 2-4, 3-5, 4-6) ▲On Board USB Touch Internal USB Conn. 6. LCD ID Setting Panel LVDS Resolution (1-2, 3-4, 5-6, 7-8) Number Bits Channel 1024 Single ▲ = Manufacturer Default setting Note: OPEN SHORT...
