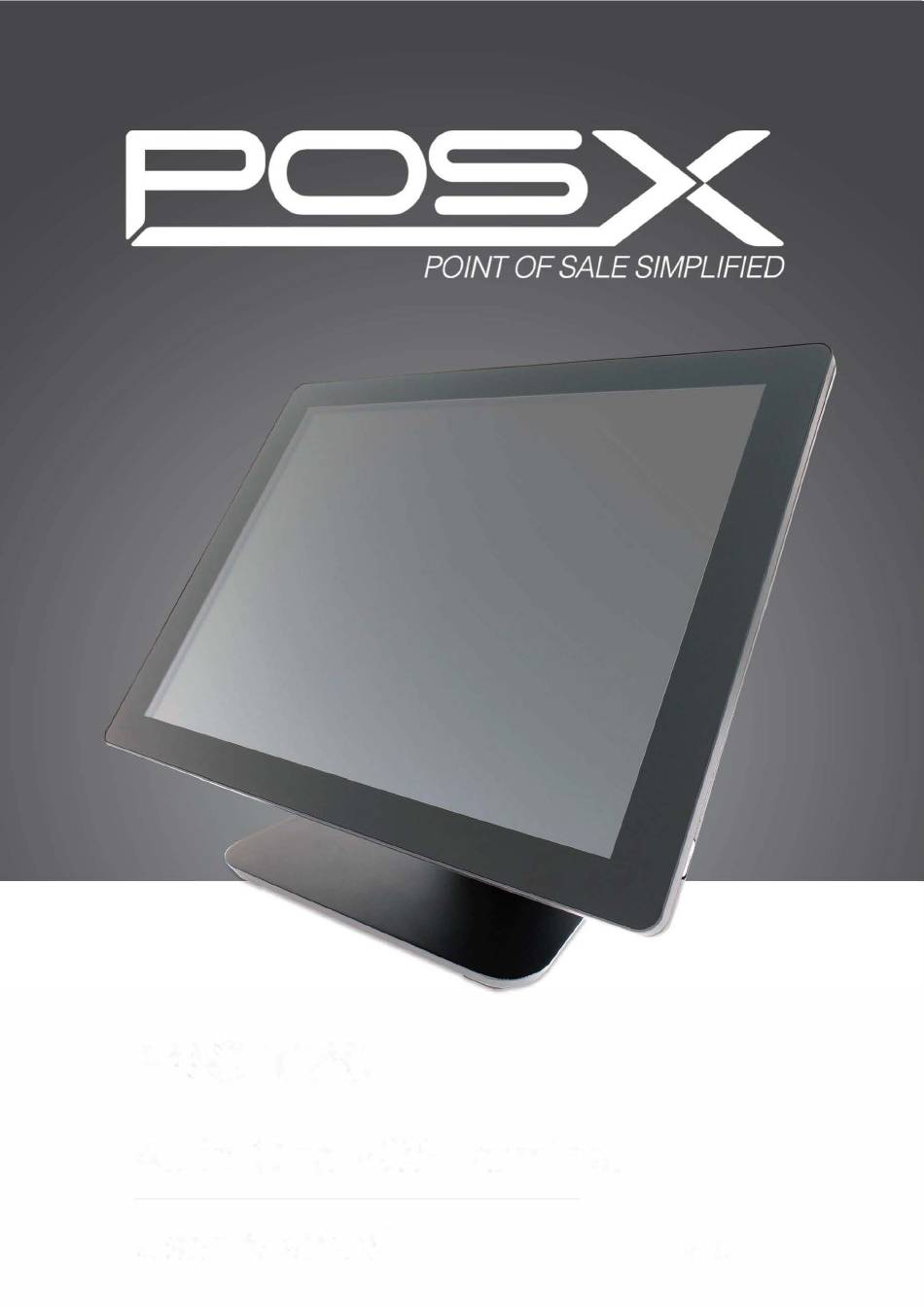

- Page 1 EVO TP6 All in One POS Terminal User Manual v1.0...
- Page 2 Copyright 2018 All Rights Reserved Manual Version 1.0 The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 CE MARK This device complies with the requirements of the EEC directive 2014/30/EU with regard to “Electromagnetic compatibility” and 2014/35/EU “Low Voltage Directive”. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference.
- Page 4 LEGISLATION AND WEEE SYMBOL 2012/19/EU Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components. The crossed dust bin symbol on the device means that it should not be disposed of with other household wastes at the end of its working life.
- Page 5 Revision History Changes to the original user manual are listed below: Revision Description Date • Initial release June 2018...
-
Page 6: Table Of Contents
Table of Contents 1. Packing List ........1 1-1. Standard Contents............1 1-2. Optional Accessories ............2 2. System View ........3 2-1. Front & Side View ............3 2-2. Rear View .................3 2-3. IO Ports View..............4 2-4. System Dimensions ............5 3. System Assembly & Disassembly 6 3-1. - Page 7 5. Specification ........ 14 6. Configuration ....... 16 6-1. D36 Motherboard ............16 6-1-1. Motherboard Layout ............16 6-1-2. Connectors & Functions ..........17 6-1-3. Jumper Setting ..............18 6-2. D86U Motherboard ............20 6-2-1. Motherboard Layout ............20 6-2-2. Connectors & Functions ..........21 6-2-3.
-
Page 8: Packing List
Packing List 1-1. Standard Contents a. System b. Power adapter c. Power cord d. RJ45-DB9 cable (x2) -
Page 9: Optional Accessories
1-2. Optional Accessories a. MSR b. Fingerprint reader c. 8.4" 2nd display d. 2-line Customer display... -
Page 10: System View
System View 2-1. Front & Side View Description Fingerprint (option) Touch screen MSR (option) Power button Stand VESA bottom cover Stand front cover 2-2. Rear View Description HDD cover VESA top cover Cable cover... -
Page 11: Io Ports View
2-3. IO Ports View D36 Motherboard Description Power button DC 19V in COM 1, 2, 3 USB 2.0 x 4 Cash drawer USB 3.0 x 1 D86U Motherboard e f g Description Power button DC 19V in COM 1, 2, 3 USB 2.0 x 2 Cash drawer USB 3.0 x 4... -
Page 12: System Dimensions
2-4. System Dimensions 15.94" 14.14" 105° 62° 8.7" 8.05"... -
Page 13: System Assembly & Disassembly
System Assembly & Disassembly 3-1. Disassemble the Stand 1. Slide the VESA bottom cover outwards. 2. Loosen the thumb screw (x1) and slide the stand towards the IO panel to release it from the system. 3. Reverse the steps above to attach stand to the system. -
Page 14: Install The Power Adapter
3-3. Install the Power Adapter The system is equipped with a 65W or 90W power adapter. Please follow the steps to install the power adapter. 1. The stand is designed to allow for clean cable management. There is a cable channel through the stand, which has a quick access cover. -
Page 15: Peripheral Installation
Peripheral Installation 4-1. MSR Installation 1. Remove the cover. 2. Insert the MSR in place and fasten the screws (x2) on the back to secure the module. -
Page 16: Fingerprint Reader Installation
4-2. Fingerprint Reader Installation 1. Remove the cover. 2. Insert the Fingerprint module in place and fasten the screws (x2) on the back to secure the module. -
Page 17: 2-Line Customer Display Installation
4-3. 2-Line Customer Display Installation 1. Follow the steps in Chapter 3-1 to diassemble the stand from the LCD panel. 2. Remove the thumb screw (x1) from the VESA top cover and then pull the cover up. 3. Attach the LCM module to system by fastening the thumb screw (x1). 4. -
Page 18: Second Display Installation
4-4. Second Display Installation 1. Follow the steps in Chapter 3-1 to diassemble the stand from the LCD panel. 2. Remove the thumb screw (x1) from the VESA top cover and then pull the cover up. 3. Attach the 8.4"' 2 display module to system by fastening the thumb screw (x1). -
Page 19: Cash Drawer Installation
4-5. Cash Drawer Installation You can install a cash drawer through the cash drawer port. Please verify the pin assignment before installation. NOTE: POS software must be specially programmed to work with the built in cash drawer port. Cash Drawer Pin Assignment Signal Cash drawer 2 In Cash drawer 1 Out... - Page 20 Bit 7: Reserved Bit 6: Reserved Bit 5: Reserved Bit 4: Cash Drawer 1 pin output control. = 1: Open the Cash Drawer = 0: Allow Cash Drawer to close Bit 3: Cash Drawer 1 pin input control. = 1: Cash Drawer closed or no Cash Drawer = 0: Cash Drawer opened Bit 2: Reserved Bit 1: Reserved...
-
Page 21: Specification
Specification EVO TP6 Model Name Mainboard D86U Intel SKYLAKE U CPU CPUBGA-1296 14nm Intel Bay Trail CPU BGA-1170 22nm Pentium 4405U LLC 2M (15W,EIA) CPU support Intel Bay Trail CPU I3-6100U 2.3GHz, LLC 3M(15W, EIA) Celeron J1900 2.4GHz, L2 2M i5-6200U 2.4GHz, LLC 3M (15W,EIA) - Page 22 EVO TP6 Model Name Mainboard D86U Certificate EMC & Safety FCC, Class A, CE, LVD 4 kV Contact discharge, 8 kV Air discharge Environment Sealing IP54 (front side) Operating temperature 32°F ~ 95°F (0°C ~ 35°C) Storage temperature -4°F ~ 140°F (-20°C ~ 60°C)
-
Page 23: Configuration
Configuration 6-1. D36 Motherboard 6-1-1. Motherboard Layout CN13 CN12 SATA1 CN14 USB2 CN24 RJ45_1 USB1 CN23 CN15 CN10 JP1 CN17 CN11 MINI_PCIE1 USB3 CN18 CN25 BAT1 CN19 DDR3_A1 CN20... -
Page 24: Connectors & Functions
6-1-2. Connectors & Functions Connector Function Front I/O board Inverter connector LVDS connector System FAN connector LPT port connector Speaker & MIC connector 40pin external connector CN10 HDD LED connector CN11 Power LED connector CN12 SATA power connector CN13/14 USB port (internal) CN15 PS2 keyboard connector CN17... -
Page 25: Jumper Setting
6-1-3. Jumper Setting Inverter Selection Function ▲LED CCFL COM1/COM2/COM3 Power Setting COM1, COM2 and COM3 can be set to provide power to your serial device. The voltage can be set to +5V or +12V in the BIOS. 1. Power on the system, and press the <DEL>... - Page 26 LCD ID Setting LVDS Output Panel# Resolution Interface Bits Channel LVDS 800 x 600 Single Panel LVDS 800 x 600 Single Panel LVDS 1024 x 768 Single Panel LVDS 1024 x 768 Single Panel LVDS 1366 x 768 Single Panel LVDS 1366 x 768 Single...
-
Page 27: D86U Motherboard
6-2. D86U Motherboard 6-2-1. Motherboard Layout SATA1 USB3 RJ45_1 SATA0 CN21 USB2 SKT1 CN19 CN22 CN15 USB1 CN23 MINI_PCIE1 CN10 CN20 SKT2 JP1 CN4 CN24 DDR3_A1 CN28 CN17 CN25... -
Page 28: Connectors & Functions
6-2-2. Connectors & Functions Connector Function Front I/O board HDD LED connector USB connector System FAN connector LPT port connector Smart device connector Debug port CN10 Speaker & MIC connector CN11 40 pin external connector CN12 Audio connector(right) CN13 Audio connector(left) CN14 CN15 Two color LED... -
Page 29: Jumper Setting
6-2-3. Jumper Setting Cash Drawer Power Setting Function ▲ +19V +12V COM1/COM2/COM3 Power Setting COM1, COM2 and COM3 can be set to provide power to your serial device. The voltage can be set to +5V or +12V in the BIOS. 1. - Page 30 LCD ID Setting LVDS Output Panel# Resolution Interface Bits Channel LVDS 800 x 600 Single Panel LVDS 800 x 600 Single Panel LVDS 1024 x 768 Single Panel LVDS 1024 x 768 Single Panel LVDS 1366 x 768 Single Panel LVDS 1366 x 768 Single...
