Hoshizaki
Hoshizaki America, Inc.

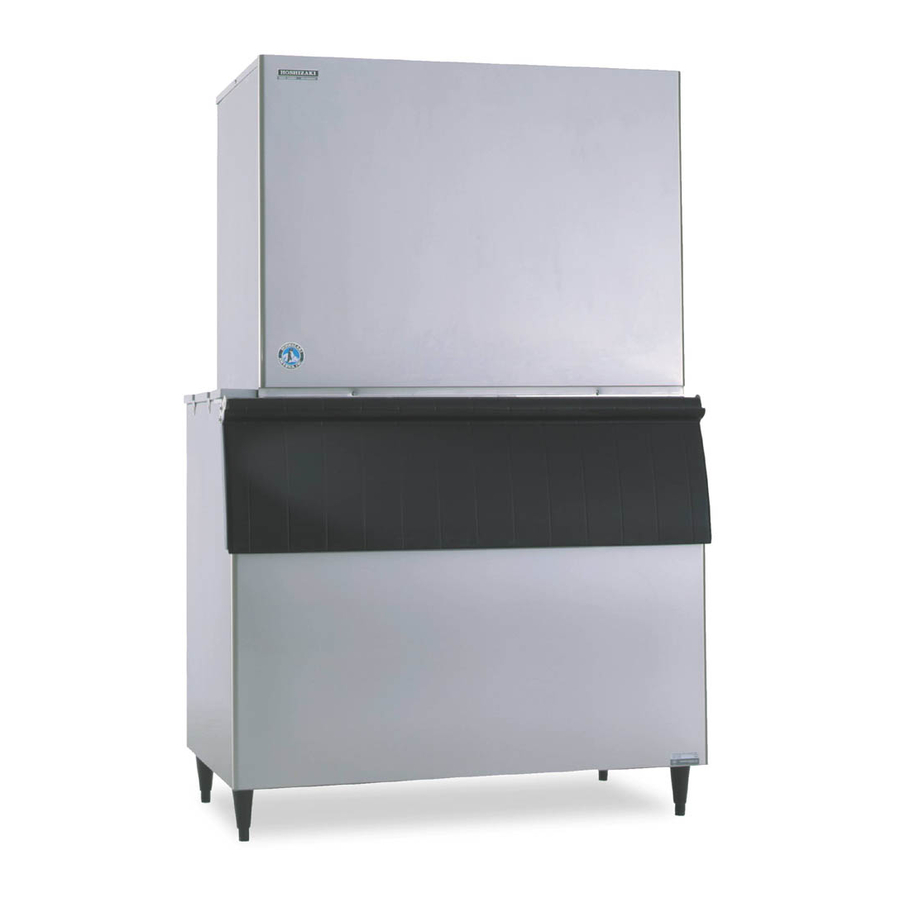

Stackable Crescent Cuber
Models
KM-2100SWH3
KM-2100SRH3
INSTRUCTION MANUAL
"A Superior Degree
of Reliability"
www.hoshizaki.com
™
Issued: 4-2-2009

Advertisement

Table of Contents
loading

Related Manuals for Hoshizaki STACKABLE CRESCENT CUBER KM-2100SWH3

Summary of Contents for Hoshizaki STACKABLE CRESCENT CUBER KM-2100SWH3

  • Page 1 Hoshizaki Hoshizaki America, Inc. Stackable Crescent Cuber Models KM-2100SWH3 KM-2100SRH3 INSTRUCTION MANUAL “A Superior Degree of Reliability” www.hoshizaki.com ™ Issued: 4-2-2009...
  • Page 2 Should the reader have any questions or concerns which have not been satisfactorily addressed, please call, write, or send an e-mail message to the Hoshizaki Technical Support Department for assistance. HOSHIZAKI AMERICA, INC.

  • Page 3: Table Of Contents

    This manual should be read carefully before the icemaker is installed and operated. Only qualified service technicians should install, service, and maintain the icemaker. Read the warnings contained in this booklet carefully as they give important information regarding safety. Please retain this booklet for any further reference that may be necessary.

  • Page 4: Important Safety Information

    Important Safety Information Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, or damage to the unit. WARNING Indicates a hazardous situation which could result in death or serious injury. CAUTION Indicates a situation which could result in damage to the unit.

  • Page 5: Specifications

    I. Specifications A. Nameplate Rating 1. KM-2100SWH3 (water-cooled) HOSHIZAKI ICE MAKER MODEL NUMBER SERIAL NUMBER AC SUPPLY VOLTAGE COMPRESSOR PUMP OTHER MAXIMUM FUSE SIZE MAX. HACR BREAKER(USA ONLY) MAX. CIRC. BREAKER (CANADA ONLY) MINIMUM CIRCUIT AMPACITY DESIGN PRESSURE REFRIGERANT MOTOR-COMPRESSOR THERMALLY PROTECTED,...

  • Page 6: Km-2100Srh3 (Remote Air-Cooled)

    2. KM-2100SRH3 (remote air-cooled) HOSHIZAKI ICE MAKER MODEL NUMBER SERIAL NUMBER AC SUPPLY VOLTAGE COMPRESSOR PUMP FAN REMOTE OTHER MAXIMUM FUSE SIZE MAX. HACR BREAKER(USA ONLY) MAX. CIRC. BREAKER (CANADA ONLY) MINIMUM CIRCUIT AMPACITY DESIGN PRESSURE REFRIGERANT MOTOR-COMPRESSOR THERMALLY PROTECTED,...

  • Page 7: Dimensions / Connections

    B. Dimensions / Connections 1. KM-2100SWH3...

  • Page 8: Km-2100Srh3

    2. KM-2100SRH3...

  • Page 9: Installation And Operating Instructions

    • See the nameplate on the rear panel, and check that your voltage supplied corresponds with the voltage specified on the nameplate. • This icemaker can be installed on a storage bin 48" wide or wider. Hoshizaki Ice Storage Bin, Model B-800 series is recommended. For further options, contact your local Hoshizaki distributor. • On remote air-cooled model, a remote condenser unit is needed. Hoshizaki Remote Condenser Unit, Model URC-22F is recommended. B. How to Remove Panels See Fig. 1 • Front Panel: Remove the 2 screws. Lift up and...

  • Page 10: Location

    C. Location 1. This icemaker is not intended for outdoor use. Normal operating ambient temperature should be within 45°F to 100°F (7°C to 38°C); Normal operating water temperature should be within 45°F to 90°F (7°C to 32°C). Operation of the icemaker, for extended periods, outside of these normal temperature ranges may affect icemaker performance.
  • Page 11 Insert the plug into the receptacle on the assembly until it locks into place. If a Hoshizaki B-800, B-900, or B-1150 bin is used: g. Put aside the "Z" bracket; it is not needed with the bins listed above. h. Remove the 2 screws from the lower part of the thermostat bracket (plastic) and use them to attach the thermostat extension bracket (stainless) to the thermostat bracket (plastic).

  • Page 12: Installation Of Second Unit

    If a Hoshizaki B-1300, B-1500, B-1650, or non-Hoshizaki bin is used: g. Remove the 2 screws securing the thermostat bulb attachment (plastic) to the thermostat extension bracket (stainless). Use the 2 screws to attach the "Z" bracket (plastic) to the thermostat extension bracket (stainless). h. Use the two 4×10 stainless steel screws in the accessory bag to attach the thermostat bulb attachment (with attached thermostat bulb) to the "Z" bracket.
  • Page 13 7) Remove the thermostat bulb attachment (plastic) of the upper unit from the thermostat extension bracket (stainless). 8) Carefully remove the thermostat bulb from the thermostat bulb attachment (plastic) of the upper unit. 9) Carefully route the thermostat bulb and capillary tubing of the upper unit through the bottom hole of the upper unit.

  • Page 14: Electrical Connection

    F. Electrical Connection For All Models 1. Electrical connection must be hard-wired and must meet national, state, and local electrical code requirements. Failure to meet these code requirements could result in death, electric shock, serious injury, fire, or extensive damage to equipment.

  • Page 15: Installation Of Remote Condenser Unit

    • The maximum line length for the standard refrigerant charge is 66 feet. Should an installation require a longer line length, additional refrigerant must be added. Add .4 oz. of R-404A for each foot over 66 feet to a maximum of 100 feet. Hoshizaki Technical Support is available at 1-800-233-1940 for recommendations. • The maximum vertical distance between the remote condenser unit and the icemaker is 33 feet above or 10 feet below the icemaker.

  • Page 16: Setup

    • The maximum line length for the standard refrigerant charge is 66 feet. Should an installation require a longer line length, additional refrigerant must be added. Add .4 oz. of R-404A for each foot over 66 feet to a maximum of 100 feet. Hoshizaki Technical Support is available at 1-800-233-1940 for recommendations. • The maximum vertical distance between the remote condenser unit and the icemaker is 33 feet above or 10 feet below the icemaker.
  • Page 17 2) Insulate the two copper tubes separately. 3) Install Parker quick connect couplings on each end. OS-QUICK, a universal quick connect coupling kit available as optional equipment from Hoshizaki America, is recommended. 4) Use an electronic leak detector or soap bubbles to check for leaks. Add a trace of refrigerant to the system (if using an electronic leak detector), and then raise the pressure using nitrogen gas (140 PSIG).
  • Page 18 c. Make sure the male fitting and female coupling are properly aligned, then start the connection by hand to ensure that it is not cross threaded. d. Tighten the connection with a wrench until it is tight. At this point, the nut has covered most of the threads on the male fitting.

  • Page 19: Electrical Connection

    5. Electrical Connection 1. Electrical connection must meet national, state, and local electrical code requirements. Failure to meet these code requirements could result in death,electric shock, serious injury, fire, or extensive damage to equipment. 2. THIS UNIT MUST BE GROUNDED. Be sure to install a proper ground from the icemaker to the remote condenser unit.

  • Page 20: Stacking Remote Condenser Units

    6. Stacking Remote Condenser Units 1) Install the lower remote condenser unit as described earlier in this section. 2) Place the upper remote condenser unit on top of the lower. See Fig. 15. 3) Secure the upper remote condenser unit to the lower remote condenser unit with the 4 screws provided.

  • Page 21: Water Supply And Drain Connections

    10 PSIG. Do not run the icemaker until the proper water pressure is reached. • A plumbing permit and services of a licensed plumber may be required in some areas. • External filters, strainers, or softeners may be required depending on water quality. Contact your local Hoshizaki distributor for recommendations. • Water supply pressure should be a minimum of 10 PSIG and a maximum of 113 PSIG. If the pressure exceeds 113 PSIG, the use of a pressure reducing valve is required. • The icemaker and condensation drain line(s), storage bin drain line, and water-cooled condenser drain line (if applicable) must be run separately.

  • Page 22: Icemaker

    1. Icemaker • Icemaker water supply inlet is 1/2" female pipe thread (FPT). A minimum of 1/2" OD copper tubing is recommended for the icemaker water supply line. • An icemaker water supply line shut-off valve and drain valve should be installed. • Icemaker drain outlet is 3/4" FPT. A minimum of 3/4" OD hard pipe is recommended for the icemaker drain line. Condensation drain outlet is 3/8" OD stainless tube. The condensation drain line can be connected to the icemaker drain line or can be run separately. Icemaker Water Supply Line Shut-Off Valve Icemaker Water Supply Line Drain Valve Remote Condenser Line Set Connections Separate piping to approved drain. Leave a 2 inch (5 cm) vertical air gap between the end of each pipe and the drain.

  • Page 23: Water-Cooled Condenser

    2. Water-Cooled Condenser a) Connection to an Open Drain System • Condenser water supply inlet is 1/2" female pipe thread (FPT). A minimum of 3/8" OD copper tubing is recommended for the condenser water supply line. • A condenser water supply line shut-off valve and drain valve should be installed. • Condenser drain outlet is 3/8" FPT. A minimum of 3/8" OD hard pipe is recommended for the condenser drain line. Drain line must be run separately. • In some areas, a back flow preventer may be required in the cooling water circuit. Icemaker Water Supply Line Shut-Off Valve Icemaker Water Supply Line Drain Valve Condenser Water Supply Inlet 1/2" FPT Condenser Drain Outlet 3/8" FPT Condenser Water Supply Line Shut-Off Valve Condenser Water Supply Line Drain Valve Separate piping 2 inch (5 cm) to approved drain.
  • Page 24 b) Connection to a Closed Loop System • Condenser water supply inlet is 1/2" female pipe thread (FPT). A minimum of 3/8" OD copper tubing is recommended for the condenser water supply line. • Condenser return outlet is 3/8" FPT. A minimum of 3/8" OD hard pipe is recommended for the condenser return line. • Shut-off valves and drain valves should be installed at both the condenser water supply inlet and condenser return outlet. • The water supply to the condenser should not drop below 4 GPM. • The pressure differential between the condenser water supply inlet and condenser return outlet must be no less than 10 PSIG. • When using a glycol blend, the solution mixture should be less than 30% glycol. • In order to maintain the proper high side pressure, the condenser water supply inlet temperature should not drop below 45°F (7°C) and the condenser return outlet temperature must be in the 104°F to 115°F (40°C to 46°C) range.

  • Page 25: Final Checklist

    I. Final Checklist CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after installation. Make sure that none have fallen into the storage bin. 1) Is the icemaker level? 2) Is the icemaker in a site where the ambient temperature is within 45°F to 100°F (7°C to 38°C) and the water temperature within 45°F to 90°F (7°C to 32°C) all year around? 3) Is there at least a 6" (15 cm) clearance at sides, rear, and top of the icemaker for proper air circulation and ease of maintenance and service?

  • Page 26: Startup

    J. Startup 1. All parts are factory-adjusted. Improper adjustments may adversely affect safety, performance, component life, and warranty coverage. 2. If the icemaker is turned off, wait for at least 3 minutes before restarting the icemaker to prevent damage to the compressor. 3.

  • Page 27: Cleaning And Maintenance

    A. Cleaning and Sanitizing Instructions Hoshizaki recommends cleaning and sanitizing this unit at least once a year. More frequent cleaning and sanitizing, however, may be required in some existing water conditions.

  • Page 28: Cleaning Procedure

    1. Cleaning Procedure 1) Dilute 38 fl. oz. (1,124 ml) of Hoshizaki "Scale Away" with 7 gal. (26 l) of warm water. 2) Remove all ice from the evaporator and the storage bin. Note: To remove cubes on the evaporator, turn off the power supply and turn it back on after 3 minutes. The harvest cycle starts and the cubes will be removed from the evaporator.

  • Page 29: Sanitizing Procedure - Following Cleaning Procedure

    21) Remove the front panel and fully open the cleaning valve. 22) Move the control switch to the "WASH" position. 23) Replace the front panel in its correct position. 24) Turn on the power supply to rinse off the cleaning solution. 25) Turn off the power supply after 5 minutes. 26) Remove the front panel and the insulation panel.

  • Page 30: Maintenance

    B. Maintenance This icemaker must be maintained individually, referring to the instruction manual and labels provided with the icemaker. 1. Only qualified service technicians should attempt to service or maintain this icemaker. 2. Disconnect power before performing service or maintenance. 1.
  • Page 31 8) Blow the icemaker water supply line out using the compressed air or carbon dioxide supply. 9) Close the icemaker water supply line drain valve. 2. Drain the water tank: 1) Turn off the power supply, then remove the front panel. 2) Move the control switch to the "OFF" position.
  • Page 32 HOSHIZAKI AMERICA, INC. 618 Hwy. 74 S., Peachtree City, GA 30269 USA TEL (770) 487-2331 FAX (770) 487-3360 www.hoshizaki.com 91A1EE10A...
