MB QUART QSE-216 Quick Start Manual

MB QUART QSE-216 Quick Start Manual

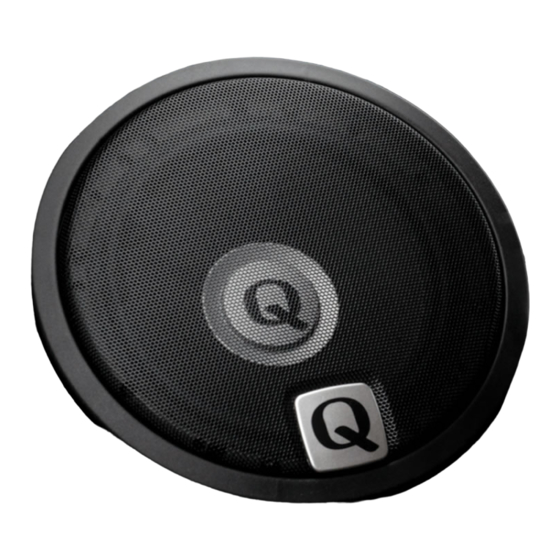

6.5 inch 2-way component speakers

Advertisement

Quick Links

QSE-216
6.5 INCH 2-WAY
COMPONENT
SPEAKERS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QSE-216 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MB QUART QSE-216

  • Page 1 QSE-216 6.5 INCH 2-WAY COMPONENT SPEAKERS...
  • Page 2: Speaker Dimensions

    CONGRATULATIONS By purchasing the QSE-216 2-Way Component System you have chosen an excellent MB Quart product. Q is the perfect example of the technical achievements that can be made in the area of in-car loudspeakers by means of intensive research. Q is more than a philosophy, since Q enables perfect sound reproduction in conjunction with conveniently compact dimensions.
  • Page 3 General It’s a good idea to confirm that you have purchased the correct size speakers to fit your vehicle. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional. The removal of interior panels can be tricky and may require special tools.
  • Page 4: Installation

    Installation Factory location behind door panel Vehicles that have premium sound systems will often have separate tweeters in a dash or door location. Try to use this location for mounting the component tweeter if possible. Custom location If there is not a suitable factory location for woofer or tweeter to be mounted, custom mounting may be necessary.
  • Page 5: Speaker Mounting

    Speaker Mounting Flush Mounting Ring Flush Mounting with Spacer Ring...
  • Page 6: Tweeter Mounting

    Tweeter Mounting There are three primary ways the tweeter can be mounted. Surface Flush, and Oblique mounting. Make sure to check for any obstructions before cutting into any panel. 1.06" 1.06" Surface Mount 0.45" 0.73" Flush Mount 0.63" 0.63" 0.61" 0.61"...
  • Page 7: Crossover Wiring

    T- T+ w- w+ Tweeter Connection Adjustment Graph Frequency (Hz) The QSE-216 2-Way crossover network included in your Q speaker set Tweeter Adjustment is equipped with individually selected sound frequency components, gold connection terminals and gold terminal jumpers, together with reinforced...
  • Page 8 Tweeter Jumper Connections Tweeter Level Output Input T- T+ w- w+ Bridge A/T- (-0dB) Level Bridge -0dB Tweeter Level Output Input T- T+ w- w+ Bridge C / A (-1.5dB) Level Bridge -1.5dB JUMPER Tweeter Level Output Input T- T+ w- w+ Bridge D / C (-3dB) Level Bridge...
  • Page 9: Standard System Setup

    Standard System Setup 1. Connect the output of the sound equipment to the input terminals W+ and W- of the crossover network 2. Connect the tweeter positive wire to the T+ output terminal. The tweeter negative connection will be determined by your tweeter adjustment settings (See table on Step G).
  • Page 10 Bi-Amping System Setup 1. Remove the jumpers T+/W+ and T-/W- at the input terminals. 2. Connect the output of the sound equipment to the input terminals W+/W- and T+/T- of the crossover network 3. Connect the tweeter positive wire to the T+ output terminal. The tweeter negative connection will be determined by your tweeter adjustment settings (See table on Step G).
  • Page 11 WARRANTY Maxxsonics, LLC. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxsonics, LLC. will, at it’s discretion, repair or replace defective products during the warranty period.
