Noritz NRC111-SV Owner's Manual

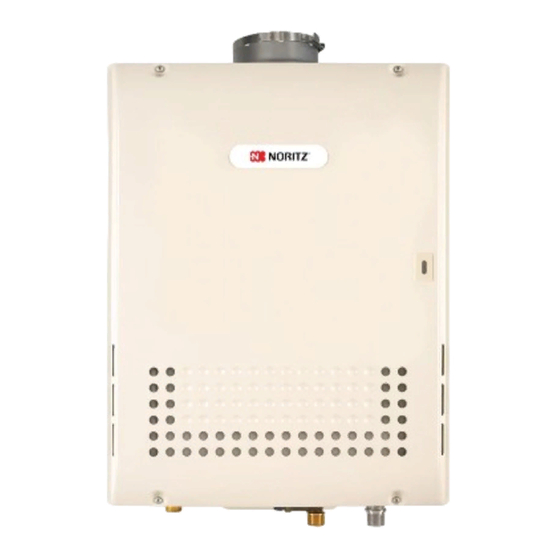

Condensing tankless gas water heater
Hide thumbs Also See for NRC111-SV:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Installation Manual
CONDENSING TANKLESS GAS WATER HEATER
Owner's Guide
* FOR USE IN RESIDENTIAL, COMMERCIAL, OR MANUFACTURED HOME APPLICATIONS.
WARNING
- Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
CERTIFIED
R
Low NOx
Approved by
SCAQMD
Accepted For Use
City of New York
Department of Buildings
MEA 19-03-E
SBA8370
Rev. 09/09
Models: NRC111-SV
NRC111-DV*
If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury, or death.
Thank you for purchasing this Noritz Tankless Gas Water Heater.
Before using, please:
Read this manual completely for operation instructions.
Completely fill out the warranty registration card (included separately) and
mail the detachable portion to Noritz America Corporation.
Keep this manual (and the remainder of the warranty registration card) where it
can be found whenever necessary.
Installation must conform with local codes, or in the absence of local codes,
the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
When applicable, installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280 or the Canadian
Standard CAN/CSA-Z240 MH Mobile Homes, Series M86 (NRC111-DV only).
Noritz America reserves the right to discontinue, or change at any time, the
designs and/or specifications of its products without notice.
NORITZ America Corporation
*SBA8370*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NRC111-SV and is the answer not in the manual?

Questions and answers

Marlene Giese
February 25, 2025

water goes from hot to cold and back to hot to cold when showering Have just descaled. Filter hard to clean

0
1 comments:
Mr. Anderson
February 25, 2025

The Noritz NRC111-SV water heater may fluctuate between hot and cold during a shower due to several possible reasons:

1. Flow Rate Variations – The unit adjusts the burner based on water flow. If the flow rate changes, such as when another fixture is used, temperature fluctuations can occur.

2. Incorrect Temperature Setting Changes – Adjusting the temperature while hot water is in use can cause sudden shifts in water temperature.

3. Neutralizer Maintenance – If the neutralizer unit was recently replaced or has been empty for a long time, it must be filled with water to ensure proper operation.

4. Exhaust Issues – A displaced, clogged, or corroded exhaust pipe can affect heater performance, possibly leading to temperature fluctuations.

5. Cold Weather Conditions – In winter, the inlet water temperature is lower, requiring more heating, which may cause fluctuations if the unit struggles to maintain the set temperature.

To prevent these fluctuations, avoid changing the temperature during use, ensure proper exhaust function, and maintain a steady flow rate.

This answer is automatically generated

0

Related Manuals for Noritz NRC111-SV

Summary of Contents for Noritz NRC111-SV

  • Page 1 Construction and Safety Standard, Title 24 CFR, Part 3280 or the Canadian Standard CAN/CSA-Z240 MH Mobile Homes, Series M86 (NRC111-DV only). Noritz America reserves the right to discontinue, or change at any time, the Accepted For Use designs and/or specifications of its products without notice.

  • Page 2: Important Safety Information

    Important Safety Information-1 To prevent damage to property and injury to the user, the icons shown below will be used to warn of varying levels of danger. Every indication is critical to the safe operation of the water heater and must be understood and observed. Potential dangers from accidents during installation and use are divided into the following four categories.
  • Page 3 3. Turn off gas and water supply valve. WHAT TO DO IF YOU SMELL GAS. 4. Call the nearest Noritz agent • Do not try to light any appliance. • Do not touch any electrical Explosion Hazard ;...
  • Page 4 [NRC111-DV only] Be sure to do. Carbon Monoxide Poisoning Hazard. Do not install this water heater in a Ex. For Natural Gas NRC111-SV Prohibited recreational vehicle or on a boat. NRC111-SV Do not store or use gasoline or other 199,900 BTU...
  • Page 5 Shock. followed to minimize the risk of fire or explosion or to prevent property damage, Consult the nearest Noritz agent if personal injury, or death. The qualified the water heater location needs to service agency is responsible for the proper be changed.
  • Page 6 This unit is only approved for installation gas vent and exhaust vent terminal for up to 4500 ft. above sea level. blockage. For installations at higher elevations, contact Noritz America for Instructions. Do not use parts other than those specified for this equipment.

  • Page 7: Table Of Contents

    Contents Important Safety Information ............... 2 Contents ......................7 Overview of Condensing Tankless Gas Water Heater ....... 8 General Parts Main Unit ....................9 Remote Controller ................... 10 Initial Operation ................... 11 How to Use Setting and Using the Water Heater ............12 Flow Meter Alarm ..................

  • Page 8: Overview Of Condensing Tankless Gas Water Heater

    Overview of Condensing Tankless Gas Water Heater This water heater is a high efficiency, fully condensing appliance. Unlike a traditional tankless water heater, a condensing type captures heat from the exhaust gas and uses it to preheat the incoming cold water as it passes through the secondary heat exchanger as illustrated below. Condensing Conventional Tankless Gas...

  • Page 9: General Parts

    Pressure Relief Valve Water Supply Valve Drain Pipe Discharges the condensate. (Ex. NRC111-SV) Gas Supply Valve * The above illustration shows an example of installation. The exact installation configuration may be slightly different. NRC111-DV Indoor Wall Mounted, Power Vent/Sealed Model...

  • Page 10: Remote Controller

    General Parts-2 Remote Controller (RC-7649M) What is actually displayed depends on how the water heater is set. Burner On Indicator Setting Buttons When burning, the For setting the hot indicator is lit. water temperature, p.13 and 15) the flow meter alarm, and other settings.

  • Page 11: Initial Operation

    Open the water supply valve. OPEN CLOSED Open a hot water fixture to confirm that water is available, and then close the fixture again. Hot water fixture Open the gas supply valve. Turn on the power. Do not touch with wet hands. (Ex. NRC111-SV)

  • Page 12: How To Use

    How to Use Setting and Using the Water Heater (Starting with the Power Off) Press the Power On/Off Button. The temperature will be displayed on the remote control thermostat. Previous set temperature (Ex.: 110°F) DANGER To prevent scalding: High Temperature °...
  • Page 13 The temperature settings below are examples. The temperature setting °F : necessary depends on the usage, the length of piping and the time of year. The maximum output temperature Contact the installer or Noritz America can be set using the remote when setting the maximum output tem- controller.

  • Page 14: Flow Meter Alarm

    How to Use Flow Meter Alarm (Starting with the power off) Set temperature. Press the Power Preparation Always check On/Off Button temperature setting before use. Plug the bath drain. Cold The temperature will be displayed on the remote control thermostat. Check the indicator lights.
  • Page 15 Water Temperature An alarm will sound for ten seconds when the flow The temperatures settings below are only examples. The °F : temperature setting necessary will depend on the usage, reaches the set level. the length of piping and the time of year. Warm Warmer The water will continue to run unless it is...

  • Page 16: Muting The Remote Controller

    How to Use Muting the Remote Controller The remote controller will emit a sound when any button is pushed. This sound can be muted if it is desired. * Initial factory setting is with sound Hold the Power On/Off Button for five seconds. Muted Sound No sound...

  • Page 17: Adjusting The Maximum Output Temperature

    How to Use Adjusting the Maximum Output Temperature Change the Turn off the Press and hold the flow temperature using meter alarm set button until power. the setting buttons. a sound is heard (2 sec.). Tone sounds after 2 sec. Down The upper limit of the hot- water supply temperature can...

  • Page 18: Preventing Damage From Freezing

    * The freeze prevention heaters will not prevent the plumbing external to the unit from freezing. Protect this plumbing with insulation, heat tape or electric heaters, solenoids, or pipe covers. If there remains a freezing risk, contact the nearest Noritz agent. Take the measures below for extremely cold temperatures*.
  • Page 19 If the water heater will not be used for a long period of time, drain the water. Drain the water as follows: CAUTION To avoid burns, wait until the equipment cools down before draining the water. The appliance will remain hot after it is turned off.

  • Page 20: Turning The Unit Back On

    Preventing Damage from Freezing Turning the Unit Back On 1. Check that all drain plugs are inserted. 2. Check that all hot water fixtures are closed. 3. Follow the procedure on p.11 “Initial operation”, steps 1 through 4. 4. Make sure that the area around the appliance is well ventilated; open a window or a door if necessary. Then, operate the unit and verify that condensate is coming out of the drain pipe.

  • Page 21: Regular Maintenance

    For water leaks from the Check equipment and piping. (Ex. NRC111-SV) Periodic Maintenance Equipment Wipe the outside surface with a wet cloth, then dry the surface. Use a neutral detergent to clean any stains.

  • Page 22: Water Drain Valve (With Water Filter)

    * The kit includes two full port isolation valves and a pressure relief valve for the hot side. Hot Water Service Valve Contact Noritz for more information. Cold Water Pressure Relief Valve Service Valve Drain Water Intlet Water Outlet (Ex.

  • Page 23: Troubleshooting

    Troubleshooting-1 Initial Operation • Check for reversed plumbing or crossed pipes. Unit does not attempt to ignite • Check the water drain valve filter. ( p.22) when water is running. Unit attempts to ignite but fails • Reset unit and try again. There may be air in the gas line. •...

  • Page 24: Amount Of Hot Water

    Troubleshooting-2 (Continued) • The unit will not heat the water if the flow rate is less than The water is cold when only a 0.5 gallons per minute. single fixture is open. Open the fixture more or open other fixtures so that a greater flow passes through the unit, and the unit should begin heating again.
  • Page 25 Remote Controller • Has there been a power failure? The light on the power button does not come on. • Is the power connected properly? The water temperature changes • The temperature setting and the flow meter alarm setting after a power failure or when the may both need to be reset after a power outage.

  • Page 26: Water Quality

    Source: EPA National Secondary Drinking Water Total Dissolved Solids : 500 mg/L or less Regulations (40 CFR Part 143.3) Zinc : 5 mg/L or less Sulfate ion : 250 mg/L or less Residual chlorine : 4 mg/L or less * Maximum limit suggested by Noritz.

  • Page 27: Error Code Cause

    If the flashing number doesn't return the problem is solved. Clogging of neutralizer Contact the installer or Noritz America Technical Support for assistance. Abnormal combustion, Have a professional check the gas supply pressure.

  • Page 28: Follow-Up Service

    For repairs after the warranty period, there will be a charge on any service, and service will only be performed if the unit is deemed repairable. Period of Time for Stocking Repair Parts Noritz will stock repair and maintenance parts for this unit within twelve (12) years of the date of original installation. Reinstallation If you want to reinstall the appliance at a different location, confirm that the gas and power supply indicated on the rating plate are available at the new location.

  • Page 29: Gas Conversion

    This work must be performed by either Noritz or a qualified service agency and will be charged for even during the warranty period. The qualified installer will also be responsible for purchasing the gas conversion kit directly from the manufacturer.

  • Page 30: Specifications

    Specifications • The capacity may differ slightly, depending on the water pressure, water supply, piping conditions, and water temperature. Specifications Item Specification Model Name NRC111-DV NRC111-SV Indoor, Wall Mounted Type Installation Indoor/ Outdoor, Wall Mounted Air Supply/Exhaust Power Vented Ignition...
