Option 2: Audio Distribution System; Video Cameras; Irrigation - Cortexa Technology 7202 Installation Pre-Wire Manual

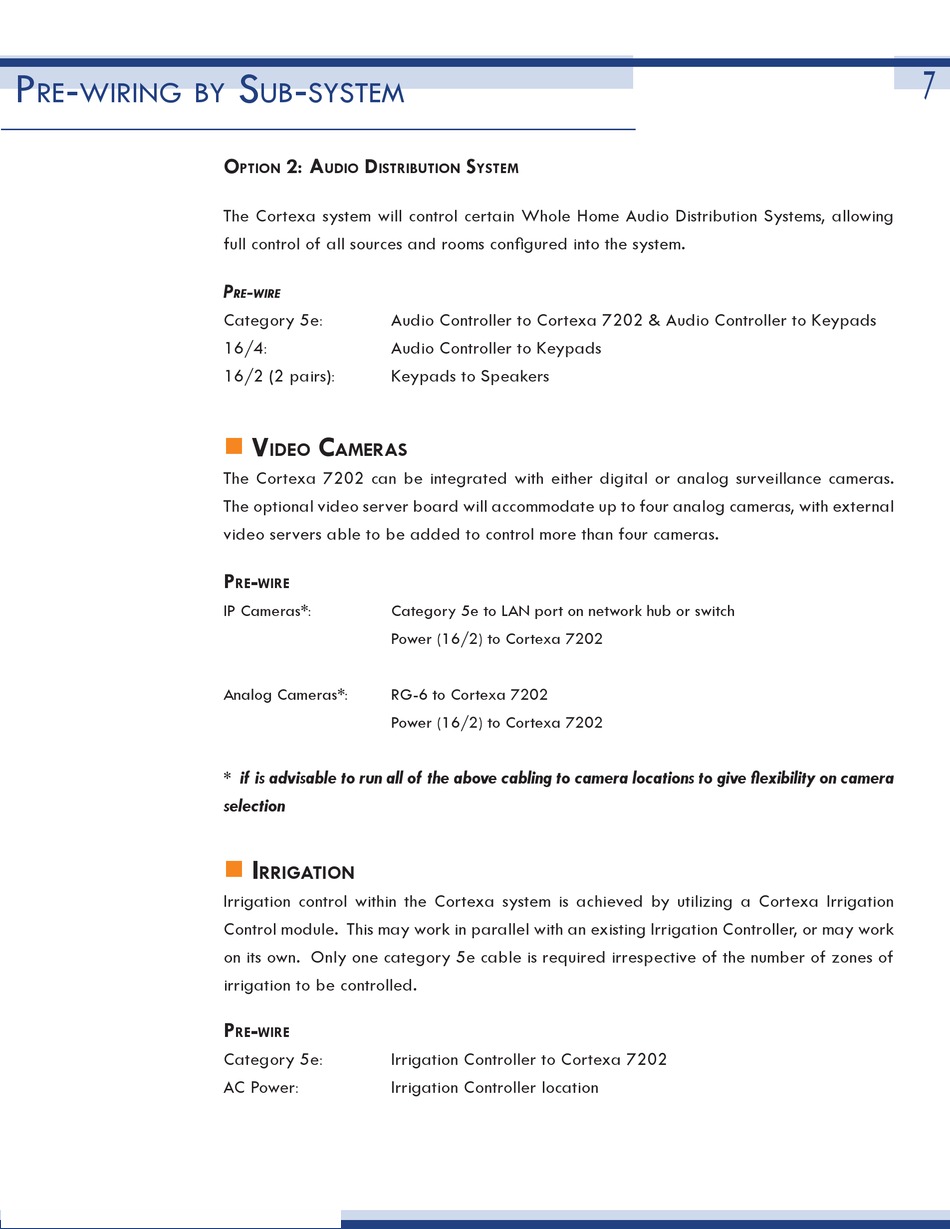

P -
re wIrInG by
s -
ub system
o 2: a d
Ption udio iStriBution
The Cortexa system will control certain Whole Home Audio Distribution Systems, allowing
full control of all sources and rooms configured into the system.
P -
re wire
Category 5e: Audio Controller to Cortexa 7202 & Audio Controller to Keypads
16/: Audio Controller to Keypads
16/2 (2 pairs): Keypads to Speakers
V C
n
ideo ameraS
The Cortexa 7202 can be integrated with either digital or analog surveillance cameras.
The optional video server board will accommodate up to four analog cameras, with external
video servers able to be added to control more than four cameras.
P -
re wire
IP Cameras*: Category 5e to LAN port on network hub or switch
Power (16/2) to Cortexa 7202
Analog Cameras*: RG-6 to Cortexa 7202
Power (16/2) to Cortexa 7202
* if is advisable to run all of the above cabling to camera locations to give flexibility on camera
selection
i
n
rrigation
Irrigation control within the Cortexa system is achieved by utilizing a Cortexa Irrigation
Control module. This may work in parallel with an existing Irrigation Controller, or may work
on its own. Only one category 5e cable is required irrespective of the number of zones of
irrigation to be controlled.
P -
re wire
Category 5e: Irrigation Controller to Cortexa 7202
AC Power: Irrigation Controller location
