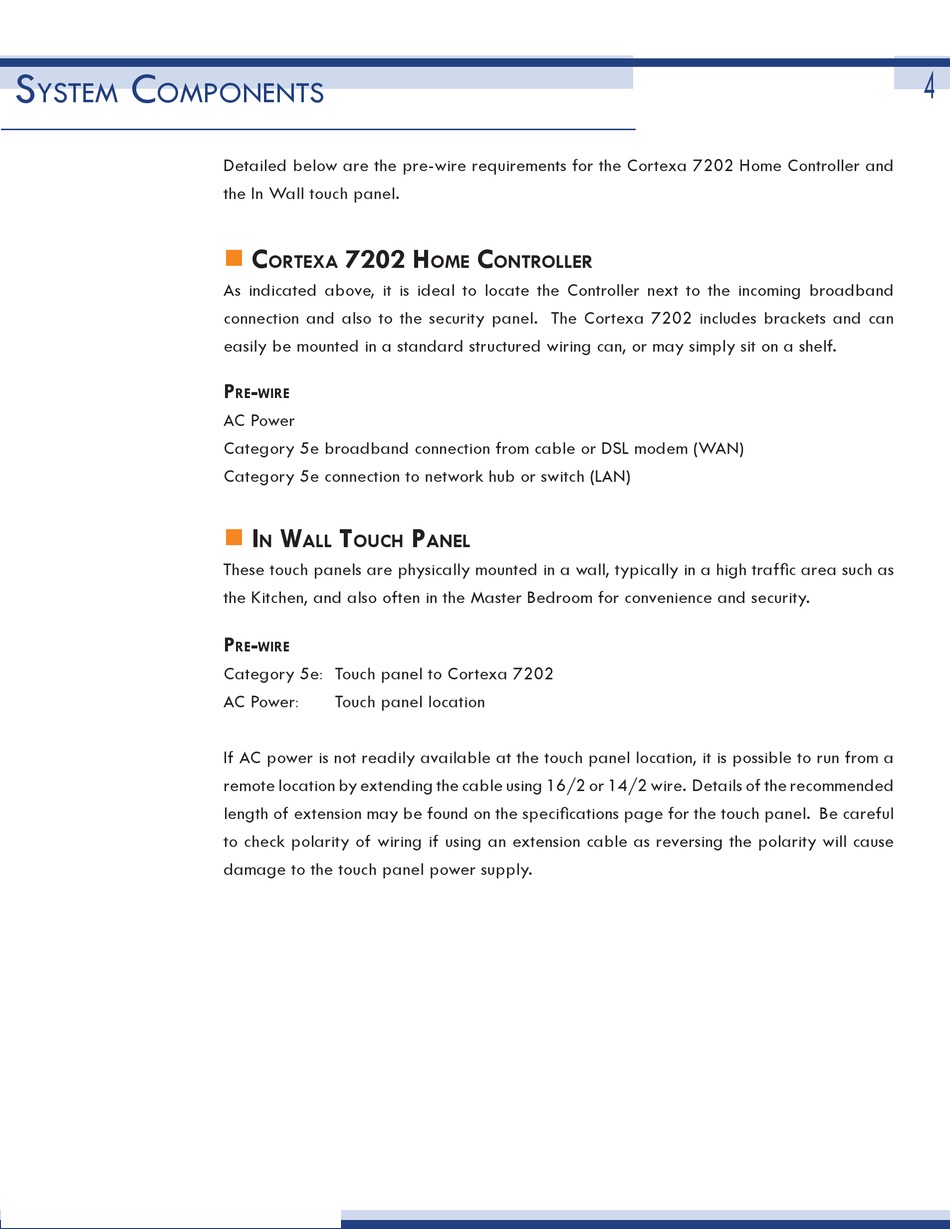

System Components - Cortexa Technology 7202 Installation Pre-Wire Manual

s c
ystem omPonents
Detailed below are the pre-wire requirements for the Cortexa 7202 Home Controller and
the In Wall touch panel.
n C 7202 H
ortexa
As indicated above, it is ideal to locate the Controller next to the incoming broadband
connection and also to the security panel. The Cortexa 7202 includes brackets and can
easily be mounted in a standard structured wiring can, or may simply sit on a shelf.
P -
re wire
AC Power
Category 5e broadband connection from cable or DSL modem (WAN)
Category 5e connection to network hub or switch (LAN)
i w t
n
n all ouCH
These touch panels are physically mounted in a wall, typically in a high traffic area such as
the Kitchen, and also often in the Master Bedroom for convenience and security.
P -
re wire
Category 5e: Touch panel to Cortexa 7202
AC Power: Touch panel location
If AC power is not readily available at the touch panel location, it is possible to run from a
remote location by extending the cable using 16/2 or 1/2 wire. Details of the recommended
length of extension may be found on the specifications page for the touch panel. Be careful
to check polarity of wiring if using an extension cable as reversing the polarity will cause
damage to the touch panel power supply.
