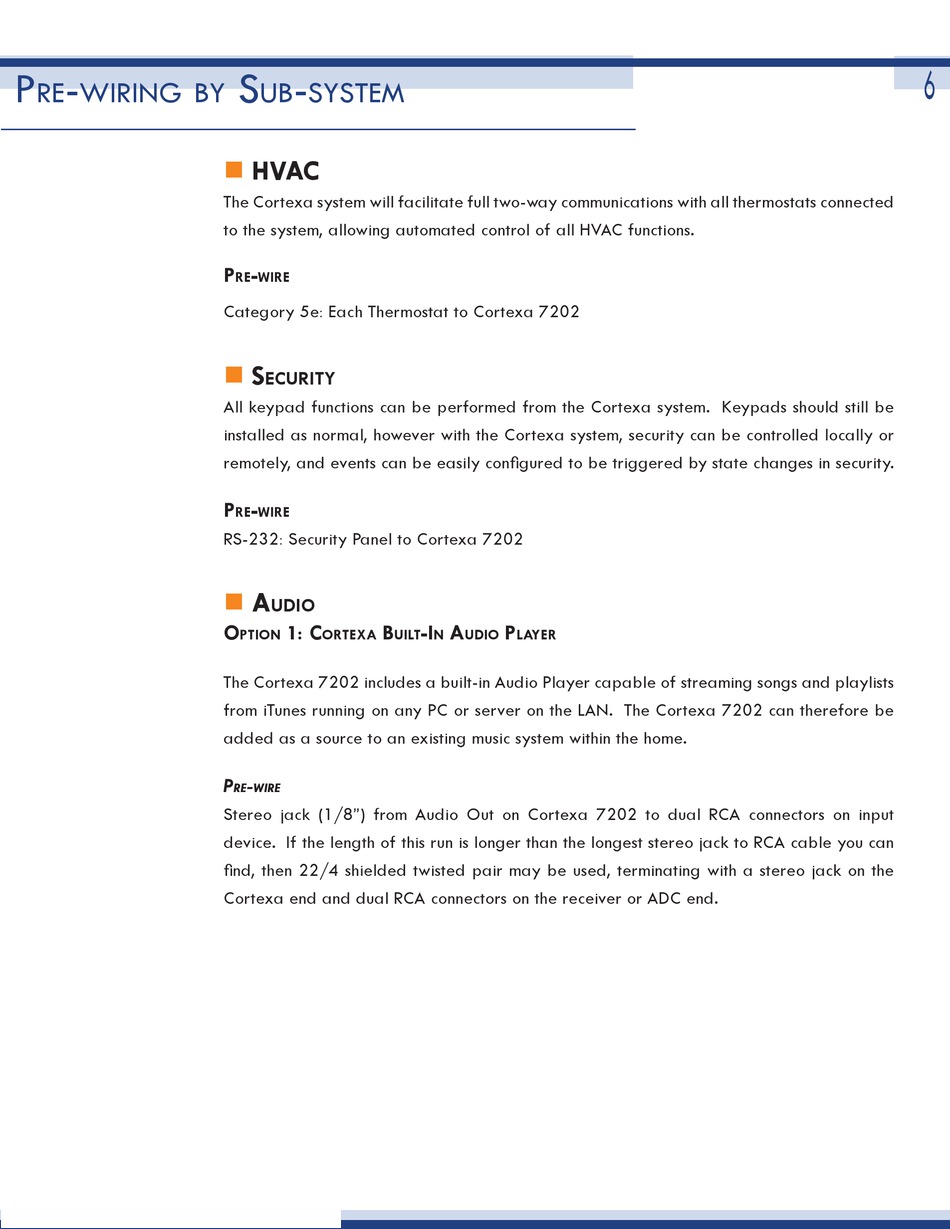

Pre-Wiring By Sub-System; Hvac; Security; Audio - Cortexa Technology 7202 Installation Pre-Wire Manual

P -
re wIrInG by
s -
ub system
n

HVaC

The Cortexa system will facilitate full two-way communications with all thermostats connected
to the system, allowing automated control of all HVAC functions.
P -
re wire
Category 5e: Each Thermostat to Cortexa 7202
n S
eCurity
All keypad functions can be performed from the Cortexa system. Keypads should still be
installed as normal, however with the Cortexa system, security can be controlled locally or
remotely, and events can be easily configured to be triggered by state changes in security.
P -
re wire
RS-22: Security Panel to Cortexa 7202
n a
udio
o 1: C B
Ption ortexa uilt
The Cortexa 7202 includes a built-in Audio Player capable of streaming songs and playlists
from iTunes running on any PC or server on the LAN. The Cortexa 7202 can therefore be
added as a source to an existing music system within the home.
P -
re wire
Stereo jack (1/8") from Audio Out on Cortexa 7202 to dual RCA connectors on input
device. If the length of this run is longer than the longest stereo jack to RCA cable you can
find, then 22/4 shielded twisted pair may be used, terminating with a stereo jack on the
Cortexa end and dual RCA connectors on the receiver or ADC end.
-i a P
n udio layer
6
