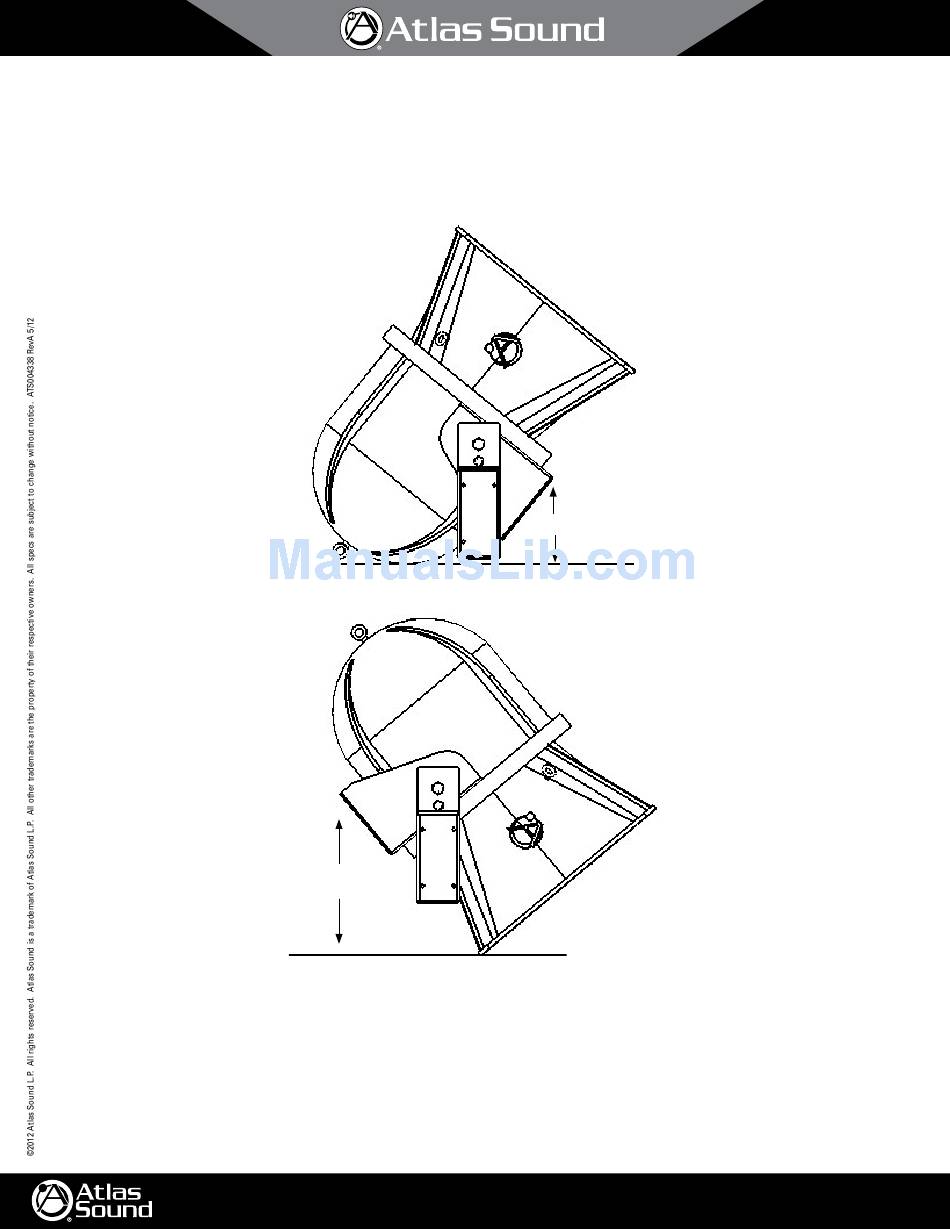

Assure that the AH speaker can be mounted in a manner that the sound pattern will be directed in the desired direction without any physical
interference. Note that the AH speaker mounting bracket allows the speaker to be tilted in excess of 50° in either direction. See illustration
below.
Weep-holes (for drainage) (AH5040S, AH9040S, and AH6565S 15" models only) are located on the same side as the input connectors. If the speaker is
tilted above parallel to the ground, the speaker should be installed with the weep holes down for water drainage.
