ProForm SMART STRIDER User Manual page 12

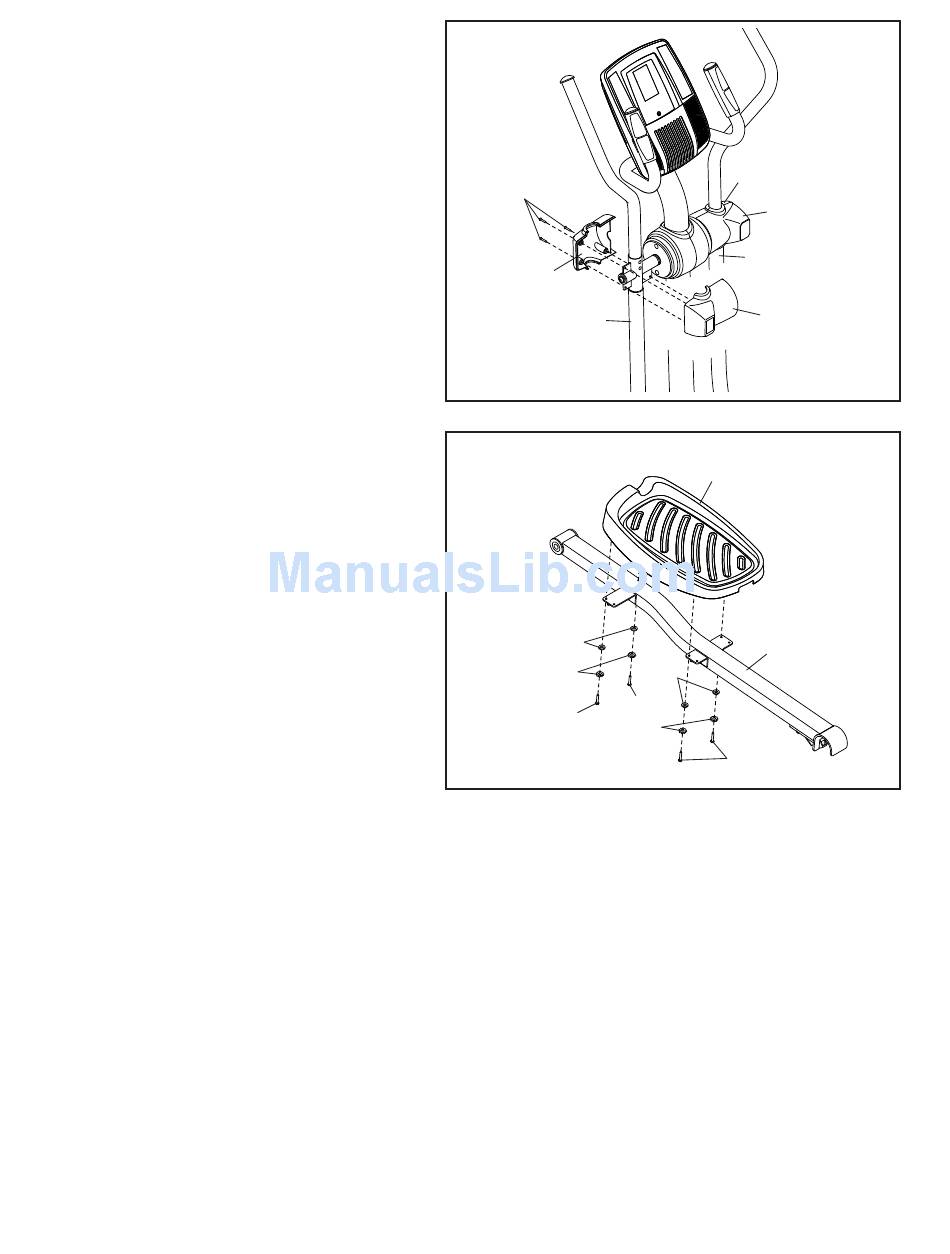

13. Hold the Left Front Arm Cover (18) and the
Left Rear Arm Cover (19) around the Left
Upper Body Leg (11).
Attach the Arm Covers (18, 19) with three
M4 x 32mm Round Head Screws (105).
Attach the Right Front Arm Cover (20)
and the Right Rear Arm Cover (21) in the
same way.
14. Identify the Left Pedal (13) and the Left
Pedal Arm (14).
Attach the Left Pedal (13) to the Left Pedal
Arm (14) with an M4 x 50mm Screw (108),
three M4 x 16mm Blunt Screws (104),
four M4 Split Washers (112), and four M4
Washers (102).
Attach the Right Pedal (not shown) to the
Right Pedal Arm (not shown) in the same
way.
13
105
18
11
14
102
112
108
104
112
12
20
21
12
19
13
14
102
104
