Summary of Contents for Eiki LC-XE10

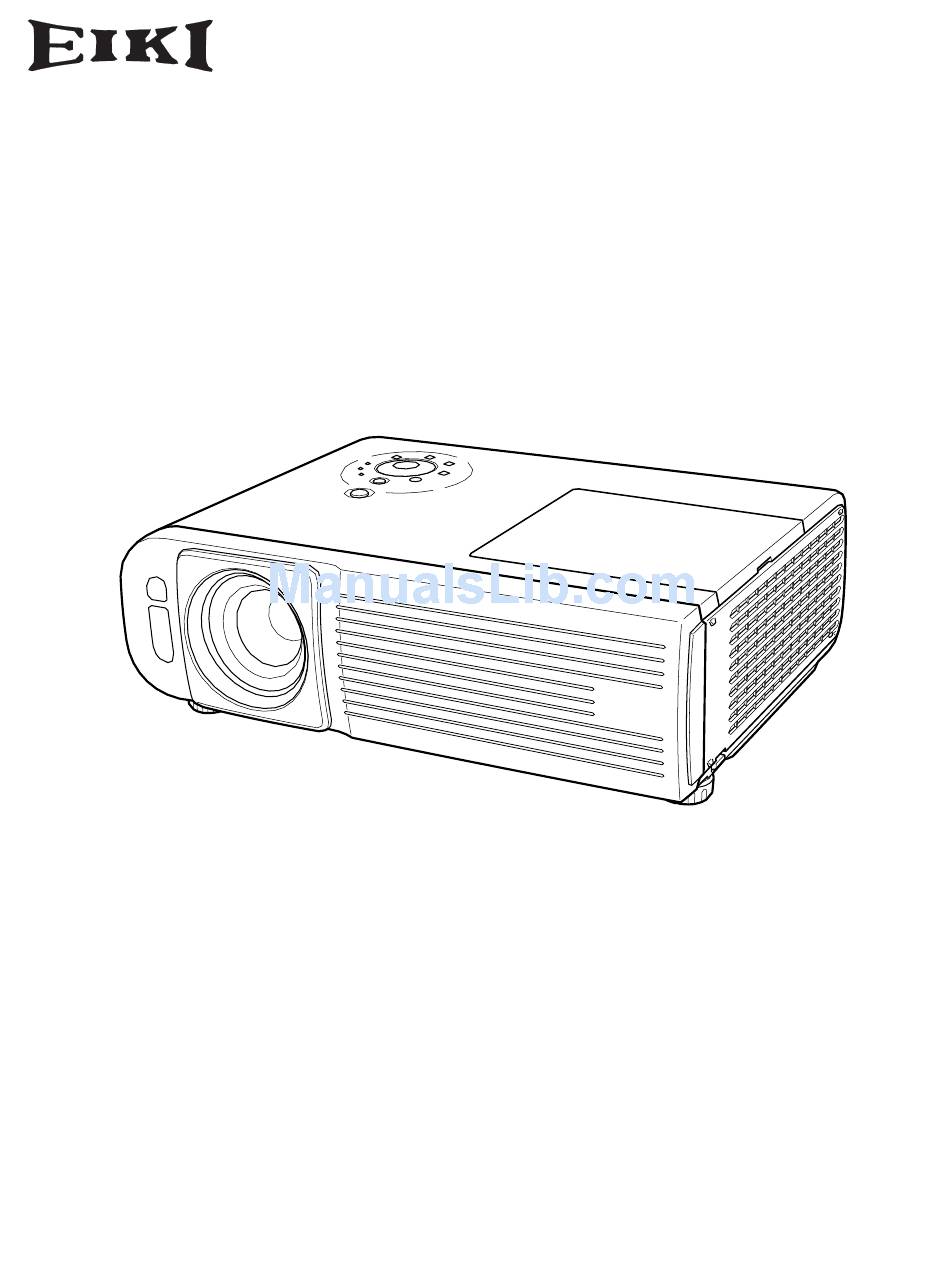

- Page 1 MULTIMEDIA PROJECTOR LC-XE10 MODEL OWNER'S INSTRUCTION MANUAL www.touchboards.com 205 Westwood Ave.Long Branch, NJ 07740 1-866-942-6273 Sales@touchboards.com...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Computer Input Input Source Selection To the Owner Computer System Selection Computer Adjustment (Auto) Computer Adjustment (Manual) Safety Instructions Image Level Selection Image Level Adjustment Installing the Projector in Proper Position Screen Size Adjustment Air Circulation Moving the Projector Video Input... -
Page 3: To The Owner
To the Owner Before operating this projector, read this manual thoroughly Safety Precaution and operate the projector properly. This projector provides many convenient features and WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC functions. Operating the projector properly enables you to SHOCK, DO NOT EXPOSE THIS APPLIANCE manage those features and maintains it in better condition for TO RAIN OR MOISTURE. -
Page 4: Safety Instructions
Safety Instructions All the safety and operating instructions should be read before This projector should be operated only from the type of power the product is operated. source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or Read all of the instructions given here and retain them for later local power company. -
Page 5: Installing The Projector In Proper Position
Safety Instructions Installing the Projector in Proper Position Install the projector properly. Improper installation may reduce the lamp lifetime and cause a fire hazard. 20˚ Do not put the projector on either Do not tilt the projector more than side to project an image. 20 degrees above and below. -
Page 6: Compliance
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Numbers : LC-XE10 Trade Name : Eiki Responsible party : EIKI International, Inc. -
Page 7: Connecting The Ac Power Cord
Compliance Connecting the AC Power Cord This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system. -
Page 8: Features And Design
Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. Compact Design Power Management This projector is extremely compact in size and weight. -
Page 9: Part Names And Functions
Part Names and Functions Infrared Remote Receiver Front Auto Set Up Sensor Read screen condition in Auto Set Up operation. Do not cover or dirt this sensor face. See page 21. Lens Cover (See page 56 for attaching.) Projection Lens Top Controls and Indicators Lamp Cover Exhaust Vent... -
Page 10: Terminal
Part Names and Functions Terminal COMPUTER IN 2 / MONITOR OUT COMPUTER IN 1 R - AUDIO IN - L (MONO) DVI - I SERVICE PORT S - VIDEO VIDEO / Y – Pb/Cb – Pr/Cr AUDIO IN 1 AUDIO IN 2 AUDIO OUT RESET (VARIABLE) -
Page 11: Top
Part Names and Functions This projector has control buttons and indicators on its top. POWER ON–OFF button LAMP REPLACE indicator Turns the projector on or off. (p19) Turns yellow when the life of the projection lamp draws to an end. (p45, 49) AUTO SET UP button POINT (Up/Down/Left/Right ) button Operate AUTO SET UP function. -
Page 12: Remote Control
Part Names and Functions L-CLICK button Acts as left click for wireless mouse operation. (p14) Remote Control SIGNAL EMISSION indicator This indicator lights red while the laser beam is being emitted from the laser light window or a signal is being sent from the remote control to the projector. AUTO PC button Operates the Auto PC adjustment function. -
Page 13: Laser Pointer Function
Part Names and Functions Laser Pointer Function This remote control emits a laser beam as Laser pointer function from the laser light window. When the LASER button is pressed, laser light goes on. When the LASER button is being pressed for more than 1 minute or the LASER button is released, light goes off. -
Page 14: Remote Control Code
Part Names and Functions Remote Control Code This projector has eight different remote control codes (Code 1-Code 8); the factory-set, initial code (Code 1) and the other seven codes (Code 2 to Code 8). This switching function prevents remote control interference when operating several projectors or video equipment at the same time. -
Page 15: Remote Control Operating Range
Part Names and Functions Remote Control Operating Range Point the remote control toward the projector (Infrared Remote Receiver) whenever pressing any button. Maximum operating range for the remote control is about 16.4’ (5m) and 60° in front of the projector. 16.4’... -
Page 16: Installation
Installation Positioning the Projector This projector is designed to project on a flat projection surface and can be focused from 4.3’(1.3m) - 33.1’(10.1m). Refer to the figure and the table below for the screen size and the distance between the projector and the screen. A : B = 9 : 1 33.1' (10.1m) 300”... -
Page 17: Connecting To A Computer
Installation Connecting to a Computer Cables used for connection (✽ = These accessories are not supplied with this projector.) • VGA Cable (HDB 15 pin) ✽ • USB Cable • DVI-VGA Cable (HDB 15 pin) ✽ • MAC Adapter (When connecting to Macintosh computer) •... -
Page 18: Connecting To Video Equipment
Installation Connecting to Video Equipment Cables used for connection ✽ = These accessories are not supplied with this projector.) • Video Cable (RCA x 1) ✽ • Audio Cables (Mini Plug (stereo) x 2 or RCA x 2) ✽ • Video Cable (RCA x 3) ✽ •... -
Page 19: Basic Operation
Basic Operation Turning On the Projector Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector's AC power cord into an AC outlet. The POWER indicator flashes red in a moment and turns on red. Press the POWER ON-OFF button on the top control or on the remote control. -
Page 20: Zoom Adjustment
Basic Operation Zoom Adjustment Press ZOOM/FOCUS button on Top Control or ZOOM L/M button on Remote Control Unit. The message “Zoom” is displayed. Zoom Press ZOOM L button or POINT UP button to make image larger, and press ZOOM M button or POINT DOWN button to make image smaller. -
Page 21: Auto Set Up Function
Basic Operation Keystone correction (Corner) Press the Point UP/DOWN button to move the red arrow pointer to Corner and then press the SELECT button. The mark will appear on the screen. Move the projector, align the mark with the center of the desired screen and press the SELECT button. An arrow will appear on the upper left corner of the screen. -
Page 22: No Show Function
Basic Operation No Show Function Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When a projected image is captured and set as “User”... -
Page 23: On-Screen Menu
AUTO PC Basic Operation D.ZOOM FREEZE NO SHOW IMAGE TIMER On-Screen Menu PAGE AUTO SET MUTE You can control and adjust this projector through the On-Screen Remote Control Menu. Refer to the following pages to operate each adjustment POINT button •£... -
Page 24: Menu Bar
Basic Operation Menu Bar For computer source Guide Window PC System Menu Image Select Menu Screen Menu Setting Menu Shows the selected Used to select Used to select an Used to adjust size Used to change Menu of the On- computer system. -
Page 25: Computer Input
Computer Input Input Source Selection INPUT button Direct Operation Computer 1 Choose either Computer 1 or Computer 2 by pressing the INPUT button on the top control or press the COMPUTER 1 or COMPUTER 2 ✽ Computer 2 button on the remote control. Before using these buttons, correct input source should be selected through menu operation as described below. -
Page 26: Computer System Selection
Computer Input Computer System Selection This projector can detect most of the current computer systems with the Multi-scan system and the Auto PC adjustment function provided in the projector. When selecting computer input, the projector automatically displays the most proper image for the input signal. -
Page 27: Computer Adjustment (Auto)
Computer Input Computer Adjustment (Auto) Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal, and Vertical to conform to your computer. Auto PC Adjustment function can be operated as follows. Press the MENU button and the On-Screen Menu will appear. PC Adjust Menu Press the Point Left/Right button to move the red frame pointer to the PC Adjust Menu icon. -
Page 28: Computer Adjustment (Manual)
Computer Input Computer Adjustment (Manual) Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. This projector has Manual PC Adjustment to enable you to precisely adjust several parameters to match those signal formats. The projector has 5 independent memory areas to memorize those parameters manually adjusted. - Page 29 Computer Input Display area Select the resolution at the Display area dialog box. Press the SELECT button at the Display area icon and the Display area H Display area dialog appears. Adjusts the horizontal area displayed by this projector. Press the Point Left/Right button to decrease/increase value and then press the Display area SELECT button.
-
Page 30: Image Level Selection
Computer Input Image Level Selection Direct Operation IMAGE button Select an image level among Standard, Real, Image 1, Image 2, Image Standard 3, and Image 4 by pressing the IMAGE button on the top control or on the remote control. Real Standard Normal picture level preset on this projector. -
Page 31: Image Level Adjustment
Computer Input Image Level Adjustment Press the MENU button and the On-Screen Menu will appear. Image Adjust Menu Press the Point Left/Right button to move the red frame pointer to the Image Adjust Menu icon. Press the Point Down button to move the red frame pointer to Image Adjust Menu icon the item that you want to adjust, and then press the SELECT button. -
Page 32: Screen Size Adjustment
Computer Input Screen Size Adjustment This projector has a picture screen resize function, which enables you to display the desirable image size. Press the MENU button and the On-Screen Menu will appear. Screen Menu Press the Point Left/Right button to move the red frame pointer to the Screen Menu icon. -
Page 33: Video Input
Video Input Input Source Selection {Video, S-Video, (Y, Pb/Cb, Pr/Cr)} Direct Operation Choose Video by pressing the INPUT button on the top control or the INPUT button VIDEO button on the remote control. Before using these buttons, correct input source should be selected Video through menu operation as described below. -
Page 34: Input Source Selection (Rgb Scart 21-Pin)
Video Input Input Source Selection (RGB Scart 21-Pin) Direct Operation Choose Computer 2 by pressing the INPUT button on the top control INPUT button or press the COMPUTER 2 button on the remote control. Before using these buttons, correct input source should be selected Computer 1 through menu operation as described below. -
Page 35: Video System Selection
Video Input Video System Selection Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the AV System Menu icon. Press the Point Down button to move the red arrow pointer to the system that you want to select and then press the SELECT button. -
Page 36: Image Level Selection
Video Input Image Level Selection Direct Operation Select an image level among Standard, Cinema, Image 1, Image 2, IMAGE button Image 3, and Image 4 by pressing the IMAGE button on the top Standard control or on the remote control. Cinema Standard Normal picture level preset on this projector. -
Page 37: Image Level Adjustment
Video Input Image Level Adjustment Press the MENU button and the On-Screen Menu will appear. Image Adjust Menu Press the Point Left/Right button to move the red frame pointer to the Image Adjust Menu icon. Press the Point Down button to move the red frame pointer to Image Adjust Menu icon the item that you want to adjust and then press the SELECT button. -
Page 38: Screen Size Adjustment
Video Input Reset Resets all adjustment to their previous figure. Store To store the adjustment data, move the red frame pointer to the Store Image Level Menu icon and press the SELECT button. The Image Level Menu will Move the red frame pointer appear. -
Page 39: Setting
Setting Setting Press the MENU button and the On-Screen Menu will appear. Setting Menu (Language) Press the Point Left/Right button to move the red frame pointer to the Setting Menu icon. Press the Point Down button to move the red frame pointer to Set the red frame Setting Menu icon the item that you want to set and then press the SELECT... - Page 40 Setting Capture Logo This function decides what to be displayed when starting up. User ···· the image you captured Default ···· the factory-set logo ···· count-down only Capture This function is used to capture the image being projected and use it for a starting-up display or interval of presentations.
- Page 41 Setting Power management Power management For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the input signal is interrupted and no button is pressed for 30 seconds Time left until Lamp or more.
- Page 42 Setting Remote control Remote control This projector provides eight different remote control codes (Code 1- Code 8); the factory-set, initial code (Code 1) and the other seven codes (Code 2 to Code 8). This switching function prevents remote control interference when operating several projectors or video equipment at the same time.
-
Page 43: Maintenance And Cleaning
Maintenance and Cleaning Warning Indicator The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the WARNING indicator is flashing red When the temperature inside the projector exceeds the normal TOP CONTROL temperature, the projector is automatically shut down to protect the... -
Page 44: Cleaning The Air Filters
Maintenance and Cleaning Cleaning the Air Filters Air filters prevent dust from accumulating on the surface of the optical elements inside the projector. Should the air filters become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat build up and adversely affect the life of the projector. -
Page 45: Lamp Replacement
ORDER REPLACEMENT LAMP Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer. Model No. of your projector LC-XE10 Replacement Lamp Type No. POA-LMP68 (Service Parts No. 610 308 1786) -
Page 46: Lamp Replace Counter
Maintenance and Cleaning Lamp Replace Counter Be sure to reset the lamp replace counter after the lamp is replaced. When the lamp replace counter is reset, the LAMP REPLACE indicator stops lighting. Turn the projector on, press the MENU button and the On- Screen Menu will appear. -
Page 47: Appendix
Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described in "Connecting to a Computer" and “Connecting to Video Equipment” on page17 and 18. –... - Page 48 Appendix – Try these solutions. Problem: – Select Computer 2 at the Terminal item in the Setting Menu. (See “Terminal” on page Computer 2 cannot be 40.) selected. – The Terminal item in the Setting Menu cannot be selected after Computer 2 is selected. The Terminal item Select other input source such as Computer 1 or Video with the INPUT button on the top cannot be selected.
-
Page 49: Indicators And Projector Condition
Appendix Indicators and Projector Condition Check the indicators for projector condition. Indicators Projector Condition LAMP WARNING POWER REPLACE red/green yellow The projector is OFF. (The AC power cord is unplugged.) The projector is preparing for stand-by or the projection lamp is being ✽... -
Page 50: Menu Tree
Appendix Menu Tree Computer Input/Video Input Go to System Input Computer 1 RGB( Analog ) RGB( PC Digital ) RGB( AV HDCP ) Computer 2 Go to System RGB( Scart ) Go to System Video Auto Go to System Video Go to System S-Video Y, Pb/Cb, Pr/Cr... - Page 51 Appendix Video Input Computer Input/Video Input Setting Language English System German Auto French Italian SECAM NTSC Spanish Portuguese NTSC 4.43 Dutch PAL-M PAL-N Swedish Russian System Auto Chinese 1080i Korean 1035i Japanese 720p Quit 575p Auto Set up Auto focus Quick/Detail/Off 480p Auto Keystone...
-
Page 52: Compatible Computer Specifications
Appendix Compatible Computer Specifications Basically this projector can accept a signal from all computers with the V, H-Frequency mentioned below and less than 140 MHz of Dot Clock. H-Freq. V-Freq. H-Freq. V-Freq. ON-SCREEN ON-SCREEN RESOLUTION RESOLUTION (kHz) (Hz) (kHz) (Hz) DISPLAY DISPLAY 86.96... -
Page 53: Technical Specifications
Appendix Technical Specifications Projector Type Multi-media Projector Dimensions 15.35" x 4.4" x 10.91" (390mm x 112mm x 277mm) (not including raised portions) (W x H x D) Net Weight 12.8 lbs (5.8 kg) LCD Panel System 0.99" TFT Active Matrix type, 3 panels Panel Resolution 1,024 x 768 dots Number of Pixels... -
Page 54: Configurations Of Terminals
Appendix Configurations of Terminals COMPUTER INPUT/MONITOR OUTPUT TERMINAL (ANALOG) Terminal : HDB15-PIN Pin Configuration Red Input +5V Power Green Input Ground (Vert.sync.) Blue Input Sense 0 Sense 2 DDC Data Ground (Horiz.sync.) Horiz. sync. Ground (Red) Vert. sync. Ground (Green) DDC Clock Ground (Blue) DVI-I TERMINAL (DIGITAL/ANALOG) -
Page 55: Optional Parts
Appendix SERVICE PORT CONNECTOR Terminal : Mini DIN 8-PIN Pin Configuration PS/2 Serial ----- R X D ----- ----- 8 7 6 DATA ----- ----- ----- RTS / CTS ----- ----- T X D ----- ----- ----- USB CONNECTOR (Series A) Pin Configuration - Data + Data... -
Page 56: Attaching The Lens Cover
Appendix Attaching the Lens Cover When moving this projector or when it is not used for an extended period, replace the lens cover. Thread the other end of the string through the hole Thread the string through the hole on the lens cover and then tie a knot in the string to secure it in place. -
Page 57: Usb Key Lock Function
Appendix USB Key Lock Function (This is optional function. Optionally supplied USB Key needed.) By using optionally supplied Projector USB Key, operation of the projector can be restricted by the projector owner. Once the projector is locked with the USB Key, only the owner who has key can operate the projector. Key registration USB Key lock Before using the USB key, you must register USB key into the... - Page 58 Appendix...
- Page 59 Appendix...
- Page 60 A-key to better communications U.S.A. Canada EIKI International, Inc. EIKI CANADA - Eiki International, Inc. 30251 Esperanza P.O. Box 156, 310 First St. - Unit 2, Rancho Santa Margarita Midland, ON, L4R 4K8, Canada CA 92688-2132 Tel : 800-563-3454 (705)-527-4084 U.S.A.
