Eiki LC-X800A Owner's Manual

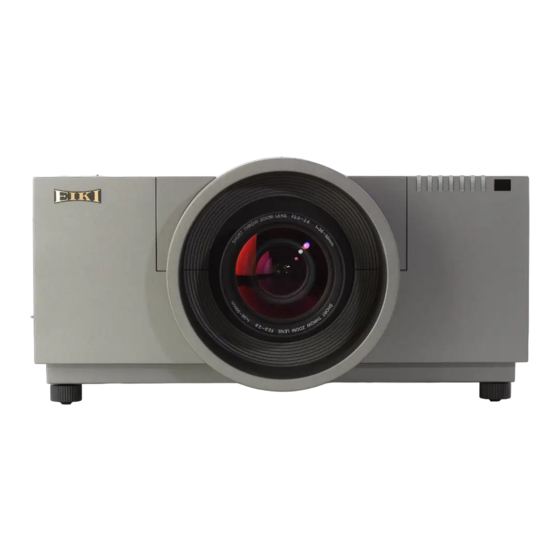

Multimedia projector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

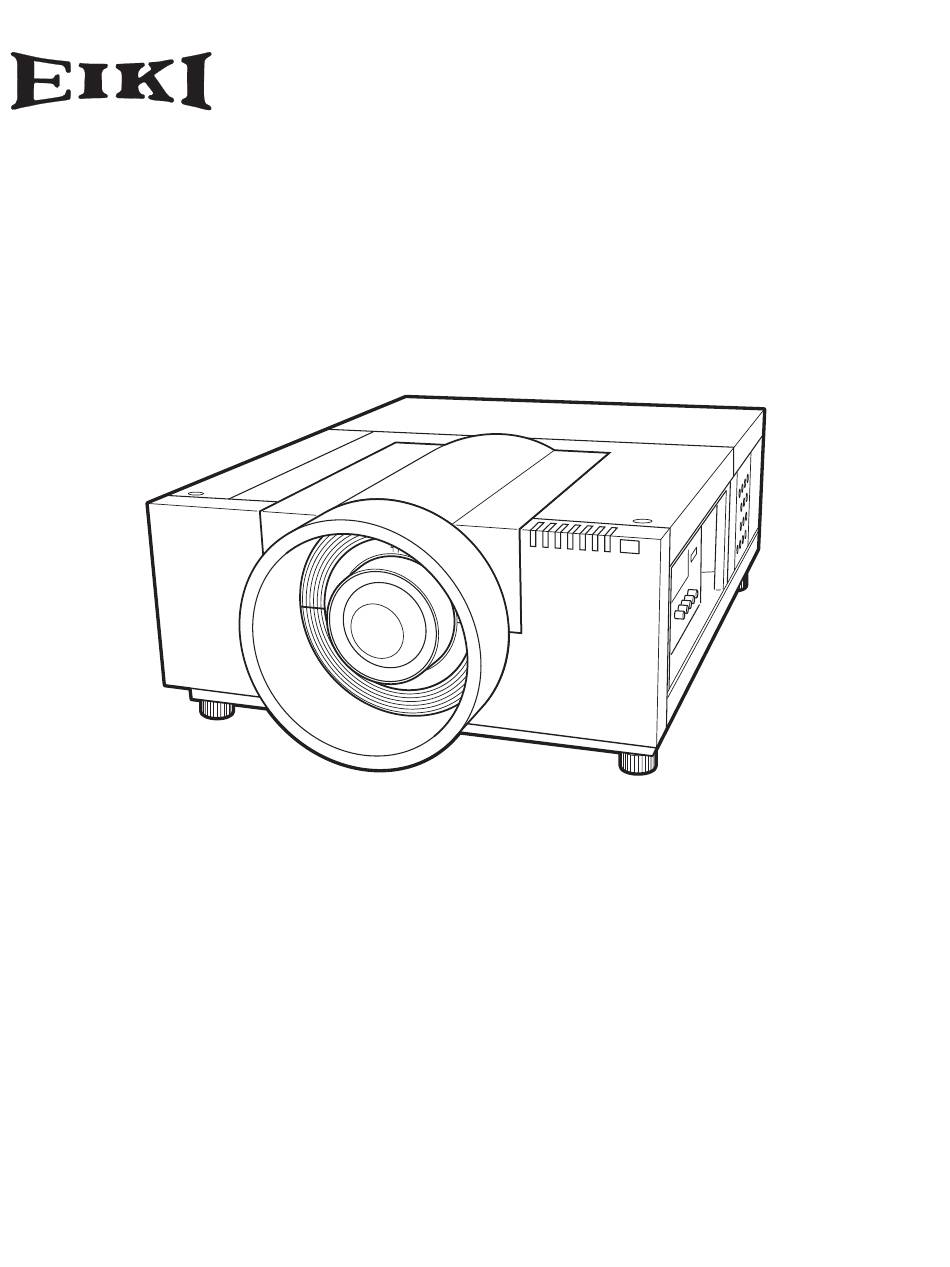

MULTIMEDIA PROJECTOR
LC-X800
MODEL
Projection lens is optional.
✽
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-X800A and is the answer not in the manual?

Questions and answers

Related Manuals for Eiki LC-X800A

Summary of Contents for Eiki LC-X800A

  • Page 1 MULTIMEDIA PROJECTOR LC-X800 MODEL Projection lens is optional. ✽ OWNER’S MANUAL...
  • Page 2 CORRECTION NOTICE The following is the correction to the owner's manual and the quick reference guide. Please refer to Voltage and Power Consumption on page 77 of the owner’s manual and on page 20 of the quick reference guide. AC 100–120 V (9.9 A Max. Ampere), 50/60 Hz (The U.S.A and Canada) AC 200–240 V (4.8 A Max.

  • Page 3: Features And Design

    Features and Design This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD) technology. Multilanguage Menu Display Functionally Rich ◆...

  • Page 4: Table Of Contents

    Table of Contents Features and Design . . . . . . . . . . . . . . . . 2 Video Input Source Selection Computer Input .

  • Page 5: To The Owner

    To The Owner Safety Precaution Before installing and operating the projector, read this manual thoroughly. WARNING: lTHIS APPARATUS MUST BE EARTHED . The projector provides many convenient features and lTO REDUCE THE RISK OF FIRE OR ELECTRIC functions. Operating the projector properly enables you to SHOCK, DO NOT EXPOSE THIS APPLIANCE TO manage those features and maintains it in good condition for RAIN OR MOISTURE .

  • Page 6: Safety Instructions

    Safety Instructions All the safety and operating instructions should be read This projector should be operated only from the type of before the product is operated. power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

  • Page 7: Air Circulation

    Safety Instructions Air Circulation IMPORTANT! Filter Maintenance!! Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect The projector uses a lamp which generates it from overheating, these openings must not be significant heat.

  • Page 8: Installing The Projector In Proper Directions

    Safety Instructions Installing the Projector in Proper Directions Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe accident or fire hazard. This projector can project the picture in upward, downward, or inclined position in perpendicular direction to the horizontal plane.

  • Page 9: Moving The Projector

    Safety Instructions Moving the Projector Retract the adjustable feet to prevent damage to lens and cabinet. For safety, holding the projector on both sides by 2 or more people is recommended to move the projector because the projector is heavy. When moving the projector by one person from necessity, hold the handle carefully.

  • Page 10: Compliance

    Compliance Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 11: Part Names And Functions

    Part Names and Functions Front q Lens Mount Cover w Projection Lens (Option) e Indicators r Infrared Remote Receiver (Front) t Adjustable Feet Terminals and Connectors u Handle i Side Control o Lamp Cover e r t !0 Infrared Remote Receiver (Rear) !1 Exhaust Vent CAUTION Back Hot air is exhausted from the exhaust...

  • Page 12: Terminals And Connectors

    Part Names and Functions Terminals and Connectors ✽ DVI INPUT TERMINAL q SERIAL PORT IN TERMINAL Connect computer output (Digital/DVI-D type) to If you control the projector by computer, you must this terminal (p.20). connect a cable (not supplied) from your computer HD (HDCP Compatible) signal can be also to this terminal.

  • Page 13: Side Control And Indicators

    Part Names and Functions Side Control and Indicators INDICATORS SIDE CONTROLS Side Control ON/STAND-By button LENS SHIFT button Turn the projector on or off (pp.23,24). Select the LENS SHIFT function (p.27). ZOOM button FOCUS button Zoom in and out the images (p.27). Adjust the focus (p.27).

  • Page 14: Indicators

    Part Names and Functions Indicators q LAMP Indicator This indicator is dim when the projector is turned on. And bright when the projector is in stand-by mode (pp.72-74). w READy indicator This indicator lights green when the projector is ready to be turned on. And it flashes green in Power Management mode (pp.52, 72-74).

  • Page 15: Remote Control

    Part Names and Functions Remote Control q ON/STAND-By button Turn the projector on or off (pp.23-24). w AUTO PC button Automatically adjust the computer image to its optimum setting (pp.29, 35). e LIGHT button Light the buttons on the remote control for about 10 seconds.

  • Page 16: Remote Control Battery Installation

    Part Names and Functions Remote Control Battery Installation Open the battery Install new batteries into Replace the compartment lid. the compartment. compartment lid. Two AA size batteries For correct polarity (+ and –), Pull up the lid be sure battery terminals are and remove it.

  • Page 17: Remote Control Code

    Part Names and Functions Remote Control Code The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control.

  • Page 18: Installation

    Installation Lens Installation Before setting up the projector, install Projection Lens on the projector. Before installation, check where the projector is used and prepare a suitable lens. For the specifications of Projection Lens, contact sales dealer where you purchased the projector. - Do not use the optional lens below for this projector .

  • Page 19: Positioning Projector

    Installation Positioning Projector SCREEN This projector is designed to project on a flat projection surface. Note: ✔ • Brightness in room has a great influence on picture quality. It is recommended to limit ambient lighting in order to provide the best image. Lens Shift Adjustment Projection lens can be moved from side to side and up and down with the motor-driven lens shift function.

  • Page 20: Terminals Of Projector

    Installation Terminals of Projector The projector has two replaceable Interface board slots. The projector's functions can be extended by installing the optional interface boards into the terminal slots. 2 vacant slots (Input 3 and 4) are provided in your purchasing the projector. For the Optional Interface Boards, contact sales dealer where you purchased the projector.

  • Page 21: Connecting To Computer

    Installation Connecting to Computer Cables used for connection • VGA Cable (D-sub 15 pin) * • DVI Cable • BNC Cable (BNC x 5) ( *One cable is supplied; Other cables are not supplied with this projector.) Laptop type Desktop type Monitor Output Monitor Output Monitor Output...

  • Page 22: Connecting To Video Equipment

    Installation Connecting to Video Equipment Cables used for connection • Video Cable (BNC x 3, BNC x 1) • SCART-VGA Cable • DVI Cable • S-Video Cable ( Cables are not supplied with the projector.) Component video output equipment. Video Source (example) (such as DVD player or Video Disc Player Video Cassette Recorder...

  • Page 23: Connecting The Ac Power Cord

    Installation Connecting the AC Power Cord This projector uses nominal input voltages of 100-120 or 200–240 V AC. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service center.

  • Page 24: Basic Operation

    Basic Operation Turning On the Projector Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet and turn on the MAIN ON/OFF Switch. The LAMP indicator lights red and the READY indicator lights green.

  • Page 25: Turning Off The Projector

    Basic Operation Turning Off the Projector Press the ON/STAND-BY button on the side control or on the remote control, and “Power off?” appears on the screen. Press the ON/STAND-BY button on the side control or on the remote control again to turn off the projector.

  • Page 26: How To Operate The On-Screen Menu

    Basic Operation How to Operate the On-Screen Menu Side Control The projector can be adjusted or set via the On-Screen Menu. For each adjustment and setting procedure, refer to the respective sections in this manual. MENU button Press the MENU button on the side control or the remote control to display the On-Screen Menu.

  • Page 27: Menu Bar

    Basic Operation Menu Bar For detailed functions of each menu, see “Menu Tree” on pages 69-71. For Computer Source Image Adjust Menu Guide Window Used to adjust the computer image. [Contrast/Brightness/ Show the selected Menu of the On-Screen Menu. Color management/Auto picture control/Advanced color/Color temp./White balance (R/G/B)/Offset (R/G/B)/ Input Menu Sharpness/Gamma/Reset/Store] (pp.

  • Page 28: Operating With Projector Control

    Basic Operation Operating with Projector Control Zoom Adjustment Side Control Press the ZOOM button and “Zoom” will be displayed ZOOM button on the screen. And then press the point buttons to zoom in and out the image. FOCUS button Focus Adjustment Press the FOCUS button and “Focus”...
  • Page 29 Basic Operation Information Information Menu Information display can be used to confirm the current operating condition of the projector and the signal being projected through the projector. Information Menu Press the INFORMATION button to display the information window on the screen. To hide the information window, press the INFORMATION button again or Point buttons.

  • Page 30: Operating With Remote Control

    Basic Operation Operating with Remote Control Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. AUTO PC button Remote Control Press the AUTO PC button on the remote control to operate the Auto PC Adj.
  • Page 31 Basic Operation Remote Control SHUTTER button See pages 27 and 55 for details. SHUTTER button FILTER button Press and hold the FILTER button for more than five seconds to replace the filter mechanically. See page 51 for details. ✔ Note: IMAGE ADJ .

  • Page 32: Input Selection

    Input Selection Input Side Control Side Control button operation INPUT button INPUT 1 INPUT 2 INPUT button INPUT 3 INPUT 4 Side Control Operation Press the INPUT button on the side control. It switches to INPUT 1, INPUT 2, INPUT 3 and INPUT 4 as you press the INPUT button.

  • Page 33: Computer Input Source Selection

    Input Selection Computer Input Source Selection Menu Operation When Selecting the INPUT 1 with DVI/D-sub 15 terminals Press the MENU button to display the On-Screen Menu. INPUT MENU Use the Point 7 8 buttons to move the red frame pointer to the INPUT Menu icon.

  • Page 34: Video Input Source Selection

    Input Selection Video Input Source Selection Menu Operation When Selecting the INPUT 1 with DVI/D-sub 15 terminals INPUT MENU When connecting to video equipment, select the type of Video source in the Source Select Menu. Input Menu icon RGB (Scart) When scart video equipment is connected to the INPUT 1 Move the pointer (red arrow) to Input (ANALOG) terminal, select RGB (Scart).

  • Page 35: Computer Input

    Computer Input Computer System Selection Automatic Multi-Scan System This projector automatically tunes to various types of computers (refer to “Compatible Computer Specifications” on pages 75-76). If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Some computers need to be set manually.) One of the following messages may appear when: When the projector cannot recognize the...

  • Page 36: Auto Pc Adjustment

    Computer Input Auto PC Adjustment Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer. Remote Control Direct Operation The Auto PC adjustment function can be operated directly by pressing the AUTO PC button on the remote control or the AUTO PC ADJ.

  • Page 37: Manual Pc Adjustment

    Computer Input Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-Scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those special signal formats. The projector has 10 independent memory areas to store those manually adjusted parameters. It allows you to recall the setting for a specific computer.
  • Page 38 Computer Input Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select [Yes]. All To clear the adjusted data . adjustments will return to their previous figures. Mode free To clear the adjusted data, select Mode free and then press the SELECT button.

  • Page 39: Image Level Selection

    Computer Input Image Level Selection Direct Operation Remote Control Press the IMAGE SEL. button on the remote control to select the desired image level. Standard IMAGE SEL . button Real Image1 • • • Image 10 Menu Operation IMAGE SELECT MENU Press the MENU button to display the On-Screen Menu.

  • Page 40: Screen Size Adjustment

    Computer Input Screen Size Adjustment Select the desired screen size that conforms to the input signal source. Press the MENU button to display the On-Screen Menu. SCREEN MENU Use the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon.
  • Page 41 Computer Input SCREEN MENU Keystone This function is used to store or reset the keystone correction when the Main On/Off Switch is pressed to Off or the AC power cord is unplugged. Use the Point 7 8 buttons to switch between each option.

  • Page 42: Video Input

    Video Input Video System Selection Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the AV System Menu icon. Use the Point ed buttons to move the red arrow pointer to the desired system and then press the SELECT button.

  • Page 43: Image Level Selection

    Video Input Image Level Selection Direct Operation Press the IMAGE SEL. button on the remote control to Remote Control select the desired image level. Standard IMAGE SEL . button Cinema Image1 • • • Image 10 Menu Operation Press the MENU button to display the On-Screen Menu. IMAGE SELECT MENU Use the Point 7 8 buttons to move the red frame pointer to the Image Select Menu icon.

  • Page 44: Screen Size Adjustment

    Video Input Screen Size Adjustment Press the MENU button to display the On-Screen Menu. SCREEN MENU Use the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon. Use the Point ed buttons to move the red frame pointer Screen Menu icon to the desired function and then press the SELECT button.
  • Page 45 Video Input Keystone SCREEN MENU This function is used to store or reset the keystone correction when the Main On/Off Switch is pressed to Off or the AC power cord is unplugged. Use the Point 7 8 buttons to switch between each option.

  • Page 46: Picture Image

    Picture Image Image Adjustment Press the MENU button to display the On-Screen Menu. IMAGE ADJUST MENU Use the Point 7 8 buttons to move the red frame pointer to the Image Adjust Menu icon. Use the Point ed buttons to move the red frame pointer Image Adjust Menu icon to the desired item and then press the SELECT button to display the adjustment dialog box.
  • Page 47 Picture Image COLOR SELECTION MODE (continued) COLOR SELECTION MODE COLOR M . Level and phase Gamma Return to the COLOR MANAGEMENT POINTER. (If you adjustment palette. adjustment palette. press the MENU button on the side control or the remote control, it returns to the COLOR MANAGEMENT POINTER and you will need to reselect and readjust the color.) MENU Return to the IMAGE ADJUST Menu.
  • Page 48 Picture Image White balance (Red/Green/Blue) Press the Point 7 button to lighten red/green/blue tone; press the Point 8 button to deepen red/green/blue tone (from 0 to 63). Offset (Red/Green/Blue) Press the Point 7 button to lighten red/green/blue tone of the black level of an image;...

  • Page 49: Setting

    Setting Setting This projector has a Setting menu that allows you to set up other various functions. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer SETTING MENU (Language) to the Setting Menu icon.
  • Page 50 Setting Logo Logo This function allows you to customize the screen logo with Logo select, Capture, and Logo PIN code lock functions. ✔ Note: •When “On” is selected in the Logo PIN code lock function, Logo select and Capture functions cannot be selected. Logo select This function decides on the starting-up display from among the following options.
  • Page 51 Setting Logo PIN Code Lock Logo PIN code lock This function prevents an unauthorized person from changing the screen logo. Off ..The screen logo can be changed freely from the Logo Menu. On ..The screen logo cannot be changed without a Logo PIN code.
  • Page 52 Setting Lamp mode This Projector is equipped with 2 Projection Lamps and the number of using lamps can be switched to 2 lamps or 1 lamp. Using 1 lamp maintains the life of Projection Lamps. Note: ✔ To change over Lamp Mode •...
  • Page 53 Setting Remote control The eight different remote control codes (Code 1–Code 8) are assigned to the projector; the factory-set, initial code (Code 1) and the other seven codes (Code 2 to Code 8). Remote control The same code should be set on both the projector and the remote control.
  • Page 54 Setting On start When this function is set to “On, ” the projector will be automatically turned on just by connecting the AC power cord to the wall outlet. ✔ Note: • Make sure that the MAIN ON / OFF switch is ON, otherwise the On start function does not work.
  • Page 55 Setting Enter a PIN code Enter a PIN code Use the Point buttons on the side control or on the remote control to enter a number. Press the Point button to fix the number and move the red frame pointer to the next box. The number changes to “✳. ” Repeat this step to complete entering a four-digit number.
  • Page 56 Setting Shutter Shutter function is available to block out light to the screen, so that the screen can be used for the other presenters. Protection Prohibits the shutter operation from the remote control and the projector's side control. Remote control Selecting "On"...
  • Page 57 Setting Filter counter Filter counter This function is used to set a time for the filter replacement. Use the Point ed buttons to move the red frame pointer to Filter counter and then press the SELECT button. A dialog box appears Set the red frame pointer to the item and press the showing the Used time option and the Scrolls remaining option.

  • Page 58: Maintenance And Care

    Maintenance and Care Filter Instructions Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter becomes clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector. This projector has an electrically operated filter which helps you to replace the filter easily.

  • Page 59: Replacing The Filter Cartridge

    Maintenance and Care Replacing the Filter Cartridge Turn off the projector, press the Main On/Off Switch to Off and unplug the AC power cord from the AC outlet. Filter cover First, clean up the dust on the projector and around the air vents.

  • Page 60: Resetting The Filter Counter

    Maintenance and Care Resetting the Filter Counter Filter counter Be sure to reset the Filter counter after replacing the filter cartridge. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon.

  • Page 61: Lamp Management

    Maintenance and Care Lamp Management This Projector is equipped with 2 Projection Lamps to ensure brighter image and those lamps are controlled by the Lamp Management Function. The Lamp Management Function detects the status of lamps and shows the status on screen or on the LAMP 1/2 REPLACE indicators. This function also automatically controls the Lamp Mode when any of lamps is out for the end of life or malfunctions.

  • Page 62: Lamp Replacement

    Maintenance and Care Lamp Replacement When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP 1/2 REPLACE indicator lights orange. Replace the lamp with a new one promptly. The timing when the LAMP 1/2 REPLACE indicators should light is depending on the lamp mode.

  • Page 63: Resetting The Lamp Counter

    Maintenance and Care Resetting the Lamp Counter Be sure to reset the Lamp counter after the lamp is replaced. When the Lamp counter is reset, the LAMP 1/2 REPLACE indicator stops lighting and the Lamp replacement icon disappears. Lamp counter Press the MENU button to display the On-Screen Menu.
  • Page 64 Maintenance and Care LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard. Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same lifetime for each lamp.

  • Page 65: Cleaning The Projection Lens

    Maintenance and Care Cleaning the Projection Lens Turn off the projector, press the Main On/Off Switch to Off and unplug the AC power cord from the AC outlet before cleaning. Gently wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens.

  • Page 66: Warning Indicators

    Maintenance and Care Warning Indicators The WARNING indicators show the state of the function which protects the projector. Check the state of the WARNING TEMP . indicator and the LAMP indicator to take proper maintenance. The projector is shut down and the WARNING TEMP. Indicators indicator is blinking red.

  • Page 67: Appendix

    Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. 1. Make sure you have properly connected the projector to peripheral equipment as described on pages 20–21. 2. Check the cable connection. Make sure that all computers, video equipment, and power cords are properly connected.
  • Page 68 Appendix – The end of lamp life is approaching. Replace the lamp with a new one promptly. (See page 55.) appears on the screen – The filter is out of scroll. Replace the filter cartridge with a new one promptly. (See pages 57-58.) appears on the screen –Adjust the focus of the projector.
  • Page 69 Appendix The power is turned off – Power management function runs by initial setting. Check “SETTING” section on page automatically. You cannot operate with – The side control is not available If the side control is locked at “Key lock” under “Security”...

  • Page 70: Menu Tree

    Appendix Menu Tree Computer Input/Video Input Input Input 1 RGB (PC analog) Go to System RGB (Scart) RGB (PC digital) Go to System RGB (AV HDCP) Go to System Input 2 Go to System Y, Pb/Cb,Pr/Cr Go to System Video Go to System S-video Go to System...
  • Page 71 Appendix Computer Input System Image Select Mode 1 Standard Mode 2 Real SVGA 1 Image 1 SVGA 2 SVGA 3 Image 10 ✽ System displayed in the System Menu varies depending on the input signal. PC Adjust Screen Auto PC adj. Normal Fine sync.
  • Page 72 Appendix Computer Input/Video Input Setting Language 12 languages provided. Quit Menu Position/Simple Menu/Quit Display Off/Countdown Off/On Background Blue/User/Black Off/Default/User Logo Logo select Yes/No Capture Logo PIN code lock On/Off Logo PIN code change Quit Quit 2-Lamp mode/ 1-Lamp mode Lamp mode Lamp control Auto/Normal/Eco Filter control...

  • Page 73: Indicators And Projector Condition

    Appendix Indicators and Projector Condition Check the indicators for the projector condition. The projector is operating normally . Indicators Projector Condition WARNING WARNING LAMP 1/2 LAMP READY SHUTTER TEMP . FILTER REP . green blue orange orange The projector is off. (The main On/Off switch is OFF position or the AC power cord is unplugged.) The projector is in stand-by mode.
  • Page 74 Appendix The projector is detecting abnormal condition . Indicators Projector Condition WARNING WARNING LAMP 1/2 LAMP READY SHUTTER TEMP . FILTER REP . green blue orange orange The temperature inside the projector is elevated ✽ ✽ ✽ close to the abnormally high level. The temperature inside the projector is abnormally high.
  • Page 75 Appendix The projector is detecting abnormal condition . Indicators Projector Condition WARNING WARNING LAMP 1/2 LAMP READY SHUTTER TEMP . FILTER REP . green blue orange orange If the Filter counter reached a time set in the timer ✽ ✽ setting, a Filter replacement icon (Fig.2) appears on the screen and the WARNING FILTER indicator on the top panel lights up.

  • Page 76: Compatible Computer Specifications

    Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V- and H-Frequency mentioned below and less than 230 MHz of Dot Clock. PC Adjustment can be limited when these modes are selected. ON-SCREEN ON-SCREEN RESOLUTION H-Freq .(kHz) V-Freq .(Hz) RESOLUTION H-Freq .(kHz) V-Freq .(Hz)
  • Page 77 Appendix When an input signal is digital from the DVI terminal, refer to the chart below. ON-SCREEN ON-SCREEN RESOLUTION H-Freq .(kHz) V-Freq .(Hz) RESOLUTION H-Freq .(kHz) V-Freq .(Hz) DISPLAy DISPLAy D-VGA 640x480 31.470 59.940 D-SXGA+ 1 1400x1050 63.970 60.190 D-480p 720x480 31.470 59.880...

  • Page 78: Technical Specifications

    Appendix Technical Specifications Mechanical Information Projector Type Multi-media Projector Dimensions (W x H x D) 20.87” x 10.55” x 29.8” (530.0 mm x 268.0 mm x 757 .0 mm) (including protrusions) Net Weight 60.85lbs (27 .6 kg) Feet Adjustment 0˚ to 2.8˚ Panel Resolution LCD Panel System 1.8”...

  • Page 79: Optional Parts

    Appendix l The specifications are subject to change without notice. l LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels. l Each projector has its own characteristics.

  • Page 80: Configurations Of Terminals

    Appendix Configurations of Terminals ANALOG (Mini D-sub 15 pin) +5V Power Red Input Green Input Ground (Vert. sync.) Blue Input Ground DDC Data No Connect Ground (Horiz.sync.) Horiz. sync. Ground (Red) Vert. sync. Ground (Green) DDC Clock Ground (Blue) DIGITAL DVI-D (DVI 24 PIN) T.M.D.S.

  • Page 81: Pin Code Number Memo

    Appendix PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service center. PIN Code Lock No. Factory default set No: 1 2 3 4* Logo PIN Code Lock No.

  • Page 82: Dimensions

    Appendix Dimensions Unit: inch (mm) Screw Holes for Ceiling Mount Screw: M8 Depth: 0.393 (10.0) 20.87(530) 8.46(215) 8.66(220) 1.18(30) 200.0 234.0 20.65(524.5) 1.14(29) 9.25(235) 9.25(235)

  • Page 83: Serial Control Interface

    Appendix Serial Control Interface This projector provides a function to control and monitor the projector's operations by using the RS-232C serial port. Operation Connect a RS-232C serial cross cable to SERIAL Baud rate : 9600 / 19200 bps PORT IN on the projector and serial port on the PC Parity check : none (See p.11).
  • Page 84 Appendix Status Read Command Format The command is sent from PC to the projector with the format below; 'CR' [Command] 'CR' Command: one character (refer to the command table below.) The projector decodes the command and returns the 'Character string' with the format below; Projector Command Function...
  • Page 85 U.S.A. Canada EIKI International, Inc. EIKI CANADA - Eiki International, Inc. 30251 Esperanza P.O. Box 156, 310 First St. - Unit 2, Rancho Santa Margarita Midland, ON, L4R 4K8, Canada CA 92688-2132 Tel : 800-563-3454 (705)-527-4084 U.S.A. Fax : 800-567-4069 (705)-527-4087...
