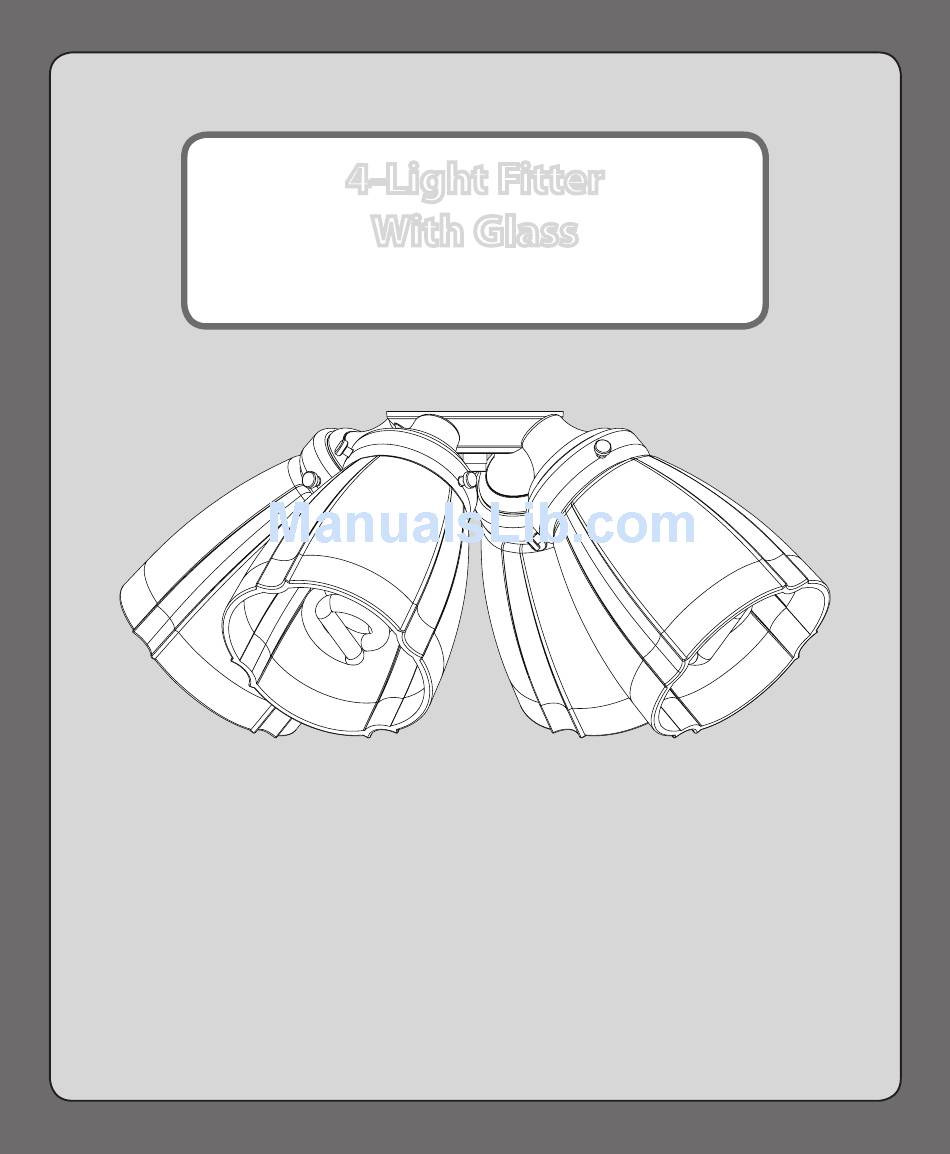

- Page 1 4-Light Fitter 4-Light Fitter With Glass With Glass Installation Manual Models 99093, 99094 Compatible with: 2xxxx Types A - Z 51000-58999 fan series 59500-59999 fan series Select Casablanca Fans MA008-01 • 08/15/13...
-
Page 2: Before You Begin
1.888.830.1326 BEFORE YOU BEGIN Read entire installation instructions carefully before beginning installation and save these instructions. Switch Housing Your light kit is compatible with most ceiling fans. The light kit will attach to the fan’s switch housing. Begin on page 3 where you will choose the type of switch housing that most closely resembles the one on your fan. - Page 3 1.888.830.1326 WHICH ASSEMBLY METHOD WILL I USE? Choose one of the four images below that most closely resembles the switch housing on your fan; then follow the instructions under the image. Switch Switch Switch Housing Housing Housing Screw Screw If your fan’s switch housing cap If your fan’s switch housing cap resembles resembles this one, remove the cap this one, remove the whole switch...
- Page 4 1.888.830.1326 TYPE-A ASSEMBLY INSTRUCTIONS Light Kit Screw Switch Wire Housing Connector Wire Harness Remove the pre-installed light kit screws If your fan does not have pin connectors on the and replace them with the longer light wires coming from the switch housing, install kit screws provided.
- Page 5 1.888.830.1326 TYPE-A ASSEMBLY INSTRUCTIONS (CONTINUED) Thumb Screw Shade To install the shade, first loosen the thumb Installing the bulb - Install a bulb into each screws. Raise the shade to the light fixture. socket. When necessary, replace bulbs with Tighten all thumbscrews securely. bulbs of same type and wattage.
- Page 6 1.888.830.1326 TYPE-B ASSEMBLY INSTRUCTIONS Washer and Nut Switch Housing Switch Housing Wire Wire Connector Harness If your fan does not have pin connectors on Feed the wires through the center hole in the wires coming from the switch housing, the switch housing, the washer, and the nut. install the wiring harness provided.
- Page 7 1.888.830.1326 TYPE-B ASSEMBLY INSTRUCTIONS (CONTINUED) Thumb Screw Shade Shade To install the shade, first loosen the thumb Installing the bulb - Install a bulb into each screws. Raise the shade to the light fixture. socket. When necessary, replace bulbs with Tighten all thumbscrews securely.
- Page 8 1.888.830.1326 TYPE-C ASSEMBLY INSTRUCTIONS Switch Housing Connectors If your fan does not have pin connectors If the fan has pin connectors, cut the on the wires coming from the switch wires just above the fan pin connectors housing, go to step 2. with wire cutters.
- Page 9 1.888.830.1326 TYPE-C ASSEMBLY INSTRUCTIONS (CONTINUED) Thumb Screw Upper Shade Switch Housing Using the single pin connectors, Lift the light kit assembly up so To install the shade, first loosen connect the black or blue wire that the screw holes in the lower the thumb screws.
-
Page 10: Troubleshooting
ONE YEAR WARRANTY This product is warranted to the original purchaser by Casablanca Fan Company/ Hunter Fan Company against defects in material and workmanship for one (1) year from date of purchase. During the warranty period, we will repair or, at our option, replace a defective product at no charge.
