Instruction Manual

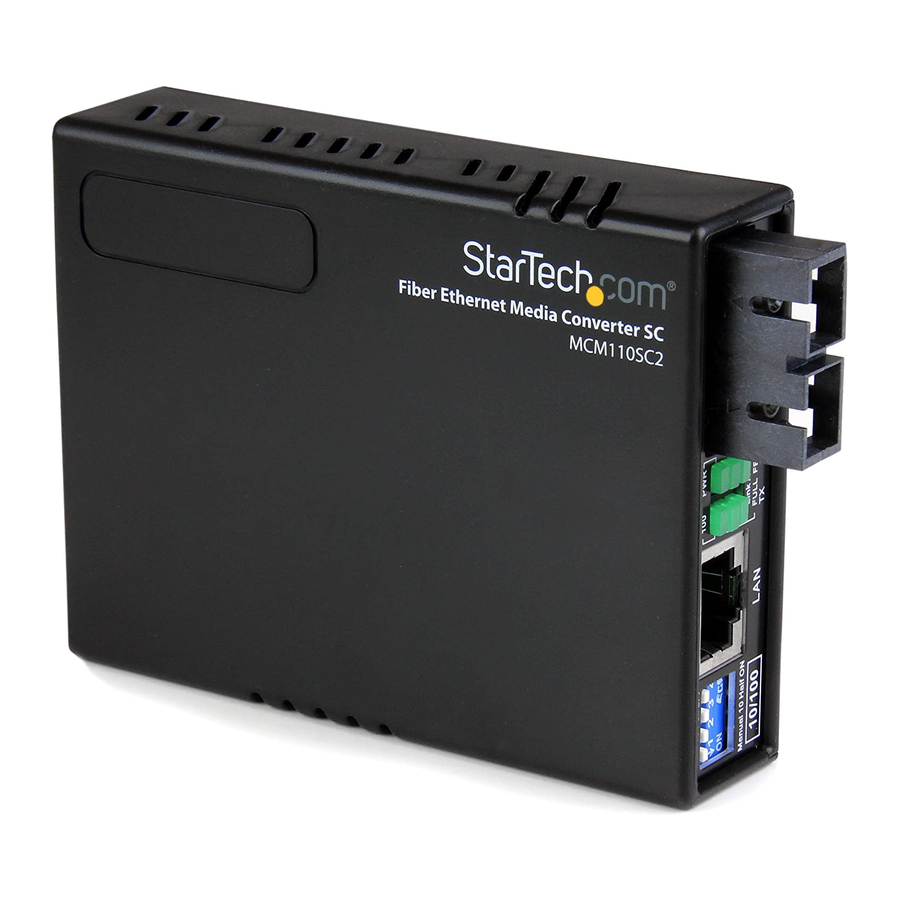

10/100 Ethernet to 100Base-FX Multi-Mode Fiber Media Converter - 2KM
MCM110SC2 / MCM110SC2GB / MCM110SC2EU
MCM110ST2 / MCM110ST2GB / MCM110ST2EU
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 x Fiber/Ethernet media converter
• 1 x Power Adapter
• 1 x Instruction Manual
System Requirements
• 10/100Base-TX compatible Ethernet network
• 100Base-FX fiber network
• SC multi-mode fiber cable
• Available AC electrical outlet
Installation
1. C onnect the Ethernet cable to the Fiber Media Converter
"LAN" port.
2. C onnect the other end of the Ethernet cable to the router/
switch/computer NIC.
3. C onnect the fiber cable into the fiber receptacle on the
media converter.
4. P lug the provided power adapter into the media converter,
and into an available AC power outlet.
5. C onnect the other end of the fiber cable into the router/
switch/computer NIC/another media converter. Remember
to reverse the TX and RX leads between the two devices.
For the most up-to-date information, please visit: www.startech.com
DIP Switch Settings
Switch
Function
SW1
UTP Mode
SW2*
UTP Speed
SW3*
UTP Duplex
Link Fault Pass-
SW4
through
*not enabled when SW1 set to 'Auto'
LED Indicators
LED
Function
Power
PWR
Indicator
Fiber Link/
FX Link/Act
Activity
FEF
Far End Fault
100
Mode
Full
Duplex Mode
Ethernet Link/
TX Link/Act
Activity

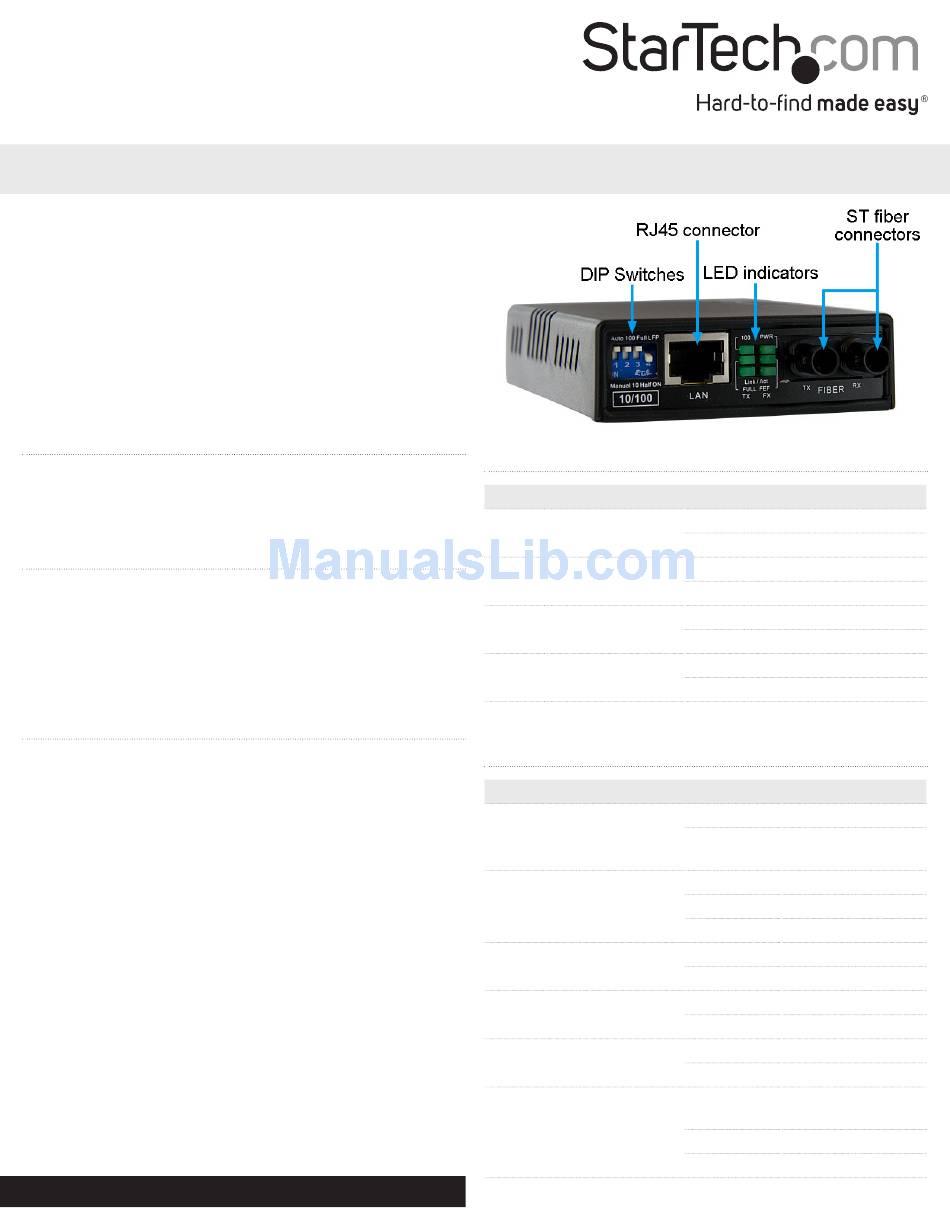

*MCM110ST2 shown
State
Status
Auto
Auto UTP detection
Manual
Use manual UTP settings
100
100Mbps link speed
10
10Mbps link speed
Full
Full duplex
Half
Half duplex
LFP
LFP mode off
ON
LFP mode on
State
Status
ON
Converter has power
Converter has no
OFF
power
ON
Fiber link OK
OFF
No link detected
Flashing
Receiving data
ON
Far end link failure
OFF
No failure detected
ON
100Mbps
OFF
10Mbps
ON
Full duplex mode
OFF
Half duplex mode
Ethernet link
ON
detected
OFF
No link detected
Flashing
Receiving data
Manual Revision: 06/13/2011
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com MCM110SC2
Summary of Contents for StarTech.com MCM110SC2
-
Page 1: Packaging Contents
FX Link/Act No link detected Activity 5. C onnect the other end of the fiber cable into the router/ Flashing Receiving data switch/computer NIC/another media converter. Remember Far end link failure to reverse the TX and RX leads between the two devices. Far End Fault No failure detected 100Mbps Mode 10Mbps Full duplex mode Full Duplex Mode Half duplex mode Ethernet link detected Ethernet Link/ TX Link/Act Activity No link detected Flashing Receiving data For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/13/2011... -
Page 2: Specifications
*MCM110SC2 shown Specifications MCM110SC2 MCM110ST2 1 x RJ45 Ethernet 1 x RJ45 Ethernet Connectors 2 x SC Fiber 2 x ST Fiber 1 x power connector 1 x power connector LEDs Power, Fiber Link/Activity, Ethernet Link/Activity, 10/100, Full/Half Duplex, FEF Fiber Type Multi-Mode (62.5 or 50/125 micron) Optical Wavelength 1310nm Maximum Distance 2 km Transmission Standards IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, l00BASE-FX Full/Half Duplex (Ethernet) Duplex Modes Full Duplex (Fiber) Power Adapter 12VDC, 200mA, center positive, type M plug Enclosure Material Plastic Operating Temperature 0°C ~ 50°C (32°F ~ 122°F) Storage Temperature -10°C ~ 70°C (14°F ~ 158°F)
