StarTech.com MCMGBSCSM10 Quick Start Manual

Quick-start guide
Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
MCMGBSCSM10
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com

Package contents

• 1 x media converter
• 1 x universal power adapter (NA/JP, UK, EU, ANZ)
• 1 x quick-start guide

Requirements

• Ethernet network (10/100/1000)
• Gigabit (1000Mbps) Fiber network
Requirements are subject to change. For the latest requirements,
please visit www.StarTech.com/MCMGBSCSM10.

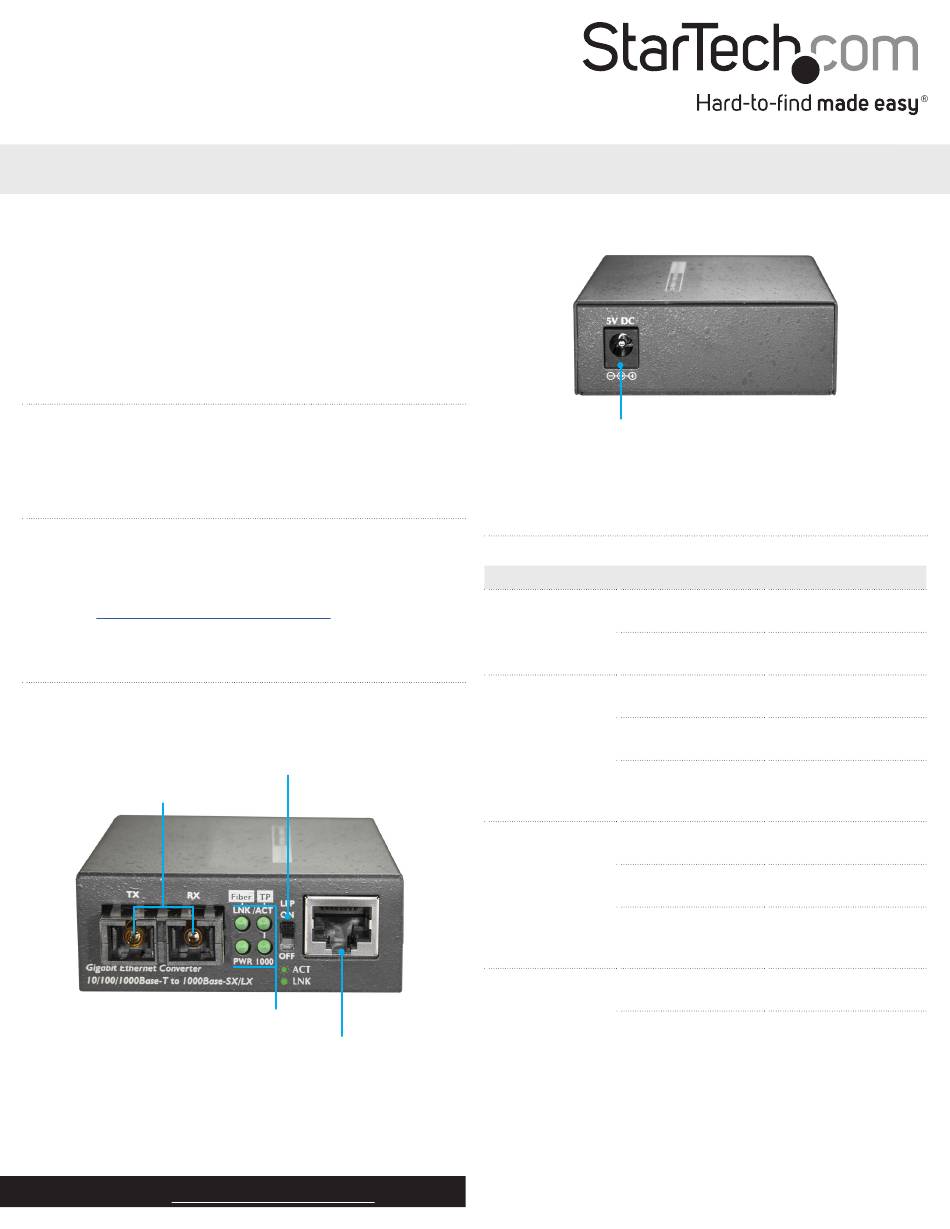

Product diagram

Right view
Link Fault Pass-through switch
SC Fiber port
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/MCMGBSCSM10.

LED indicators

RJ45 Ethernet port
*actual product may vary from photos

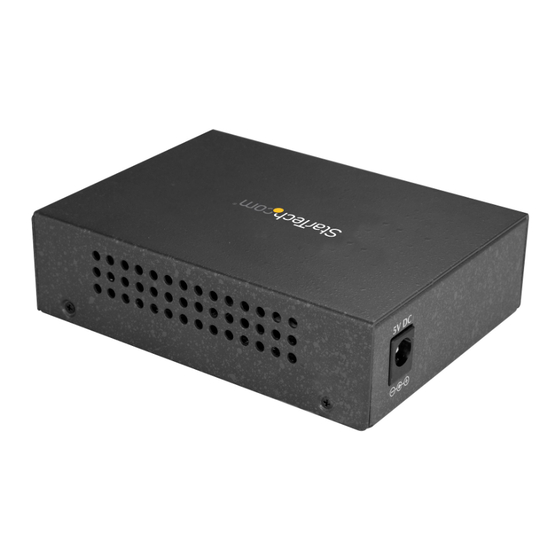

Left view
Power adapter port
LED indicators
LED
Illuminated green
PWR
Not illuminated
Illuminated green
Not illuminated
Fiber LNK/ACT
Blinking green
Illuminated green
Not illuminated
TP LNK/ACT
Blinking green
Illuminated green
TP 1000
Not illuminated
Status Description
Power is being
received
Power is not being
received
Link to Fiber port
detected
No link to Fiber port
detected
Data is being received
or sent through the
Fiber port
Link to Ethernet port
detected
No link to Ethernet
port detected
Data is being received
or sent through the
Ethernet port
Port is transmitting
data at 1000Mbps
Port is transmitting
data at 10/100Mbps
Manual Revision: 10/12/2017
