StarTech.com ICUSBAUDIO2D Spec Sheet

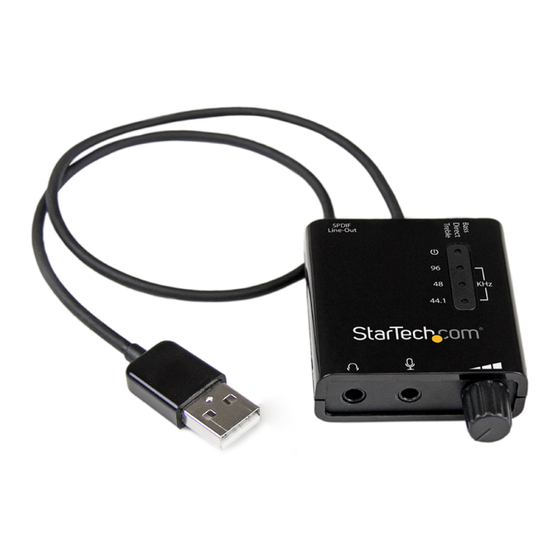

USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio
StarTech ID: ICUSBAUDIO2D
The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm
analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an
internal sound card without having to open the computer case.
For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for
both playback and recording, and a 3.5mm S/PDIF port with support for Dolby® Digital 5.1 surround sound (AC3)
and DTS® pass-through (Note: 5.1 surround sound is supported in Windows® only).
This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones
or combination headset/microphone. Also a convenient external volume control for quick adjustments, a hardware
EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Connect your computer to a home theater audio receiver through S/PDIF, without opening the case
Add digital audio support to an Ultrabook™ or small form factor system with no internal expansion options
Replace or upgrade the integrated audio on a laptop or portable computer
Features
96KHz / 24-bit Hi-Fi USB Audio
S/PDIF digital output with AC3 (Dolby Digital) and DTS pass-through support
5.1 Surround Sound supported (Windows® only)
3.5mm headphone/microphone ports
4 position TRRS headset with Mic supported
Hardware volume knob and Bass/Treble boost EQ switch
LED sample rate indicators
16in attached USB cable
