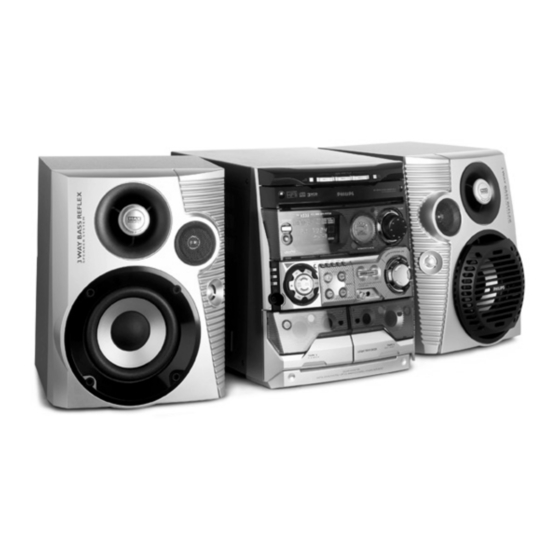

Mini System
©
Copyright 2001 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without
the prior permission of Philips.
Published by SL 0243 Service Audio
Version 1.0
TABLE OF CONTENTS
Location of pc boards & Version variations ................ 1-2
Technical Specifications ............................................. 1-3
Service Aids, Safety Instruction, etc. ................. 1-5...1-6
Connections & Controls ..................................... 1-7...1-9
Disassembly Instructions & Service positions ........... 2-1
VCD-MPEG-01B Module ............................................... 8
ETF7 ND Tape Module .................................................. 9
3Cdc-Lc-Vcd Module ............................................... 10
Af9 Board .................................................................... 12
Printed in The Netherlands
Subject to modification
FW-V537/
Page
VIDEO CD
CLASS 1
GB
21M
3140 785 32450
