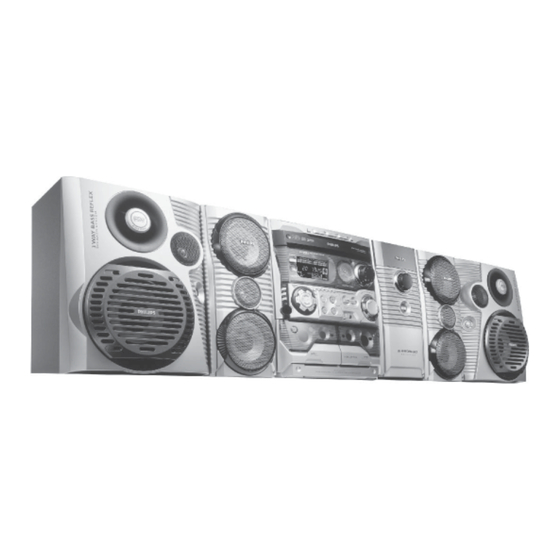

Mini system
Hide thumbs Also See for FW-V595:

Advertisement

Quick Links

Mini System
Remark: From Chap2-Chap11&Chap13, please refer to FW-V535/21M
©
Copyright 2001 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without
the prior permission of Philips.
Published by SL 0332 Service Audio
Version 1.0

TABLE OF CONTENTS

Location of PCBs & Version variations ...................... 1-2
Technical Specifications ............................................. 1-3
Measurement Setup .................................................... 1-4
Service Aids, Safety Instruction, etc. ................. 1-5...1-6
Connections & Controls ..................................... 1-7...1-9
Disassembly Instructions & Service positions ........... 2-1
Service Test Programs ............................................... 3-1
Set Block diagram ...................................................... 4-1
Set Wiring diagram ..................................................... 4-2
Front Control Board ....................................................... 5
Front Display Board ....................................................... 6
ECO6 Tuner Board : Systems Non-Cenelec .............. 7A
VCD-MPEG-01B Module ............................................... 8
ETF7 ND Tape Module .................................................. 9
3CDC-LC-VCD Module ............................................... 10
Power 2001 Module (30-70W Version) ....................... 11
AF10 Board .................................................................. 12
VCD GND Isolator Board ............................................ 13
Set Mechanical Exploded view & parts list ................. 14
Power Booster Box ...................................................... 15
Service Manual (314078532230)
Printed in The Netherlands
Subject to modification
FW-V595/
Page
CLASS 1
GB
21M
3140 785 32680

Advertisement

Table of Contents
loading

Summary of Contents for Philips FW-V595

  • Page 1 LASER PRODUCT © Copyright 2001 Philips Consumer Electronics B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.
  • Page 2 BOARD VIDEO OUT CINCH BOARD HEADPHONE BOARD KARAOKE BOARD POWER BOARD VERSION VARIATIONS: Type /Versions: FW-V595 /21M Features & Board in used: Aux in /CDR in Line Out Surround Out Subwoofer Out Digital Out Video Out Matrix Surround CD Text...
  • Page 3 SPECIFICATIONS GENERAL: CASSETTE RECORDER: Number of track : 2 x 2 stereo Mains voltage : 110-127V / 220-240V Switchable Mains frequency : 50/60Hz Tape speed : 4.76 cm/sec ± 2% Wow and flutter : < 0.4% DIN Power consumption : 15W at Standby : 120W at Active Fast-wind/Rewind time C60 : 130 sec...
  • Page 4: Measurement Setup

    MEASUREMENT SETUP Tuner FM Bandpass LF Voltmeter 250Hz-15kHz e.g. PM2534 e.g. 7122 707 48001 RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz). Tuner AM (MW,LW) Bandpass LF Voltmeter...
  • Page 5 SERVICE AIDS Service Tools: ESD Equipment: Universal Torx driver holder ........4822 395 91019 Anti-static table mat - large 1200x650x1.25mm ... 4822 466 10953 Torx bit T10 150mm ..........4822 395 50456 Anti-static table mat - small 600x650x1.25mm ..4822 466 10958 Torx driver set T6 - T20 .........
  • Page 6: Laser Product

    WAARSCHUWING WARNING Alle IC’s en vele andere halfgeleiders zijn All ICs and many other semi-conductors are gevoelig voor electrostatische ontladingen susceptible to electrostatic discharges (ESD). (ESD). Careless handling during repair can reduce life Onzorgvuldig behandelen tijdens reparatie kan drastically. de levensduur drastisch doen verminderen. When repairing, make sure that you are Zorg ervoor dat u tijdens reparatie via een connected with the same potential as the mass...
  • Page 7 CONNECTION AND CONTROLS...
  • Page 8 CONNECTION AND CONTROLS...
  • Page 10 1-10...
  • Page 11 12-1 12-1 BRIEF INTRODUCTION OF THE AF10 BOARD The AF10 Board consists of the following features : a. TDA7468D IC TDA7468D IC (7501) which includes functions such as source selection, loudness control, dynamic bass control, treble control, volume control and muting function. Sound features such as ALC, DBB, DSC and IS are controllable via I C Bus from the microprocessor.
  • Page 12 AF10 BOARD - COMPONENT LAYOUT This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3475 pt2...
  • Page 13 AF10 BOARD - CHIP LAYOUT 4209 4102 3502 3504 3506 3721 3503 3501 2501 4204 4208 3507 4146 4211 2669 3724 3730 3723 4205 4206 4202 4922 2671 This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3475 pt2...
  • Page 14 12-4 12-4 AF10 BOARD - CIRCUIT DIAGRAM (PART 1) 1501 F1 1510 F1 2203 D7 2503 D3 2512 B5 2522 A4 2534 F7 2544 G10 2551 C12 2557 B14 2563 C15 2590 I10 2642 E14 2666 H2 2707 E12 2924 F5 3438 D4 3506 E3 3514 B4...
  • Page 15 12-5 12-5 AF10 BOARD - CIRCUIT DIAGRAM (PART 2) 1102 H3 3676 H6 1103 H3 3677 I5 1550 A11 3678 I5 1602 C13 3683 C9 1603 E7 3684 D9 VC_OUT_LEFT 2401 G13 3686 D10 MUTE_SW_FR 2402 G12 3687 C10 3721 3729 3723 2403 G12...
  • Page 16 12-6 12-6 AF10 BOARD - CIRCUIT DIAGRAM (PART 3) 1100 F6 1201 C1 1202 E1 1203 C1 Note : Some values may varies, see respective parts list for correct value. 3412 1204 E1 P...provision 1205 C1 FE-BT-VK-N 1206 C1 4909 1521 1401 A9 FE-BT-VK-N...
  • Page 17 12-7 12-7 VIDEO OUT CINCH BOARD - VIDEO OUT CINCH BOARD - ELECTRICAL PARTS LIST - AF10 BOARD COMPONENT LAYOUT CHIP LAYOUT 2204 4822 124 40196 220uF 20% 16V 2603 4822 124 81151 22uF 50V 2205 4822 126 14238 2,2nF 50V 2604 4822 124 81151 22uF 50V...
  • Page 18 12-8 12-8 ELECTRICAL PARTS LIST - AF10 BOARD ELECTRICAL PARTS LIST - AF10 BOARD RESISTORS 3502 4822 051 30472 4k7 5% 0,062W 3634 4822 051 30562 5k6 5% 0,063W 4128 4822 051 30008 0R Jumper 0603 6204 3198 010 53980 BZX79-B3V9 3503 4822 051 30123...
  • Page 19 14-1 14-1 SET MECHANICAL EXPLODED VIEW Exploded_View_3139 119 34380 dd wk0138...
  • Page 20 Cover Tray VCD 0252 3139 114 72760 Bracket CDC Right 9965 000 11086 Tweeter D3 x 12 0107 4822 454 13408 Badge Philips 0253 3139 114 73570 Panel Left 9965 000 07467 Cosmetic Cap D3 x 12 9965 000 09597 Piezo Assembly...
  • Page 21 Exploded View & Mechanical parts list ......15-7 Electrical parts list .............. 15-8 Power Booster Speaker Box Power Booster Speaker Box Power Booster Amplifier Box VERSION VARIATIONS: FW-V595/21M POWER BOOSTER 3140 118 51641 (PWB-V595/01) AMPLIFIER BOX 9965 000 21017 SPEAKER BOX...
  • Page 22 15-2 15-2 DISMANTLING INSTRUCTIONS (POWER BOOSTER AMPLIFIER BOX) Dismantling the Front Assembly Service Position A 1. Place the Power Booster Amplifier Box as shown in Picture 1 and Picture 2 and use a screw driver (minus type) to force open the Front assembly. Caution: Do not break the bundle of wires to the front.
  • Page 23 15-3 15-3 DISMANTLING INSTRUCTIONS (POWER BOOSTER AMPLIFIER BOX) Dismantling the Rear Assembly Service Position B 1. Remove 4 screws C at the bottom of the Power Booster Note: After repair, be very sure that the cables are tied and Amplifier Box as shown in Picture 4. restored properly to its original position.
  • Page 24 15-4 15-4 WIRING DIAGRAM - POWER BOOSTER AMPLIFIER BOX (/21/21M VERSION) WIRING DIAGRAM - POWER BOOSTER AMPLIFIER BOX (/37 VERSION) Wiring Diagram (PWB-C798/17) dd wk0212 Wiring Diagram (PWB-C798/01 & PWB-V795/01) dd wk0212...
  • Page 25 15-5 15-5 COMPONENT LAYOUT - POWER BOOSTER AMPLIFIER BOX...
  • Page 26 15-6 15-6 CIRCUIT DIAGRAM - POWER BOOSTER AMPLIFIER BOX JP101 0.001 U 0.001 U L input 3PIN/2.54 Tact 6*6 0.1U U600 VR101 VR101 CD4013 100k 100k Blue 3mm JP103 JP102 Q101 JP105 3PIN/2.54 Control Board R input 100k 2SC1815Y 2PIN/3.96 2PIN/3.96 100k 3PIN/2.54...
  • Page 27 15-7 15-7 EXPLODED VIEW - POWER BOOSTER AMPLIFIER BOX For/17 For /21M...
  • Page 28 15-8 15-8 MECHANICAL & ACCESSORIES PARTSLIST ELECTRICAL PARTSLIST - MAIN BOARD ELECTRICAL PARTSLIST - CONTROL BOARD 9965 000 13727 FAN 80*80, 0.17A, RDH8025S - MISCELLANEOUS - - MISCELLANEOUS - 9965 000 13728 FRONT PANEL 9965 000 20686 TRANSFORMER 230V FUSE 9965 000 20687 FUSE SLOW 250V 2.5A 9965 000 13770...
