- Page 1 Hi-Speed USB AUdio/Video GrABBer USer mAnUAl Model 161336 MAN-161336-UM-0111-01...

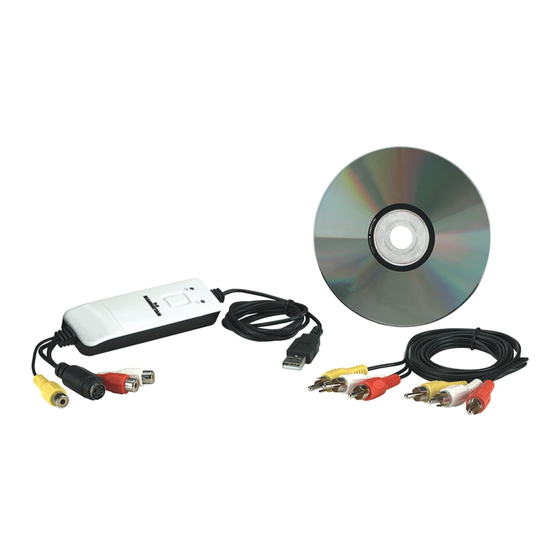

- Page 2 Thank you for purchasing the MANHATTAN Hi-Speed USB Audio/Video Grabber, ® Model 161336. Ideal for sharing favorite video clips or “snapshots” through e-mail or on the Web, the Hi-Speed USB Audio/Video Grabber records and processes data from your camcorder, TV or other media device equipped with S-video or RCA outputs: Just connect the media source to a desktop or notebook computer to capture, convert and edit content.
-
Page 3: Hardware Connections
HArdwAre connectionS Using the included RCA extension cable if needed (not depicted in the setup image below), make the appropriate connection(s) between your computer and the media source — camcorder, TV or whatever — through the Hi-Speed USB Audio/Video Grabber. S-video In Audio In (L) ... -
Page 4: Driver Installation
driVer inStAllAtion 1. Insert the enclosed software Cd in the Cd-RoM drive to display the initial menu. Click “Driver Install” or run Driver\Setup.exe. 2. The InstallShield Wizard’s initial Preparing to Install screen displays with a status bar to indicate that the process is underway. When the Ready to Install the Program screen displays, click “Install.”... - Page 5 3. Subsequent Status screens will indicate installation progress. If Windows Security prompts display during installation, click “Install” or “Continue Anyway” to proceed. 4. When the InstallShield Wizard Complete screen displays, click “Finish.” You can now proceed with the eZ Grabber software installation, as detailed below. ez GrABBer inStAllAtion 1.
- Page 6 3. Subsequent Status screens may display to indicate installation progress. When the InstallShield Wizard Complete screen displays, click “Finish.” 4. once the eZ Grabber icon appears on your desktop, you can launch the application to display the EZ Grabber Main User Interface (shown below).
- Page 7 ez GrABBer mAin USer interfAce 1. Status 8. Pause 15. Minimize window 2. Setup menu 9. Play recorded files & controls 3. Snapshot 10. Status window Full screen window 4. Start recording 11. Stop playback & controls 5. Stop recording 12. Next track About (version &...
- Page 8 VHS to dVd SoftwAre inStAllAtion 1. Click “Honestech VHS to dVd” on the menu screen or run “VHS2DVD\Setup.exe” to install the editing application. 2. When the Choose Setup language screen of the InstallShield Wizard displays, select a language and click “Next.” Click “Back” to return to the previous screen;...
- Page 9 4. When the license Agreement screen displays, select “I accept...” and click “Next” to continue. 5. When the Choose Destination Location screen displays, click “Next” to direct the file to the default (recommended) location.
- Page 10 6. When the Ready to Install the Program screen displays, click “Install.” 7. The Honestech Setup screen (right) will display while files are loaded. When the InstallShield Wizard Complete screen displays (below), click “Finish.” The EZ Grabber and Honestech icons (far right) should appear on your desktop.
- Page 11 8. Click “Users Guide” on the menu screen. When the directory displays (below), open the “HTVideoToDVD” file, then click on “Using the honestech VHS to DVD 2.5” to display the various Instructions options. (Sample screen shows launched application.) ...
-
Page 12: Specifications
9. Click “Utility” on the menu screen if you don’t already have DirectX 9.0 or higher installed on your computer. Open the “DirectX” file in the directory to install it, as it is required in order to operate the Hi-Speed USB Audio/ Video Grabber. -
Page 13: Waste Electrical And Electronic Equipment
• Connect the equipment to an outlet on a circuit different from the receiver. • Consult the dealer or an experienced radio/TV technician for help. CE / R&TTE This device complies with the requirements of the R&TTE Directive 1999/5/EC. WARRANTY INFORMATION For warranty information, go to www.manhattan-products.com/warranty. - Page 14 Copyright © MANHATTAN...
