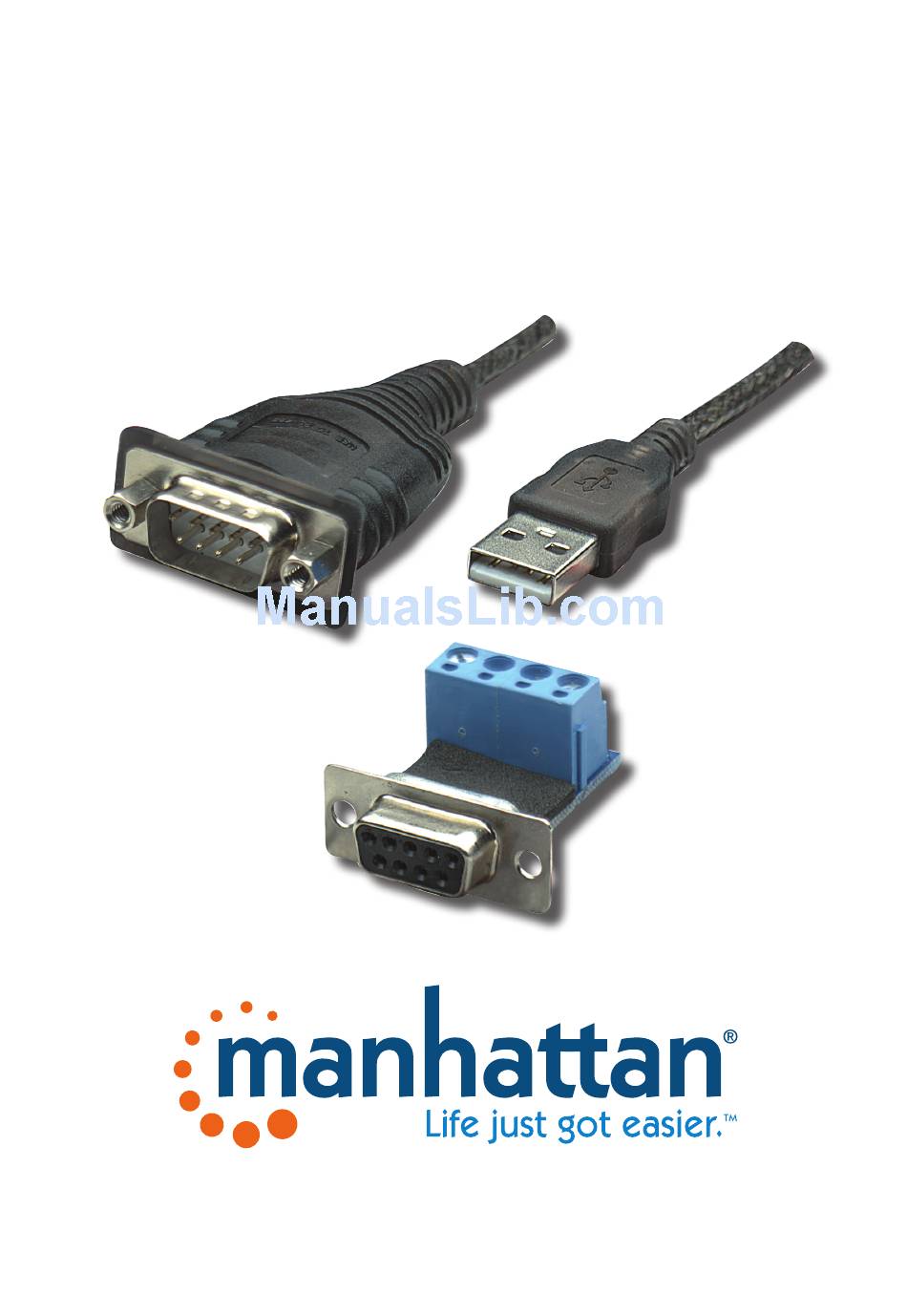

- Page 1 USB TO RS485 CONVERTER USER MANUAL MODEL 150439 MAN-150439-UM-0613-02...
- Page 2 INTRODUCTION Thank you for purchasing the Manhattan USB to RS485 Converter, Model ® 150439. This handy converter transforms any standard full-duplex USB port into a two- wire, half-duplex communication channel with a range of up to 1200 m (3900 ft.).
-
Page 3: Installation
INSTALLATION 1. Insert the included driver CD in your CD-ROM drive and make your connection to a USB port. When the Welcome to the Found New Hardware Wizard screen displays, click Cancel to continue with the installation. 2. On the subsequent screen, select “Install the software automatically,”... - Page 4 4. When the Completing the Found New Hardware Wizard screen displays (for the USB High Speed Serial Converter), click Finish. 5. When the screen identifying “USB Serial Port” displays, select “Install the software automatically” and click Next. 6. When the second Hardware Installation warning displays (referring to the USB RA485 Serial Port), click Continue Anyway.
- Page 5 7. When the Completing the Found New Hardware Wizard screen displays (for the USB RS485 Serial Port), click Finish. 8. Open the Computer Management file to confirm that the device is listed, as shown at right. 9. Using the included adapter if necessary, make your RS485 connection. WIRING CONFIGURATION: RS485 P DB9 M...
-
Page 6: Specifications
SPECIFICATIONS Standards and Certifications • CE • FCC • USB 1.0 • USB 1.1 • USB 2.0 Connections • (1) USB port; type-A male • (1) RS232 port; 9-pin male • (1) RS232 port; 9-pin female (on adapter) • (1) RS485 port; 4-pin female (on adapter) General •... - Page 7 © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries.
