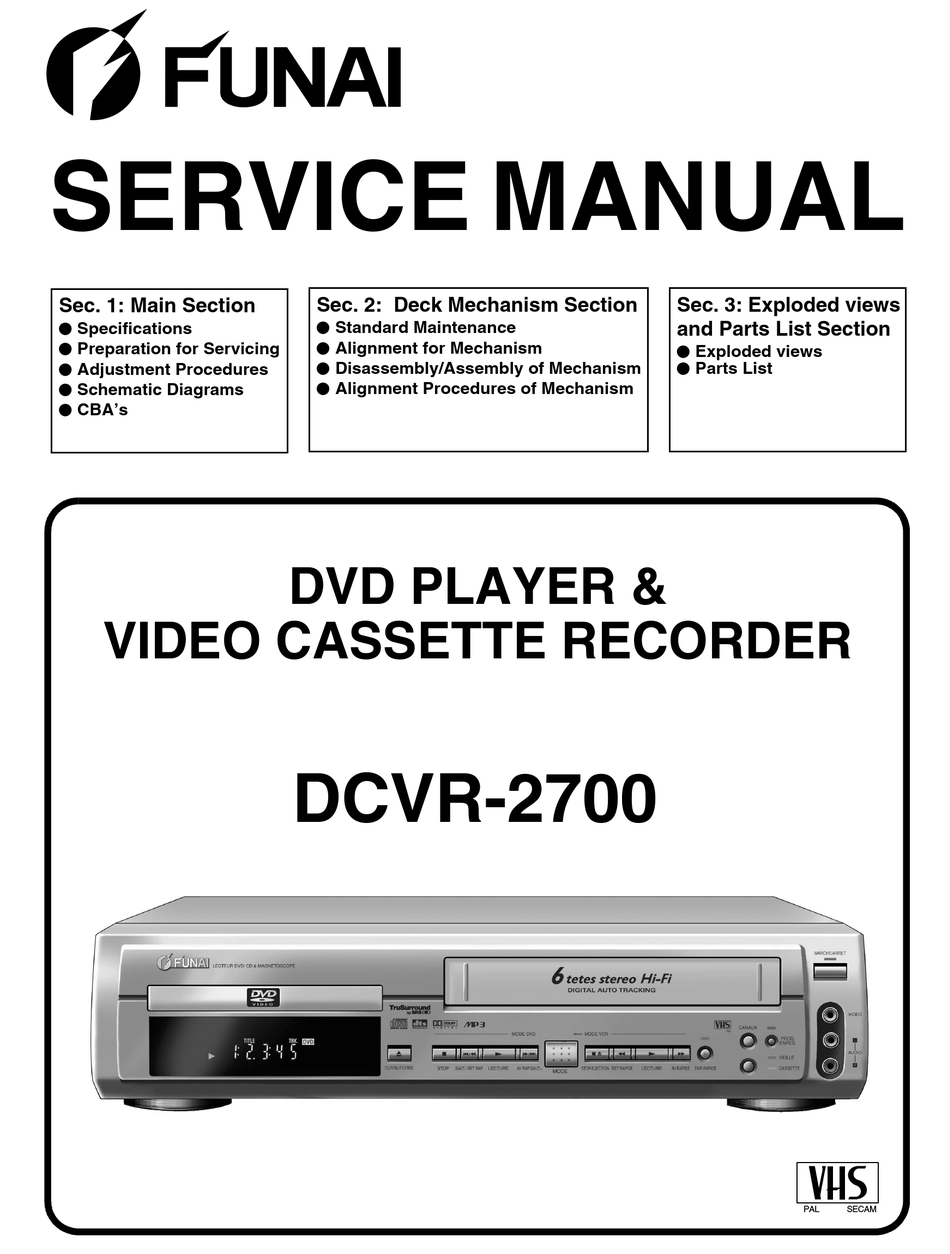

SERVICE MANUAL
Sec. 1: Main Section
I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA's
VIDEO CASSETTE RECORDER
Sec. 2: Deck Mechanism Section
I Standard Maintenance
I Alignment for Mechanism
I Disassembly/Assembly of Mechanism
I Alignment Procedures of Mechanism
DVD PLAYER &
DCVR-2700
Sec. 3: Exploded views
and Parts List Section
I Exploded views
I Parts List
PAL
SECAM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCVR-2700 and is the answer not in the manual?

Questions and answers

Related Manuals for FUNAI DCVR-2700

Summary of Contents for FUNAI DCVR-2700

  • Page 1 I Specifications I Alignment for Mechanism I Preparation for Servicing I Exploded views I Disassembly/Assembly of Mechanism I Parts List I Adjustment Procedures I Alignment Procedures of Mechanism I Schematic Diagrams I CBA’s DVD PLAYER & VIDEO CASSETTE RECORDER DCVR-2700 SECAM...

  • Page 2: Table Of Contents

    MAIN SECTION DVD PLAYER & VIDEO CASSETTE RECORDER DCVR-2700 Sec. 1: Main Section I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s TABLE OF CONTENTS Specifications................1-1-1 Laser Beam Safety Precautions .

  • Page 3: Specifications

    SPECIFICATIONS < VCR Section > Description Unit Minimum Nominal Maximum Remark 1. Video 1-1. Video Output (PB) Vp-p SP Mode 1-2. Video Output (R/P) Vp-p SP Mode, 1-3. Video S/N Y (R/P) W/O Burst 1-4. Video Color S/N AM (R/P) SP Mode 1-5.

  • Page 4: Dvd Section

    < DVD Section > ITEM CONDITIONS UNIT NOMINAL LIMIT 1. Video Output 75 ohm load 2. Optical Digital Out 3. Audio (PCM) 3-1. Output Level 1kHz 0dB Vrms 3-2. S/N 3-3. Freq. Response fs=48kHz 20~22kHz ± 2 fs=44.1kHz 20~20 kHz ±...

  • Page 5: Laser Beam Safety Precautions

    LASER BEAM SAFETY PRECAUTIONS This DVD player uses a pickup that emits a laser beam. Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin. The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30cm away from the pickup lens when the diode is turned on.

  • Page 6: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Product Safety Notice I. Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder Some electrical and mechanical parts have special droplets, etc.) do not remain inside the set. safety-related characteristics which are often not evi- K.

  • Page 7: Safety Check After Servicing

    Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, Chassis or Secondary Conductor and wires have been returned to their original posi- tions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety Primary Circuit Terminals standards.

  • Page 8: Standard Notes For Servicing

    STANDARD NOTES FOR SERVICING Circuit Board Indications How to Remove / Install Flat Pack-IC a. The output pin of the 3 pin Regulator ICs is indi- 1. Removal cated as shown. With Hot-Air Flat Pack-IC Desoldering Machine:. (1) Prepare the hot-air flat pack-IC desoldering Top View Bottom View machine, then apply hot air to the Flat Pack-IC...
  • Page 9 With Soldering Iron: (4) Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply (1) Using desoldering braid, remove the solder from all soldering iron to center of the flat pack-IC and heat pins of the flat pack-IC.
  • Page 10 2. Installation Instructions for Handling Semi-conductors (1) Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA Electrostatic breakdown of the semi-conductors may so you can install a replacement flat pack-IC more occur due to a potential difference caused by electro- easily.

  • Page 11: Preparation For Servicing

    PREPARATION FOR SERVICING How to Enter the Service Mode About REC-Safety Switch Caution: The REC-Safety Switch is directly mounted on the About Optical Sensors Main CBA. When the Deck Mechanism Assembly is Caution: removed from the Main CBA for servicing, this switch does not work automatically.

  • Page 12: Cabinet Disassembly Instructions

    CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart REMOVAL REMOVE/*UNHOOK/ This flowchart indicates the disassembly steps to gain LOC. PART Fig. UNLOCK/RELEASE/ Note access to item(s) to be serviced. When reassembling, UNPLUG/DESOLDER follow the steps in reverse order. Bend, route, and dress the cables as they were originally. DVD Main 3(S-5), *CN101, [1] Top Cover...
  • Page 13 Reference Notes [1] Top Cover CAUTION 1: Locking Tabs (L-1) and (L-2) are fragile. (S-1) Be careful not to break them. (S-1) 1-1. Connect the wall plug to an AC outlet and press the OPEN/CLOSE button to open the Tray. 1-2.
  • Page 14 (S-4) CN701 (S-7) CN501 [7] Rear Panel (S-4) (S-6) (S-6) (S-7) [5] DVD Mecha Assembly Fig. D6 Fig. D4 (S-8) (S-9) (S-5) (S-5) CN101 [6] DVD Main (S-5) (S-8) CBA Unit (S-8) (S-9) CN401 [8] VCR Chassis DVD Mecha Unit Assembly CN002 Short the three short lands by soldering...
  • Page 15 FE Head Cylinder Assembly AC Head Assembly SW507 LD-SW [9] Deck Assembly [10] Main CBA [12] AFV CBA CN2002 [9] Deck Assembly Cam Gear Hole Shaft Desolder Hole Desolder [11] Function CBA LD-SW from bottom [10] Main CBA (S-10) [10] Main CBA From Cylinder From...
  • Page 16 Bracket (S-11) (S-12) (S-11) [13] Power Supply CBA (W-1) (S-13) [15] Deck Pedestal-2 (L-3) (W-1) [17] Insulator (W-1) [16] Side Bracket [14] Deck Pedestal-1 (S-14) Fig. D9 HOW TO MANUAL EJECT 1. Remove the Top Case. 2. Make a tool from a paper clip, etc., (length = approxi- mately 50 mm, maximum diameter = approximately 3 mm) as shown below.

  • Page 17: Electrical Adjustment Instructions

    ELECTRICAL ADJUSTMENT INSTRUCTIONS Head Switching Position Adjustment General Note: "CBA" is an abbreviation for "Circuit Board Assembly." Purpose: NOTE: To determine the Head Switching point during 1.Electrical adjustments are required after replacing playback. circuit components and certain mechanical parts. Symptom of Misadjustment: It is important to do these adjustments only after all repairs and replacements have been com- May cause Head Switching noise or vertical jitter...

  • Page 18: Firmware Renewal Mode

    FIRMWARE RENEWAL MODE 1. Turn the power on and remove the disc on the tray. 2. To put the DVD player into version up mode, press [9], [8], [7], [6], and [SEARCH MODE] buttons on the remote control unit in that order. The tray will open automatically.

  • Page 19: Block Diagrams

    BLOCK DIAGRAMS <VCR Section> Servo/System Control Block Diagram IC501 FRONT JACK CBA (SERVO/SYSTEM CONTROL) MAIN CBA CN505 CN651 KEY- 2 KEY-2 KEY SWITCH Q507 POWER LED POWER-LED Q501 AL+5V CAS LED CAS-LED Q502 POWER TIMER LED TIMER-LED D651 D653 Q515 (DECK ASSEMBLY) TIMER+5V RESET...
  • Page 20 Video Block Diagram REC-VIDEO SIGNAL PB-VIDEO SIGNAL DVD VIDEO SIGNAL MODE: SP/REC MAIN CBA IIC-BUS SDA TO SERVO/SYSTEM CONTROL BLOCK IIC-BUS SCL JK101 DVD-R IC501 (OSD) FROM DVD VIDEO BLOCK DVD-G <DVD SECTION> DVD-B Q301 CHARACTER BUFFER COLOR-IN TU701 TU-VIDEO IC301 (Y/C SIGNAL PROCESS) (DECK ASSEMBLY)
  • Page 21 Audio Block Diagram PB-AUDIO SIGNAL REC-AUDIO SIGNAL Mode : SP/REC MAIN CBA N-A-PB TO Hi-Fi N-A-REC AUDIO BLOCK IC301 (AUDIO SIGNAL PROCESS) TUNER PB-ON LINE MUTE (DECK ASSEMBLY) SP/LP-ON ACE HEAD ASSEMBLY REC-ON Q404 CL287 CL504 A-PB/REC 4 AUDIO 4 A-PB/REC Q403 HEAD A-COM 3...
  • Page 22 Hi-Fi Audio Block Diagram DVD AUDIO SIGNAL PB-AUDIO SIGNAL REC-AUDIO SIGNAL Mode : SP/REC IC751 (SW) JK101 MAIN CBA A-IN1(R) A-IN1(L) A-OUT1(R) A-OUT1(L) JK102 SW CTL A-IN2(R) A-IN2(L) A-OUT2(R) A-OUT2(L) Q752 TO SYSTEM OUTPUT SELECT CONTROL BLOCK JK751 DVD-A(R) TO DVD AUDIO A-OUT(R) DVD-A(L) BLOCK...
  • Page 23 Power Supply Block Diagram NOTE : CAUTION CAUTION ! FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, Fixed voltage (or Auto voltage selectable ) power supply circuit is used in this unit. The voltage for parts in hot circuit is measured using If Main Fuse (F001) is blown, check to see that all components in the power supply REPLACE ONLY WITH THE SAME TYPE T1.6A L 250V FUSE.
  • Page 24 BLOCK DIAGRAMS < DVD Section > DVD System Control Block Diagram IC601 (DVD HOST PROCESSOR) IC2001 IC301 TFWD (FRONT PANEL CONTROL) (FRONT END PROCESSOR) TREV TFWD TOUT FL2001 TFWD TREV TREV GRID TOUT TOUT +3.3V IC605 STDIO FROM/TO STDIO a/KEY-1 CN501 CN1001 CN2002...
  • Page 25 RF Signal Process/Servo Block Diagram DATA(VIDEO/AUDIO) SIGNAL FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL SLIDE SERVO SIGNAL DISK SERVO SIGNAL IC101 (RF SIGNAL PROCESS) PICK-UP UNIT DVD MAIN CBA UNIT HOLD TESTSG CN101 FROM/TO DVD SIGNAL PROCESS BLOCK DIAGRAM NARF C 10 DETECTOR BDO DET INPUT...
  • Page 26 DVD Signal Process Block Diagram DATA(VIDEO/AUDIO) SIGNAL DVD MAIN CBA UNIT IC201 (DVD SIGNAL PROCESS) PARA0 PARA1 PARA2 DATA VIDEO/AUDIO PARA3 TO DVD VIDEO SLICER PARA0-PARA7 DEMODULATOR FROM/TO RF SIGNAL INTERFACE BLOCK DIAGRAM NARF PARA4 PROCESS/SERVO PARA5 BLOCK DIAGRAM TESTSG PARA6 PARA7 MEMORY...
  • Page 27 DVD Video Block Diagram DATA(VIDEO) SIGNAL DATA(AUDIO) SIGNAL VIDEO SIGNAL DATA(VIDEO/AUDIO) SIGNAL IC601 (DVD HOST PROCESSOR) CACHE SUBSYSTEM FROM DVD PARA0 INTERNAL CENTRAL FRONT-END PCM-BCK SIGNAL PROCESS PARA0-PARA7 PERIPHERALS COMMAND & LINK PCM-DATA0 BLOCK DIAGRAM PARA7 TO DVD PORTS PORT INTERFACE PCM-SCLK AUDIO...
  • Page 28 DVD Audio Block Diagram DATA(AUDIO) SIGNAL AUDIO SIGNAL IC1204 FIBER OPTIC TRANS MODULE CN701 CN1601 Q1351 JK1202 SPDIF BUFFER DIGITAL AUDIO OUT IC801 (AUDIO DAC) IC1201 (AMP) SPDIF CN701 CN1601 DVD-A(L) 4X/8X L-CH PCM-BCK ENPHANCED LPF+AMP DVD-AUDIO-L TO AUDIO OVERSAMPLING PCM-DATA0 SERIAL MULTI-LEVEL...

  • Page 29: Schematic Diagrams / Cba's And Test Points

    SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS Standard Notes Notes: WARNING 1. Do not use the part number shown on these draw- ings for ordering. The correct part number is shown Many electrical and mechanical parts in this chassis in the parts list, and may be slightly different or have special characteristics.
  • Page 30 LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. 2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defec- tive before you connect the AC plug to the AC power supply.
  • Page 31 Main 1/8 Schematic Diagram < VCR Section > Note: When it is necessary to replace one or more of the following Diodes, all three should be replaced: D506, D507, D508. 1-10-3 1-10-4 1-10-5 H9307SCM1...
  • Page 32 Main 2/8 Schematic Diagram < VCR Section > 1-10-6 1-10-8 H9307SCM2 1-10-7...
  • Page 33 Main 3/8 Schematic Diagram < VCR Section > 1-10-9 1-10-10 1-10-11 H9307SCM3...
  • Page 34 Main 4/8 Schematic Diagram < VCR Section > 1-10-12 1-10-13 1-10-14 H9307SCM4...
  • Page 35 Main 5/8 Schematic Diagram < VCR Section > H9307SCM5 1-10-15 1-10-16...
  • Page 36 Main 6/8 Schematic Diagram < VCR Section > H9307SCM6 1-10-17 1-10-18...
  • Page 37 Main 7/8 Schematic Diagram < VCR Section > 1-10-19 1-10-20 H9307SCM7...
  • Page 38 Main 8/8 Schematic Diagram < VCR Section > 1-10-21 1-10-22 H9307SCM8...

  • Page 39: Power Supply Schematic Diagram

    Power Supply Schematic Diagram < VCR Section > CAUTION ! NOTE : CAUTION Fixed voltage (or Auto voltage selectable ) power supply circuit is used in this unit. THE VOLTAGE FOR PARTS IN HOT CIRCUIT IS MEASURED USING FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, If Main Fuse (F001) is blown, check to see that all components in the power supply HOT GND AS A COMMON TERMINAL.
  • Page 40 Function Schematic Diagram < VCR Section > FL2001 MATRIX CHART STANDBY REPEAT STANDBY TITLE CHP. TRK. REPEAT TITLE CHP. TRK. H9307SCF 1-10-25 1-10-26...
  • Page 41 Front Jack Schematic Diagram < VCR Section > Note: When it is necessary to replace one or more of the following Diodes, all four should be replaced: D652, D653, D654, D655. H9307SCJ 1-10-27 1-10-28...
  • Page 42 AFV Schematic Diagram < VCR Section > 1-10-29 1-10-30 H9307SCAFV...
  • Page 43 Main CBA Top View Sensor CBA Top View ( End Sensor ) BHB300F01011-A TP751 V-OUT BHB300F01011-B TP301 C-PB Sensor CBA Top View ( Start Sensor ) BHB300F01011-A BHB300F01011-B TP502 END-S VR501 SW-P TP503 TP504 RF-SW TP501 S-INH 1-10-31 1-10-32 1-10-33 BH9311F01013-A...
  • Page 44 Main CBA Bottom View 1-10-34 1-10-35 1-10-36 BH9311F01013-A...
  • Page 45 Function CBA Top View Function CBA Bottom View BH9311F01013-B 1-10-37 1-10-38...
  • Page 46 Front Jack CBA Top View Front Jack CBA Bottom View BH9311F01013-C 1-10-39 1-10-40...
  • Page 47 Power Supply CBA Top View Power Supply CBA Bottom View CAUTION ! BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER NOTE : CAUTION Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED.
  • Page 48 AFV CBA Top View AFV CBA Bottom View Junction-A CBA Top View Junction-A CBA Bottom View BH9311F01013-E Junction-B CBA Top View Junction-B CBA Bottom View BHC400F01091 BH9311F01013-F 1-10-43 1-10-44...
  • Page 49 DVD Main 1/4 Schematic Diagram < DVD Section > 1-10-45 1-10-46 1-10-47 H9307SCD1...
  • Page 50 DVD Main 2/4 Schematic Diagram < DVD Section > 1-10-48 1-10-49 1-10-50 H9307SCD2...
  • Page 51 DVD Main 3/4 Schematic Diagram < DVD Section > 1-10-51 1-10-52 1-10-53 H9307SCD3...
  • Page 52 DVD Main 4/4 Schematic Diagram < DVD Section > 1-10-54 1-10-55 1-10-56 H9307SCD4...

  • Page 53: Waveforms

    WAVEFORMS (TP751 of Main CBA) V-OUT E-E 10usec 50mV x 10 (TP751 of Main CBA) UPPER (TP302 of Main CBA) LOWER V-OUT 0.1V x 10 RF-SW 0.5V x 10 50usec (TP301 of Main CBA) UPPER (TP302 of Main CBA) LOWER C-PB 10mV x 10 RF-SW...
  • Page 54 WAVEFORMS NOTE: Input CD: 1kHz PLAY (WF4~WF6) DVD: POWER ON (STOP) MODE (WF1~WF3) Pin 5 of CN1601 Pin 13 of CN1601 0.2V 20usec VIDEO-Y 0.5msec AUDIO-L Pin 7 of CN1601 Pin 15 of CN1601 VIDEO-CVBS 0.5V 20usec AUDIO-R 0.5msec Pin 9 of CN1601 Pin 18 of CN1601 VIDEO-C 0.2V...
  • Page 55 WIRING DIAGRAM < VCR SECTION > REAR OPTICAL S-VIDEO DIGITAL AUDIO AUDIO AUDIO OUT AUDIO OUT OUT (R) OUT (L) ANT-IN ANT-OUT CN651 CN505 CN1001 1 GND VIDEO P-ON+1.8V KEY-2 P-ON+1.8V CN002 CN051 CL051 3 AL+5V EV+2.5V 1 AL+44V AL+44V CAS-LED EV+2.5V FRONT JACK CBA...
  • Page 56 WIRING DIAGRAM< DVD SECTION> DVD MECHA LOADING RELAY CBA MOTOR CN501 P-ON+1.8V 1 P-ON+1.8V 2 EV+2.5V 3 TRAY-OUT CN3001 CN401 EV+2.5V 4 1 LM(+) P-ON+5V 2 LM(-) P-ON+5V 6 SPINDLE SW CBA TRAY-IN 3 TRAY-IN MOTOR GND 7 4 TRAY-OUT GND 8 5 GND GND 9...

  • Page 57: Ic Pin Function Descriptions

    IC PIN FUNCTION DESCRIPTIONS [ VCR Section ] Signal Active Function Name Level IC501( SERVO / SYSTEM CONTROL IC ) POWER “POWER” LED 23 OUT Signal Output “H” ≥ 4.5V, “L” ≤ 1.0V “CASSETTE” LED 24 OUT CAS LED Signal Active Signal Output Function...
  • Page 58 Signal Active Signal Active Function Function Name Level Name Level N.U. Not Used Supply Reel S-REEL PULSE Rotation Signal 52 OUT OSD-V- OSD Video Signal Output Take Up Reel T-REEL PULSE Rotation Signal OSDVcc OSDVcc H/L/ 81 OUT LM-FWD/ Loading Motor LPF Connected Control Signal Hi-z...
  • Page 59 IC2001 [ PT6315-S(TP) ] Signal In/Out Name Function Name Clock Input Serial Interface Strobe Key Data 1 Input Key Data 2 Input Power Supply a / KEY-1 Segment Output / Key Souce-1 b / KEY-2 Segment Output / Key Souce-2 Segment Output d / KEY-4 Segment Output/ Key Souce-4...

  • Page 60: Lead Identifications

    LEAD IDENTIFICATIONS FS2KM-18A 2SC1815-BL(TPE2) NJM4558D BN1F4M-T KIA78R33PI 2SC1815-Y(TPE2) KIA4558P BA1F4M-T PQ3RD13(1A) 2SC1815-GR(TPE2) KTA1266(GR) KIA78R33API 2SC2120-Y(TPE2) KTC3199(Y,GR,BL) KTC3203(Y) 2SC2785(J,H,F,K) KTC3205 (Y) KRC103M 2SA966(Y) KRA103M 2SC2001(K,L) BN1L3Z(P) 2SA1020(Y) KRA110M 2SB892(S) KTA1273(Y) 2SC3266-Y(TPE2) KTA1281(Y) 2SA1015-GR(TPE2) KRA104M BN1L4M-T KRC110M-AT E C B E C B G D S BA1L3Z-T LTV-817(B,C)-F...
  • Page 61 DECK MECHANISM SECTION DVD PLAYER & VIDEO CASSETTE RECORDER DCVR-2700 Sec. 2: Deck Mechanism Section I Standard Maintenance I Alignment for Mechanism I Disassembly/Assembly of Mechanism I Alignment Procedures of Mechanism TABLE OF CONTENTS Standard Maintenance..............2-1-1 Service Fixtures and Tools .

  • Page 62: Standard Maintenance

    STANDARD MAINTENANCE Service Schedule of Components H: Hours : Check I: Change Deck Periodic Service Schedule Ref.No. Part Name 1,000 H 2,000 H 3,000 H 4,000 H Cylinder Assembly Loading Motor Assembly Pulley Assembly Tension Lever Sub Assembly AC Head Assembly B573,B574 Reel S, Reel T Capstan Motor...
  • Page 63 Cleaning Cleaning of Audio Control Head Clean the head with a cotton swab. Cleaning of Video Head Procedure Clean the head with a head cleaning stick or chamois 1.Remove the top cabinet. cloth. 2.Dip the cotton swab in 90% isopropyl alcohol and Procedure clean the audio control head.

  • Page 64: Service Fixtures And Tools

    SERVICE FIXTURE AND TOOLS J-1-1, J-1-2 Ref. No. Name Part No. Adjustment J-1-1 Alignment Tape FL6A Head Adjustment of Audio Control Head J-1-2 Alignment Tape FL6N8 Azimuth and X Value Adjustment of Audio Control (1 speed only) Head / Adjustment of Envelope Waveform FL6NS8 (2 speed only) Guide Roller Adj.Screwdriver...

  • Page 65: Mechanical Alignment Procedures

    MECHANICAL ALIGNMENT PROCEDURES Explanation of alignment for the tape to correctly run B. Method to place the Cassette Holder in the tape- starts on the next page. Refer to the information below loaded position without a cassette tape on this page if a tape gets stuck, for example, in the 1.

  • Page 66: Tape Interchangeability Alignment

    1.Tape Interchangeability Alignment Note: To do these alignment procedures, make sure that the Tracking Control Circuit is set to the center position every time a tape is loaded or unloaded. (Refer to page 2-3-4, procedure 1-C, step 2.) Equipment required: Dual Trace Oscilloscope VHS Alignment Tape (FL6NS8) Guide Roller Adj.
  • Page 67 1-A. Preliminary/Final Checking and 3. Check to see that the tape runs without creasing at Alignment of Tape Path Take-up Guide Post [4] or without snaking between Guide Roller [3] and AC Head. (Fig. M3 and M5) Purpose: 4. If creasing or snaking is apparent, adjust the Tilt To make sure that the tape path is well stabilized.
  • Page 68 6. Press CH DOWN button on the unit until the CTL 1-D. Azimuth Alignment of Audio/Control/ waveform has shifted from its original position (not Erase Head the position achieved in step 5, but the position of Purpose: CTL waveform in step 4) by approximately -2msec. To correct the Azimuth alignment so that the Audio/ Make sure that the envelope is simply attenuated Control/Erase Head meets tape tracks properly.

  • Page 69: Disassembly/Assembly Procedures Of Deck Mechanism

    DISASSEMBLY/ASSEMBLY PROCEDURES OF DECK MECHANISM Before following the procedures described below, be sure to remove the deck assembly from the cabinet. (Refer to CABINET DISASSEMBLY INSTRUCTIONS on page 1-6-1.) All the following procedures, including those for adjustment and replacement of parts, should be done in Eject mode;...
  • Page 70 REMOVAL INSTALLATION STEP START- REMOVE/*UNHOOK/ /LOC. PART ADJUSTMENT Fig. No. UNLOCK/RELEASE/ CONDITION UNPLUG/DESOLDER Loading Arm S(B) (+)Refer to Alignment [35] [25] DM2,DM15 Assembly Sec.Pg.2-4-9 Loading Arm T(B) (+)Refer to Alignment [36] [35] DM2,DM15 Assembly Sec.Pg.2-4-9 [2],[25] M Brake T(HI) Assembly DM1,DM16 *(P-6) [37] [38]...

  • Page 71: Top View

    Top View [45] [46] [50] [47] [14] [13] [11] [15] [39] [40] [10] [12] [38] [37] [44] [33] [42] [31] [32] [41] [43] Fig. DM1 Bottom View [19] [36] [35] [24] [26] [27] [25] [23] [28] [22] [29] [20] [34] Fig.
  • Page 72 (S-1) (S-1) (S-2) (P-1) (S-4) (S-3) Fig. DM5 Fig. DM3 [50] Type A Pin D Pin C Type B [51] [50] (L-9) Pull up Slide Pin A (L-8) Pin B Slot A Slots B (S-5) Slot A First, while pushing the locking tab as shown in the right, slide and pull up the right side on [2] to release Pin A and Pin B from the slots A.
  • Page 73 (S-7) (S-9) [14] (S-10) [15] Desolder from bottom (S-6) Lead with White Stripe Belt View for A Fig. DM7 Fig. DM9 (L-2) Adj. Screw [17] After removing the Screw (S-11), [11] while pressing the Locking Tab (L-3) (L-1) (L-3), remove [16]. (P-3) [16] [13]...
  • Page 74 (C-1) Cap Belt [20] [19] [21] Fig. DM12 (S-12) Fig. DM11 2-4-6 DUALPALDA...
  • Page 75 [25] (C-5) (C-2) (C-3) [22] [23] (S-15) [26] (L-4) (P-4) [27] (C-6) [29] (C-4) [28] [30] [24] [31] (P-4) [28] [32] When installing [23], install the spring (P-4) to [28] as Position of Mode Lever when installed shown in the left figure, and Pin of [38] then install [23] while Pin on...
  • Page 76 Refer to the Alignment Section, Page 2-4-9. [46] [45] [47] (P-5) (L-7) [34] [33] [36] [35] (L-5) Fig. DM17 Fig. DM15 [39] (C-8) [42] (C-7) (P-7) [44] [41] turn (L-6) [43] [48] [49] Slide (P-6) [38] turn [37] [40] Fig. DM18 turn Fig.

  • Page 77: Alignment Procedures Of Mechanism

    ALIGNMENT PROCEDURES OF MECHANISM Alignment 1 The following procedures describe how to align the individual gears and levers that make up the tape Loading Arm, S and T Assembly loading/unloading mechanism. Since information about the state of the mechanism is provided to the Install Loading Arm S and T Assembly so that their System Control Circuit only through the Mode Switch, triangle marks point to each other as shown in Fig.
  • Page 78 Alignment 3 Cam Gear (A), Rack Assembly Install the Rack Assembly so that the first tooth on the gear of the Rack Assembly meets the first groove on the Cam Gear (A) as shown in Fig. AL4. Cam Gear (A) Top View Alignment 3 First tooth...
  • Page 79 EXPLODED VIEWS AND PARTS LIST SECTION DVD PLAYER & VIDEO CASSETTE RECORDER DCVR-2700 Sec. 3: Exploded views and Parts List Section I Exploded views I Parts List TABLE OF CONTENTS Exploded Views ............... . 3-1-1 Mechanical Parts List.

  • Page 80: Exploded Views

    EXPLODED VIEWS Cabinet 2L041 2B48 2L071 2L071 2L041 2L071 2L041 2L071 JW004 2L041 2L041 2L071 2B18 L1-7 L1-8 JW003 Junction B CBA JW009 L1-6 DVD Main CBA Unit 2L041 2L021 JW007 2L021 2B10 Junction A CBA 2B38 JW008 2L034 2B41 JW005 2L034 2B37...
  • Page 81 Packing Some Ref. Numbers are not in sequence. Unit 3-1-3 H9307PEX...
  • Page 82 DECK EXPLODED VIEWS Deck Mechanism View 1 Mark Description (Blue grease) Floil G-374G SLIDUS OIL #150 L1467 B494 B553 L1191 B411 B567 L1053 B410 L1051 Chassis Assembly Top View (Lubricating Point) B501 B560 L1450 B426 L1466 B121 B126 L1468 B492 B571 Some Ref.
  • Page 83 Deck Mechanism View 2 Mark Description B587 Note: Both TENSION Floil G-374G (Blue grease) LEVER ASSEMBLY MK11(B27) and the TENSION SANKOUL FG84M (Yellow grease) LEVER ASSEMBLY MK11 (B587) can be used. B574 B508 B148 B487 B573 L1406 B522 B518 B520 B521 B564 B499...
  • Page 84 Deck Mechanism View 3 Mark Description Floil G-374G (Blue grease) L1321 B347 Note: There are two different, but interchangeable types of CLEANER LEVER(B359) in this model, and have different combination with B361. Please L1321 see Table 1 for details and combination. (Refer to DECK PARTS LIST section.) Table 1 (B359 and B361 Combination) B359 CLEANER LEVER...

  • Page 85: Mechanical Parts List

    MECHANICAL PARTS LIST PRODUCT SAFETY NOTE: Products marked with a Ref. No. Description Part No. have special characteristics important to safety. ACCESSORIES Before replacing any of these components, read care- REMOTE CONTROL UNIT 364/CRC006 NA205FD fully the product safety notice in this service manual. DRY BATTERY R6P/2S or XB0M451T0001 Don't degrade the safety of the product through...

  • Page 86: Electrical Parts List

    ELECTRICAL PARTS LIST PRODUCT SAFETY NOTE: Products marked with a Ref. No. Description Part No. ! have special characteristics important to safety. C105 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222 Before replacing any of these components, read care- C106 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471 fully the product safety notice in this service manual.
  • Page 87 Ref. No. Description Part No. Ref. No. Description Part No. CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZ30F104 CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZ30F104 CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C318 CHIP CERAMIC CAP.
  • Page 88 Ref. No. Description Part No. Ref. No. Description Part No. C457 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7 C517 CERAMIC CAP.(AX) F Z 0.022µF/25V CCA1EZTFZ223 C458 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7 C519 CHIP CERAMIC CAP. CH J 560pF/50V or CHD1JJ3CH561 C459 ELECTROLYTIC CAP.
  • Page 89 Ref. No. Description Part No. Ref. No. Description Part No. C756 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222 C1421 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JK30B103 C1054 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104 C1422 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104 CHIP CERAMIC CAP.
  • Page 90 Ref. No. Description Part No. Ref. No. Description Part No. ZENER DIODE MTZJT-7711B QDTB00MTZJ11 ZENER DIODE MTZJT-7711B QDTB00MTZJ11 D106 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS D1402 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS ZENER DIODE MTZJT-7711A or QDTA00MTZJ11 ZENER DIODE MTZJT-7711A or QDTA00MTZJ11 ZENER DIODE MTZJT-7711B QDTB00MTZJ11 ZENER DIODE MTZJT-7711B...
  • Page 91 Ref. No. Description Part No. Ref. No. Description Part No. Q051 TRANSISTOR KTA1281(Y) or NQSY0KTA1281 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR 2SA1020(Y) or QQSY02SA1020 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR 2SB892(S) QQSS002SB892 TRANSISTOR 2SC2785(H) or QQSH02SC2785 Q052 RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M TRANSISTOR 2SC2785(F) or QQSF02SC2785...
  • Page 92 Ref. No. Description Part No. Ref. No. Description Part No. CHIP RES.(1608) 1/10W J 100k Ω TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815 R105 RRXAJR5Z0104 CHIP RES.(1608) 1/10W J 100k Ω Q752 RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M R106 RRXAJR5Z0104 CHIP RES.(1608) 1/10W J 100k Ω RES.
  • Page 93 Ref. No. Description Part No. Ref. No. Description Part No. CARBON RES. 1/6W J 2.4k Ω or CHIP RES.(1608) 1/10W J 470 Ω R330 RCX6JATZ0242 R475 RRXAJR5Z0471 CARBON RES. 1/4W J 2.4k Ω CHIP RES.(1608) 1/10W J 10k Ω RCX4JATZ0242 R476 RRXAJR5Z0103 CHIP RES.(1608) 1/10W J 18k Ω...
  • Page 94 Ref. No. Description Part No. Ref. No. Description Part No. CHIP RES.(1608) 1/10W J 68k Ω CHIP RES.(1608) 1/10W J 39k Ω R567 RRXAJR5Z0683 R1208 RRXAJR5Z0393 CHIP RES.(1608) 1/10W J 220k Ω CHIP RES.(1608) 1/10W F 56k Ω or R568 RRXAJR5Z0224 R1209 RRXAFR5H5602...
  • Page 95 Ref. No. Description Part No. Ref. No. Description Part No. TACT SWITCH SKQSAF001A SST0101AL041 C2001 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104 SW504 TACT SWITCH KSM0614B or SST0101HH013 CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZ30F104 TACT SWITCH SKQSAF001A SST0101AL041 CHIP CERAMIC CAP.
  • Page 96 SENSOR CBA Ref. No. Description Part No. C652 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471 Ref. No. Description Part No. CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471 SENSOR CBA 0VSA13013 CONNECTOR Consists of the following: CN651 FE CONNECTOR, TOP 10P 10FE-BT-VK-N JCFEJ10JG001 TRANSISTORS DIODES...
  • Page 97 Ref. No. Description Part No. Ref. No. Description Part No. ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221 L1002 BEAD CORE B16 RH 3.5X10X1.3 or XL03010XM001 C1049 CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZTFZ104 BEAD CORE HF70BB3.5X10X1.3 XL03010TE001 CONNECTORS L1003! LINE FILTER 50MH LF-4Z-E503 or LLBG00ZKQ008 LINE FILTER 50MH LF-4D-E503 or LLBG00ZKQ009...
  • Page 98 Ref. No. Description Part No. Ref. No. Description Part No. CARBON RES. 1/4W G 1.2k Ω RCX4GATZ0122 CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 CARBON RES. 1/6W J 1k Ω or R1035 RCX6JATZ0102 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104 CARBON RES.

  • Page 99: Deck Parts List

    DECK PARTS LIST Notes: Ref. No. Description Part No. 1. There are two different, but interchangeable types of FE HEAD ASSEMBLY MK11 or N9742FEL CLEANER LEVER(B359) in this model, and have FE HEAD(MK11) MH-131SF11 or DHVEC01Z0005 different combination with B361. Please see Table 1 FE HEAD ASSEMBLY MK11 or N9743FEL for details and combination.
  • Page 100 Ref. No. Description Part No. B560 KICK SPRING MK10 0VM411475A B562 C DRIVE LEVER L MK10 0VM304408 B563 SLIDER SHAFT MK10 0VM411112 B564 M GEAR(HYT) N12G5F* 0VM412378 B565 SENSOR GEAR MK11 0VM305080 B567 PINCH ARM(B) MK10 0VM304396 B568 BT ARM MK10 0VM304417H B569 CAM HOLDER F MK11...
