American Standard Symphony 4501S Features & Dimensions

GENERAL DESCRIPTION:

C
ast brass valve body. Washerless 47mm ceramic disc
valve cartridge with volume and temperature control. Hot
limit safety stop. Pressure balancing cartridge maintains
constant output temperature in response to changes in
relative hot and cold supply pressures. 1/2" female I.P.S.
inlets/outlets. Easy
2.5gpm/9.5L/min. flow restrictor. Metal lever handle.
Rough-in plaster guard designed for use as thin-wall
mounting adaptor. I.P.S. diverter tub spout.

PRODUCT FEATURES:

Solid Brass Construction:
prolonged contact with water.
Ceramic Disc Valve Cartridge:
smooth handle operation and drip-free performance.
Pressure Balancing Valve:
temperature in response to changes in relative hot and
cold supply pressure. Diaphragm system engineered to
eliminate cross flow and spool "thumping". Avoids failure
due to mineral deposits - ideal for use with hard water.
Adjustable Hot Limit Safety Stop:
amount of hot water allowed to mix with cold. Reduces
the risk of accidental scalding.
Integral Plaster Guard and Mounting Plate:
Plaster guard designed to protect valve during installation
and to serve as a mounting plate for thin wall installations.
Lifetime Finishes:
Won't peel, tarnish or scratch.
Lifetime Warranty on Function and Finish.
SUGGESTED SPECIFICATION:
Bath/shower fitting shall be cast brass construction. Easy clean showerhead and I.P.S. diverter tub spout. Fitting shall be
equipped with pressure balancing cartridge engineered to eliminate cross flow and avoid failure due to mineral deposits.
Fitting shall be equipped with a pressure balancing mechanism and hot limit safety stop. Fitting shall be American Standard
Model # 4501S.
© 2008 AS America, Inc.
ANTI-SCALD PRESSURE BALANCE TUB & SHOWER SET
clean showerhead
Durable, ideal material for
Assures a lifetime of
Maintains output
Limits the

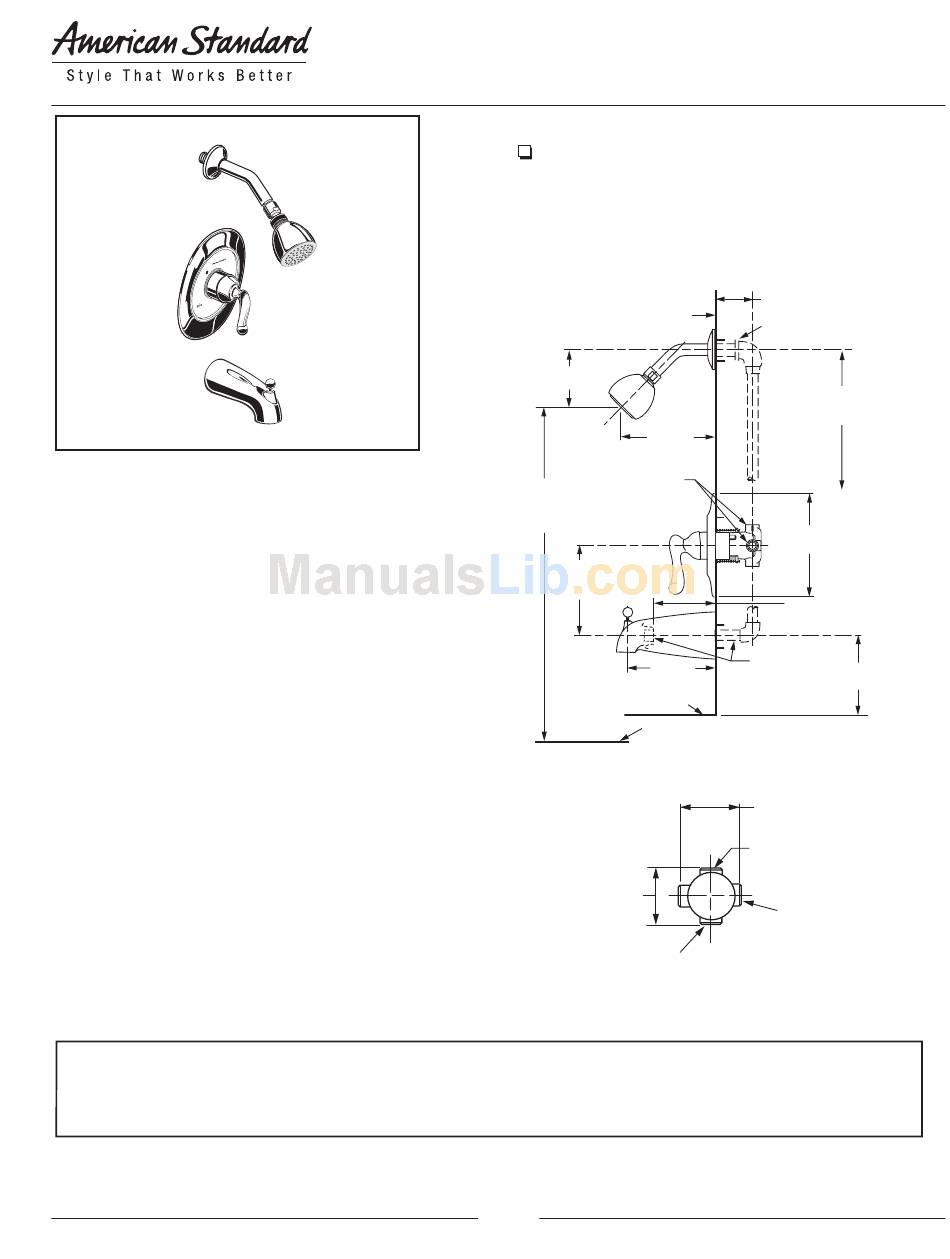

MODEL NUMBER:
4501S Pressure Balance Tub and Shower Set
Easy Clean showerhead. I.P.S. diverter tub spout.
Satin Nickel (PVD) finish.
3-5/8"
(92mm) REF.
"SEE ILLUSTRATION "
74"
(188cm)
FOR HEAD
CLEARANCE
18"
has
(45,7cm)
OPTIONAL
TUB PORT 1/2" NPT
HD-47
1-5/8" TO 3-1/4"
(41mm to 83mm)
FINISHED WALL
1/2" NPT
(12,7mm)
OPTIONAL TO FINISHED FLOOR
USUALLY BETWEEN 65" AND 78"
5-1/2"
(140mm) REF.
(92mm)
1/2" NPT
5-1/8"
(130mm) REF.
TOP OF TUB RIM
BOTTOM OF TUB
INLETS 3-3/8"
SHR. 1/2" NPT
3-3/8"
(86mm)
INLETS 1/2" NPT
THREADED INLETS
SYMPHONY
(165cm - 198cm)
6-3/4"
(172mm)
3-5/8"
4"
(102mm)
(86mm)
