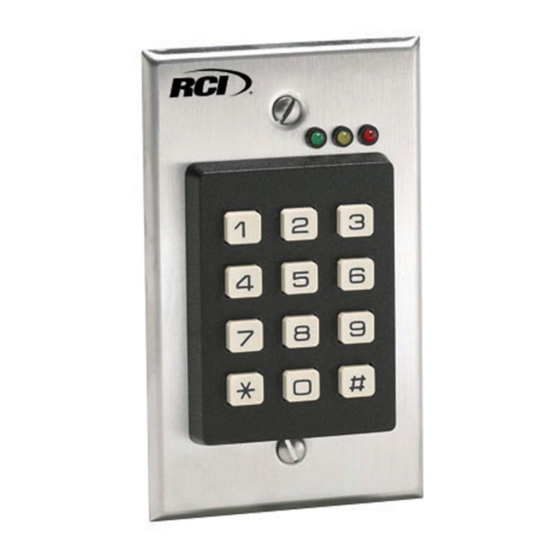

RCI 9212i Installation

I N S T A L L A T I O N

Features:

• 4 Independent Outputs
• 4 Independent Timers
• All Outputs Assignable by Code
• On board 5 Amp Form C Relay
• 120 Users

• Remote Triggering Input

• Keypad Programmable

Memory

Non-volatile EEPROM memory means your codes and
instructions will be there whether you remove power for 5
minutes or 5 years.
Programming
All programming is accomplished entirely from the front
of the keypad. LED or Sounder guidance makes
programming easy, and changing codes a matter of
seconds for an authorized user.
Codes
The RCI keypads allow up to 120 individual user codes to
be valid. Codes may be from 1-6 digits in length and
digits may be repeated. The Master Code is always
assigned to user location one (1).
Main Relay
This is a 5 Amp (10 Amp surge) Form-C relay which can
be toggled or timed from 1 to 90 seconds-by code.

Auxiliary Outputs

Auxiliary outputs can be individually timed from 1 to 90
seconds or act as a toggle switch, and may be triggered
individually or in combination-by code. The three auxiliary
outputs provide a 50mA sink to ground when activated.
Remote Triggering Input
This normally open loop that by default operates the Main
Relay upon activation and can be programmed to trigger
any combination of outputs. Upon a momentary closure,
the selected outputs will energize for their programmed
Voltage Current Rating
12-24 VAC/VDC @ 12VDC 8mA typ – 35mA w/ relay energized
@ 24VDC 16mA typ – 45 mA w/ relay energized
NOTE: As with any electronic product, the 9212i may be subject to irregularities in the AC power line. This can cause malfunction or unstable operation.
Connecting the 9212i to a suitable DC power supply will limit the effects of AC fluctuation on the keypad.
IS9212i
USA: 2697 INTERNATIONAL PARKWAY, PKWY 5, VIRGINIA BEACH, VA 23452 • CANADA: 210 SHEARSON CRESCENT, CAMBRIDGE, ON N1T 1J6
PHONE • 1.800.265.6630 • 519.621.7651 • FAX: 1.800.482.9795 • 519.621.7939 • E-MAIL: SALES@RUTHERFORDCONTROLS.COM
Instructions
Temperature
-20°F to 130°F (-28°C to 54°C)
©2010 RUTHERFORD CONTROLS INT'L CORP. WWW.RUTHERFORDCONTROLS.COM
Stand-Alone Keypad
time. The main relay (if selected) will energize for the
same time period as the Master Code. This feature is
especially useful when controlling an electric locking
device.
Keypress Feedback / Audible Keypress
The RCI keypads will acknowledge a keypress by
momentarily illuminating the yellow LED. This can be
turned off through programming.
Keypad Active Output
The RCI keypads can be programmed to energize a
voltage output whenever a key is touched. This can be
used to turn on accessories such as lights, CCTV camera,
or notify a guard.
Auto-Entry
This feature is used when the need for the code not to be
followed by the * key is desired. The user only needs to
enter their code number and the relay will activate for the
programmed relay time. To use this feature, the user
codes must be the same length as the master code.

Technical Notes:

To avoid ESD (Electro-Static Discharge) from interfering
with the operation of the RCI keypad, ground the negative
terminal of the keypad to earth ground. If the power
supply can not be grounded, then the case should be
grounded.

Packing Checklist:

9212i Keypad
Ten (10) Conductor Wiring Harness (1)
Slotted Screws (2)
Four (4) Conductor Wiring Harness (1)
Features & Programming Guide
Output
Main relay: 5A; form-C @24VDC; 10A surge
Outputs 2-4 are 50mA neg voltage outputs
9212i
PCN10045
R11/10SH
