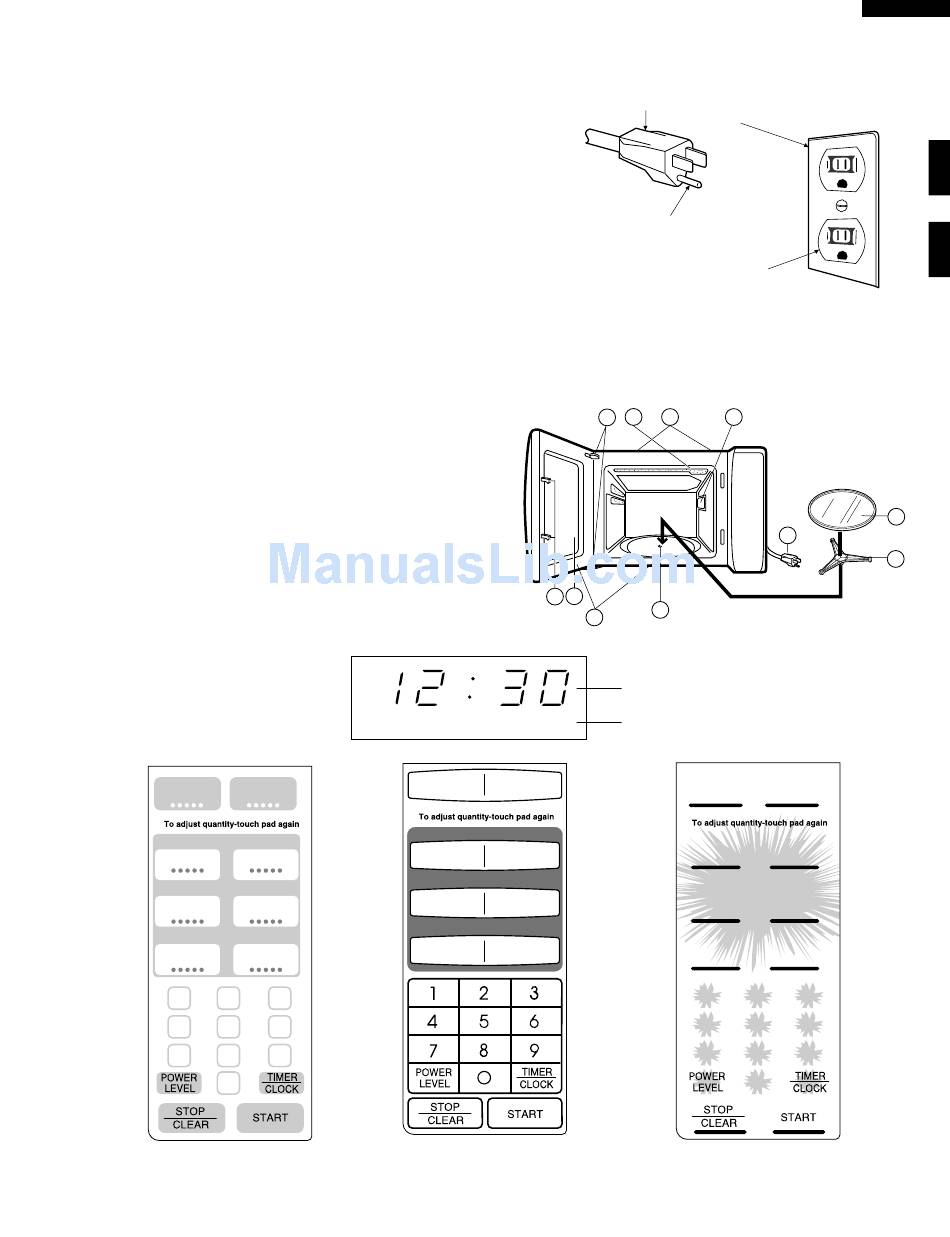

Oven Diagram - Sharp R-203BW Service Manual

Electrical Requirements
The electrical requirements are a 115 -120 volt 60 Hz, AC only,
15 or 20 amp. fused electrical supply. It is recommended that a separate
circuit serving only this appliance be provided. When installing this
appliance, observe all applicable codes and ordinances.
A short power-supply cord is provided to reduce risks of becoming
entangled in or tripping over a longer cord.
Where a two-pronged wall-receptacle is encountered, it is the personal
responsibility and obligation of the customer to contact a qualified
electrician and have it replaced with a properly grounded three-pronged
wall receptacle or have a grounding adapter properly grounded and
polarized. If the extension cord must be used, it should be a 3-wire, 15
amp. or higher rated cord. Do not drape over a countertop or table where
it can be pulled on by children or tripped over accidentally.
CAUTION: DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE ROUND GROUNDING PRONG FROM
THIS PLUG.
1. Oven door with see-through window
2. Safety door latches.
3. Door hinges
4. Door seals and sealing surfaces
5. Turntable motor shaft
6. Removable turntable support
7. Removable turntable
8. Ventilation openings. (Rear)
9. Oven lamp.
10. Wave guide cover.
11. Power supply cord
EXPRESS MINUTE
DEFROST PLUS
SNACKS
POPCORN BEVERAGE
COOKING
BAKED FRESH
POTATO VEGETABLES
REHEATING
DINNER ROLL,
PLATE MUFFIN
1 2
4 5
7 8
0
R-203BW

OVEN DIAGRAM

TOUCH CONTROL PANEL
ON DEF. LBS.
EXPRESS
DEFROST
POPCORN
BAKED
POTATO
DINNER
PLATE
3
6
9
R-209BW
3-Pronged Plug
Grounding Pin
3 9
2 1
4
Time display
QTY. CHECK
Indicator
MINUTE
PLUS
SNACKS
BEVERAGE
COOKING
FRESH
VEGETABLES
REHEATING
ROLL,
MUFFIN
5
Grounded
Receptacle Box
3-Pronged Receptacle
8 10
11
5
EXPRESS MINUTE
DEFROST PLUS
SNACKS
POPCORN BEVERAGE
COOKING
BAKED FRESH
POTATO VEGETABLES
REHEATING
DINNER ROLL,
PLATE MUFFIN
1 2 3
4 5 6
7 8 9
0
R-220BW
R-203BW
R-209BK
R-220BW
