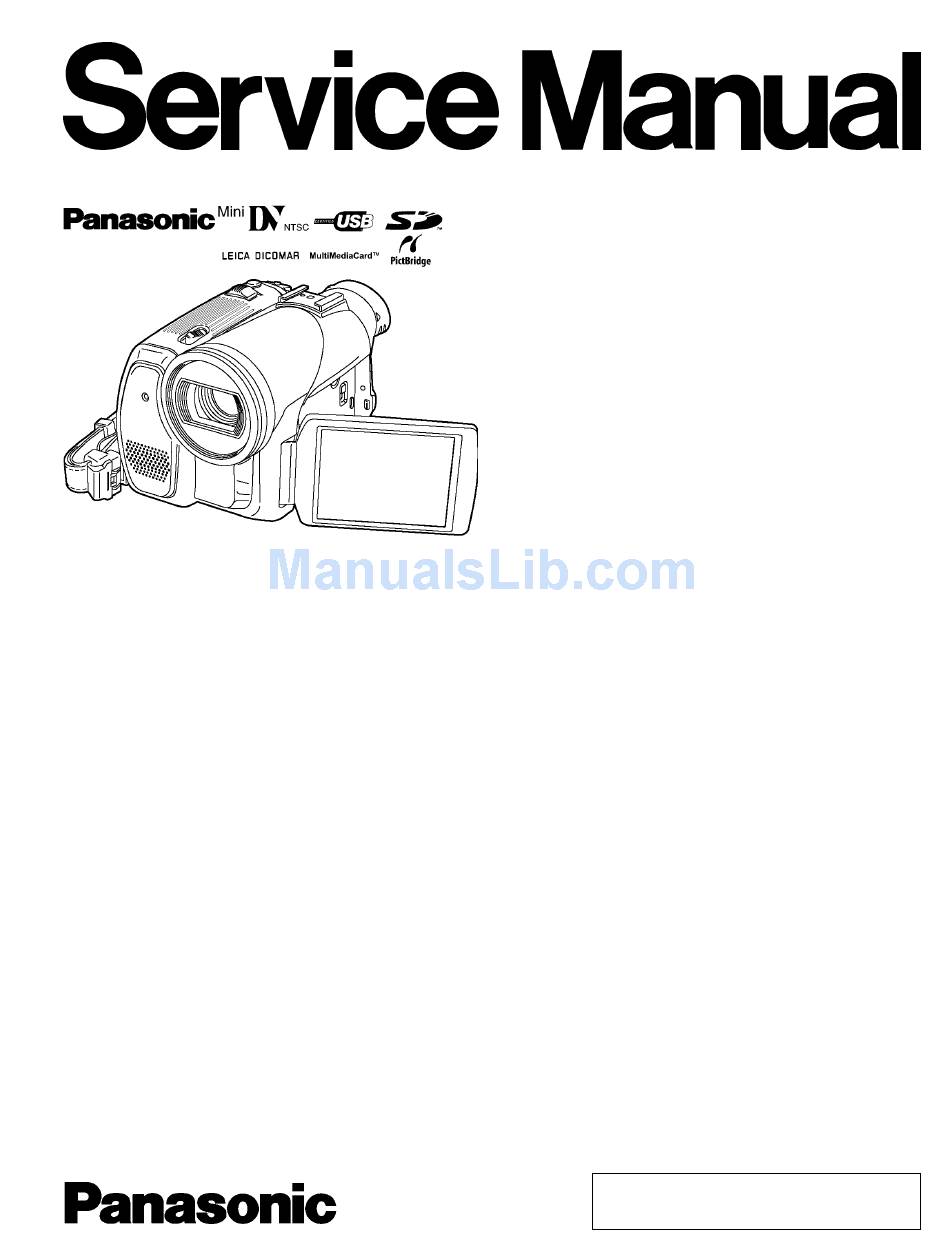

Digital Video Camcorder
PV-GS65PP
A-MECHANISM
Color
(S)...... Silver Type
© 2005 Matsushita Kotobuki Electronics Industries
LTD. All rights reserved. Unauthorized copying and
distribution is a violation of law.
ORDER NO.MKE0501402C1
