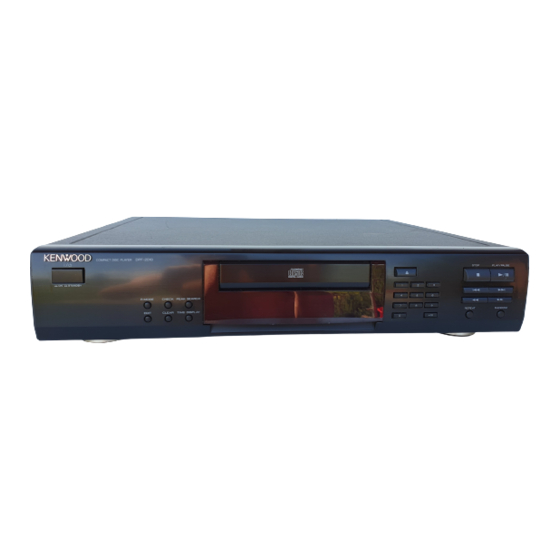

Kenwood DPF-1010 Service Manual

Compact disc player
Hide thumbs

Advertisement

COMPACT DISC PLAYER
DPF-1010/1010E/2010/
DPF-2010E/3010/3010E
SERVICE MANUAL
KENWOOD badge
(B43-0302-04)
ON/STANDBY
PHONES
Phone jack
(E11-0263-08)
Metallic cabinet
(A01-3356-08)
DIGITAL
OUTPUT
OUTPUT
OPTICAL
L
R
Phono jack
(E63-0188-08)
In compliance with Federal Regulations, following are reproductions
of labels on, or inside the product relating to laser product safety.
Refer to DP-3080MK /3090 Service manual (B51-5349-00), if you
require disassembly for repair.
Knob
Dressing panel
(K29-7372-08)
(A21-3697-08)
P.MODE
CHECK
PEAK SEARCH
EDIT
CLEAR
TIME DISPLAY
Knob
Front glass
(K29-7373-08)
(B10-3413-08)
Optical receiving module
Miniature phone jack
(W02-2620-08)
(E11-0188-05)
SYSTEM CONTROL
ƒ
SL16 XS 8
Slide switch
(S62-0069-08)
© 1998-5/B51-5428-00 (K/K) 2128
Panel *
(A60-)
0
1
2
3
4
5
6
7
8
9
+
0
10
Knob
(K29-7374-08)
AC power cord *
(E30-)
Power cord bushing
(J42-0200-08)
* Refer to parts list on page 14.
KENWOOD-Corp. certifies this equipment conforms to DHHS
Regulations No. 21 CFR 1040. 10, Chapter 1, Subchapter J.
DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM.
Knob
(K29-7375-08)
STOP
PLAY/PAUSE
7
6
4
¢
1
¡
REPEAT
RANDOM
Illust is DPF-3010.

Advertisement

loading

  Also See for Kenwood DPF-1010

  Related Manuals for Kenwood DPF-1010

  Summary of Contents for Kenwood DPF-1010

  • Page 1 * Refer to parts list on page 14. In compliance with Federal Regulations, following are reproductions KENWOOD-Corp. certifies this equipment conforms to DHHS of labels on, or inside the product relating to laser product safety. Regulations No. 21 CFR 1040. 10, Chapter 1, Subchapter J.
  • Page 2: Table Of Contents

    DPF-1010/1010E/2010/2010E/3010/3010E CONTENTS / ACCESSORIES Contents CONTENTS/ACCESSORIES ........2 SCHEMATIC DIAGRAM ..........7 CIRCUIT DESCRIPTION ..........3 EXPLODED VIEW .............12 ADJUSTMENT .............4 PARTS LIST...............14 PC BOARD ..............5 SPECIFICATIONS ........Back cover Accessories Audio cord ....(1) System control cord ..(1) (E30-2841-08) (E30-2733-05) plug adaptor ....(1)
  • Page 3: Circuit Description

    Pin name Description NOT USED REMOCON INPUT PORT PE5~7 – NOT USED MUTE DIGITAL MUTE (ON : "H") DPF-1010/2010 ONLY MLEN TC9423F LATCH CONTROL TC9423F CLOCK CONTROL SENS SENSE INPUT FROM CXD2587Q TC9423F DATA CONTROL SQCK CLOCK TO READ Q_DATA...
  • Page 4: Adjustment

    DPF-1010/1010E/2010/2010E/3010/3010E ADJUSTMENT INPUT OUTPUT PLAYER ALIGNMENT ITEM ALIGN FOR FIG. SETTING SETTING SETTING POINT SET THE TEST DISC TO DISC NO SONY YEDS–18. (TYPE4) Connect an oscilloscope FOCUS TEST DISC Optimum PLAY VR201 to TP201 OFFSET TYPE 4 eye pattern...
  • Page 5: Pc Board

    PC BOARD (Component side view) Refer to the schematic diagram for the value of resistors and capacitors.
  • Page 6 ELECTRICITY CIRCUIT UNIT MECHA. ASS’Y TP201 3 4 5 6 7 Q201 PICKUP (KSS-213C) LASER DIODE CONTROL CP201 2.5V +2.5V 2.0V Q201 L201 3.7V RF AMP 10uH IC201 3.0V R201 33K LDON R202 33K 2.4V R213 R203 33K 2.4V 5.6K 2.5V R204 33K R205...
  • Page 7 +11.5V +11.5V C103 0.047 +8V AVR IC101 IC103 D101 +11.5V -22.5V -22.5V -22.5V D102 8.0V 11.5V R200 C104 0.047 7.4V -8V AVR C106 0.047 D401 D402 Q401 6.7V R402 -8.0V D104 -12.6V 7.4V R107 D103 -12.6V +5V AVR 1/4W C105 0.047 IC102 -12.6V -12.6V...
  • Page 8 DPF-2010 DESTINATION R518, R610, R612, J202, R551 R552 R691 D JK861 611,613 614,615 COUNTRY ABB. GENERAL MARKET AUSTRALIA U.K. EUROPE DPF-1010 DESTINATION R518, R610, R612, J202, R551 R552 R692 JK861 611,613 614,615 COUNTRY ABB. GENERAL MARKET AUSTRALIA U.K. EUROPE DPF-3010...
  • Page 9 DPF-1010/1010E/2010/2010E/3010/3010E EXPLODED VIEW (MECHANISM) ø 3X10(BLK) : N89-3010-45 M 2.6X5 : N09-3303-08 ø 3X8 : N09-3302-08 ø 2X18.5 : N09-3301-08 ø 2X3 : N39-2025-46 ø 2.6X6 : N32-2606-46 AEx2 Parts with exploded view numbers larger than 700 are not supplied.
  • Page 10 HT101 ø3x8 (BLK) : N89-3008-45 ø3x17 : N89-3017-46 ø4x8 : N09-3095-08 ø3x16 : N35-3016-46 ø3x4 : N35-3004-46 DIGITAL PT101 SYSTEM OUTPUT SL16 ø3x8 : N89-3008-46 CONTROL OPTICAL OUTPUT ø3x8 : N09-1522-05 JK651 SW651 JK861 JK801 DPF-3010/2010 ONLY S903 STOP PLAY/PAUSE S919 S926 S915 S920 S924...
  • Page 11: Audio Cord

    Parts No. Description Ref. No Parts No. Description ress Parts nation marks ress Parts nation marks C114 CE04KW1H101M ELECTRO 100UF 50WV DPF-1010/2010/3010 C115 CK45FF1H473Z CERAMIC 0.047UF C116 CE04KW1H101M ELECTRO 100UF 50WV A01-3356-08 METALLIC CABINET C117,118 CK45FF1H103Z CERAMIC 0.010UF A09-0356-08 BATTERY COVER...
  • Page 12 New Parts New Parts Parts without Parts No. are not supplied. Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No.
  • Page 13: Specifications

    Weight (Net) ..............4.3 kg (9.5 lb) 1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notic e. 2. The full performance may not be exhibited in an extremely cold location (under a water-freezing temperature).
