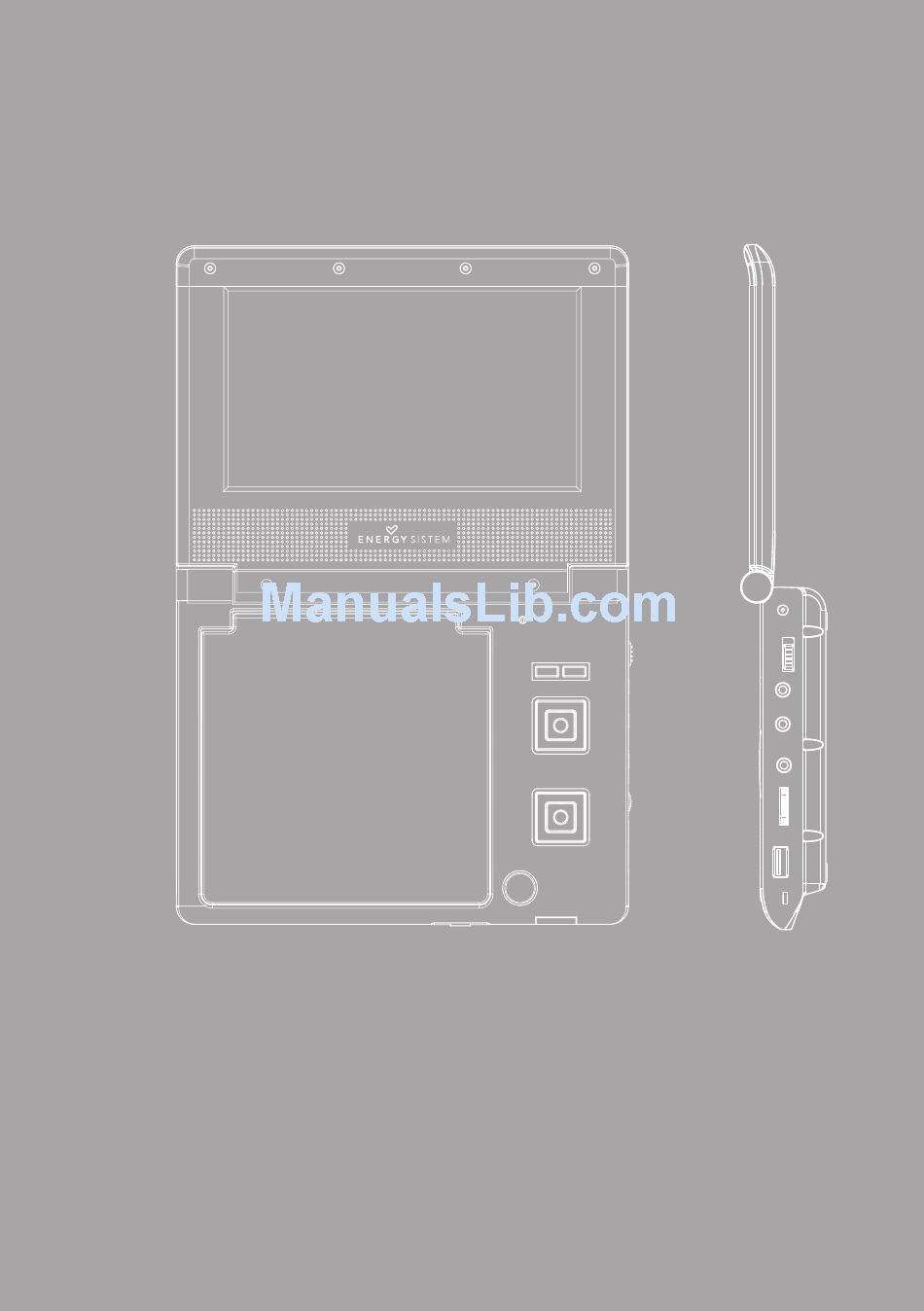

- Page 1 User manual...
-
Page 3: Table Of Contents
taBlE of CoNtENts Safety precautions Introduction Controls 3.1. Main unit 3.2. Remote control Media 4.1. Optical disc 4.2. Memory card 4.3. USB Operation 5.1. Media selection 5.2. Video 5.3. Audio 5.4. Picture 5.5. Slideshow with background music 5.6. Common operations 5.6.1. -
Page 4: Safety Precautions
To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. This manual provides information on the operation and maintenance of your DVD player. Should the unit require service, contact an authorized service location. -
Page 5: Controls
3. CoNtrols 3.1. maIN uNIt TFT screen Stereo speakers For the description of controls 3-10 see the corresponding buttons at the remote control diagram below. Stop Play/Pause Source Previous/Next Setup Menu Up/Down/Left/Right Enter Open. Push to open the DVD/CD lid. Power LED High Speed USB 2.0 host port (Type A receptacle) -
Page 6: Remote Control Unit
3.2. rEmotE CoNtrol uNIt The function performed by some buttons can be different depending on the context they are used. Play/Pause: starts or pauses playback. ‘MENU’ Accesses menu on a DVD disc. While playing music, photos or movies from Stop: stops playback. files press ‘MENU’... -
Page 7: Media
INsErt thE BattErY 1. Open the battery door. 2. Insert two AAA size 1.5V batteries. Remove battery during storage or when you are not using the DVD player for a long time. 4. mEDIa 4.1. oPtICal DIsC Types of playable discs: ≥... -
Page 8: Memory Card
Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your DVD player’s region code or the disc will not play. If you try to play a DVD with a different region code than your player, the message “Check region Code”... -
Page 9: Video
If parental control is set and the disc does not fit the rating setting you must input the password. (See “parental” on setup section of the manual). Some playback operations of DVDs and Video CDs (like Menu/Title/Audio/Subtitle/Zoom) may be intentionally enabled/disabled by the disc authoring. This unit plays DVDs and Video CDs according to disc content designed by the author, therefore some playback features may not be available or other functions may be added. -
Page 10: Still Picture
5.3. auDIo CD (CDDa) aND mP3/Wma/ogg VorBIs fIlEs This unit can play Audio CDs and MP3 (MPEG-1 Audio Layer 3)/WMA (Windows Media Audio)/Ogg Vorbis files contained in DVD/CD/USB devices/memory cards. ≥ Audio CD: upon insertion it will be played automatically. ≥... -
Page 11: Slideshow With Background Music
To select the previous or next 12 images use or move to “Prev” / “Next” labels at the bottom with and press ‘ENTER’. You can move across the 12 pictures with Use ‘ENTER’ to display the selected photo. Another option is using the numeric buttons or selecting “Slide Show” at the bottom of the screen. Select “Menu”... -
Page 12: Repeat A-B
The program function allows you to customize the track (Audio CD, SVCD, VCD) or chapter (DVD) playback order. The Program feature can be activated only when a suitable disc is in the DVD player. There are 20 available slots to store the track or chapter customized playback order. -
Page 13: Setup
The Program menu and the Settings menu are mutually exclusive, so ‘PROGAM’ is disabled while in the Settings menu and vice versa. While using the Program feature the text “PROGRAM” will be displayed on screen. 6. sEtuP General operation: Press ‘SETUP’ to enter the Setup Menu. Press ‘ENTER’... -
Page 14: Audio Setup Page
Select the television system that corresponds to your TV: NTSC or PAL. In order for a DVD disc to play on this Player, the colour system of the Disc, the TV and the DVD Player should match. PAL: Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output... -
Page 15: Rating Explanations
NTSC: Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc and output in NTSC format. Auto: Change the video signal output automatic according to the playing disk format. audio, subtitle and disc Menu These options set the Audio (soundtrack), Subtitle and Disc menu language fit for you. -
Page 16: Password Setup Page
6.5. PassWorD sEtuP PagE This feature is used for parental control. The password is a 4-digit code. Password Mode Set password mode on/off. If set to off, you will not be asked for the password when changing level at parental control settings. Password Enter the current password. -
Page 17: Dvd
≥ Maintaining tHe unit The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use. -
Page 18: Specifications
9. ParamEtErs aND sPECIfICatIoNs Design and specifications are subject to change without prior notice. 9.1. BattErY Output voltage 7.4V Standard charge time 5~6h Storage circumstances Temperature Humidity 1 week -20 C ~ +65 C 65 +- 20% 6 months -20 C ~ +45 C 65 +- 20% Work circumstances Temperature... -
Page 19: File Systems
9.4. DICs format aND CoNtENt: VCD. Video CD SVCD. Super Video CD Audio CD Kodak Picture CD ISO9660 or UDF DVD/CD with JPEG, mp3, WMA, Ogg, AVI files DVD-Video 9.5. fIlE sYstEms CD-R file system format should be ISO 9660 (optional Joliet extension supported) or UDF (Universal Disk Format). UDF VAT (Virtual Allocation Table) is not supported. -
Page 20: Accessories
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. WarraNtY Energy Sistem Soyntec S.A. warrants its products to be free from defects in materials and workmanship at the time of purchase. The warranty period is 36 months from the date of purchase. -
Page 21: Declaration Of Conformity
Fax: 902 119 034 NIF: A53107488 We declare under our own exclusive responsibility that the product: Energy sistem® ENErgY m2400 / m2410 Portable DVD Player Is in compliance with the essential directives, norms and standards of the European union 89/336/EEC (EmC Directive).
