PORTABLE DVD
USER'S MANUAL
Mobile 1400
Before connecting, operating or adjusting this product,
please read this user's manual carefully and completely.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobile 1400 and is the answer not in the manual?

Questions and answers

Summary of Contents for ENERGY SISTEM Mobile 1400

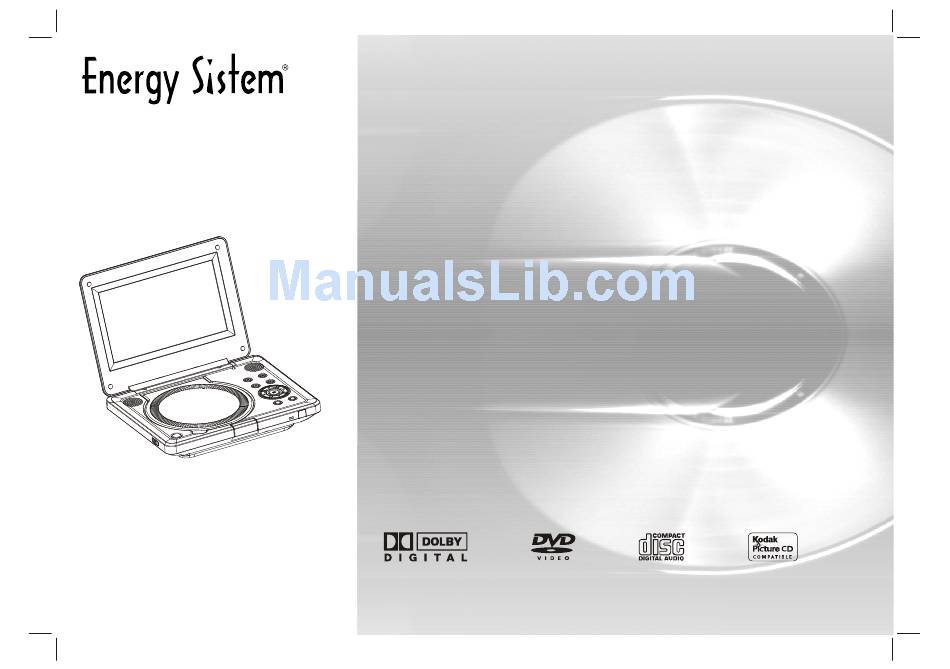

  • Page 1 PORTABLE DVD USER'S MANUAL Mobile 1400 Before connecting, operating or adjusting this product, please read this user's manual carefully and completely.
  • Page 2: Table Of Contents

    Table of Contents Contents Initial settings Table of Contents P17-P19 Safety Precautions General Operation P9-P10 Lock(Parental Control) P18-P19 P9-P10 Before Use(Continued) P3-P4 P9-P10 Additional Features P5-P8 Identification of Controls Parameters and specifications P20-P21 P9-P10 P9-P10 P9-P10 Main Unit Battery Pack Troubleshooting tips P9-P10 Remote control unit...
  • Page 3: Safety Precautions

    Safety Precautions CAUTION RISK OF ELECTRIC SHOCK Notes on Copyrights: DO NOT OPEN It is forbidden by law to copy, broadcast, show,broadcast via Warning:To reduce the risk of electric shock,do not remove cable, play in public, or rent copyrighted material without the cover or back of this product.There are no user-serviceable permission.
  • Page 4: Before Use(Continued)

    Before Use(Continued) Introduction About the Symbol Display To ensure proper use of this product, please read this owner manual ¡° ¡±may appear on your TV display during operation and indicates carefully and retain for future reference. that the function explained in this owner's manual is not available on that specific DVD video disc.
  • Page 5 Before Use (Continued) Types of Playable Discs Manufactured under license from Dolby Laboratories."Dolby", _________________________________________ "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.DTS and DTS Digital Out are trademarks (8 cm / 12 cm disc) _________________________________________ of Digital Theater Systems,Inc. Video CD (VCD) Region code (8 cm / 12 cm disc)
  • Page 6: Identification Of Controls

    Identification of Controls Main Unit 1.LCD screen 2.Speakers (Previous) (next) (Play or pause) (Stop) (Left/right/up/down) Select an item in the menu.Enter confirms menu selection. 8.Mode Select LCD size:16:9 ,4:3 mode and set the LCD's brightness/contrast/hue. 9.Menu 10.Open 11.Power switch 12.DC in (7.4V) connect the AC adapter 13.Videos in/Video out switch 14.Headphone out jack...
  • Page 7: Battery Pack

    Identification of Controls Battery Pack 1 1 2 2 1.Power charge indicator during recharging , indicator is red.If Charge the battery pack before using it for the first time. recharging is complete, charge indicator changes to green. Attaching the battery pack 2.Remote sensor.
  • Page 8: Remote Control Unit

    Indentification of Controls Remote control unit 1. PLAY/PAUSE ( Starts playback or pause playback . 13.ENTER Confirms menu selection. 2. STOP ( MUTE POWER Stops playback. 14.MENU Accesses menu on a DVD disc. AUDIO 3. REVERSE SCAN/SKIP ( (Left/right/up/down)or set PBC on or off Go to previous chapter / track or to the on a VCD disc.
  • Page 9: Insert The Battery

    Getting Started Identification of Controls Introduction Insert the battery DVD+R/RW DVD -R and DVD +R are two different standards for recordable DVD drives and discs. This format allows information to be recorded onto the DVD disc only once. DVD +RW and DVD -RW are two standards for re-writable media, meaning the DVD content can be erased and re-recorded.
  • Page 10: Tft Screen Adjust

    Getting Started Introduction TFT screen adjust If you want to adjust the effect of TFT you can use the"MODE"and Title (DVD video discs only) " "on the panel."BRIGHTNESS" "CONTRAST" "HUE" and A title is generally a distinct section of a DVD disc. For example the "SCREEN MODE":16:9 / 4:3 are adjustable.
  • Page 11: Playing A Dvd Or Video Cd(Operation)

    Getting Started Playing a DVD or Video CD(Operation) Playback Setup Moving to another CHAPTER/TRACK 1. turn on the power switch at the left side of the product. When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as 2.
  • Page 12 Getting started Playing a DVD or Video CD(Operation) Special DVD Features Checking the contents of DVD discs: DVD Video Discs - " Repeat Chapter / Title/Off" Menus DVDs may offer menus that allow you to access special Chapter: repeats the current chapter. Chapter features.
  • Page 13 Basic operation Playing an Audio CD or MP3/WMA Disc File names should have a maximum of 8 letters and must incorporate The DVD player can play CD and MP3/WMA formatted recordings an" .mp3" or " .wma" extension. on CD-R,CD-RW,DVD+R and DVD+RW discs. They should not contain special letters such as "/? * : <...
  • Page 14: Basic Operation

    Basic operation Playing a JPEG Disc Audio CD and MP3/WMA Disc Features JPEG Slide Show Pause There are 16 types for slide show. 1. Press PLAY/PAUSE during playback. You can press Program repeatly to select the slide show Mode. 2. To return to playback, press PLAY/PAUSE again. JPEG Still Picture 1.
  • Page 15: Playing A Jpeg Disc

    Basic operating Playing a JPEG Disc Playing a DVD VR format Disc This unit will play DVD-R/RW discs recorded using the DVD-Video To rotate picture format that have been finalized using a DVD-recorder. Press or during showing a picture to rotate thepicture clockwise or counter clockwise.
  • Page 16: Playing A Divx Movie Disc

    Basic operating Playing a Divx Movie Disc Playable Codec format Using this DVD Player you can play DivX disc. "DIVX3.xx ", "DIVX4.xx ", "DIVX5.xx ", "XVID ","MP43 ", "3IVX". 1. Insert a disc and close the tray.The folder menu appears on the TV screen.
  • Page 17: Programmed Playback

    Basic operating Programmed playback Repeat Programmed Tracks The program function enables you to store your favourite tracks from 1. Press REPEAT when playing a disc.The " " repeatcon any disc in the player memory. appears. 1. Press PROGRAM The program menu appears. 2.
  • Page 18: Initial Settings

    Initial settings General Operation Display Press SETUP. The Setup menu appears. TV Display Use " " to select the desired page then press ENTER 1.Normal/PS or DOWN to move into the page.The screen shows the current Select pan scan mode. page's items.
  • Page 19: Lock(Parental Control)

    Initial settings Lock(Parental Control) 3.Select the parental control item,screen will display a dialog, RATING you must input the 4-digit security code you created.If you Some movies contain scenes that may not be suitable for children have not yet entered a security code you are prompted to do to view.
  • Page 20: Additional Features

    Initial settings Lock(Parental Control) Additional Features Screen Saver Password (Security Code) The screen saver appears when you leave the DVD player in Stop You can enter or change password. mode for about five minutes. If the Screen Saver is lasted go into standby move auto mutically.
  • Page 21: Parameters And Specifications

    Parameters and specifications Battery Parameters Maintenance and Service Battery Specifications£º Refer to the information in this chapter before contacting a service 1. Output£º7.2V technician. 2. Capacity£º4600 mA h 5000mA h for option Handling the unit Charge / Discharge Time£º When shipping the unit 1.
  • Page 22: Electronical Parameters

    Parameters and specifications Electronical parameters System Standard requirement Standard requirement Item Item :Semiconductor laser, wavelength 650 nm Laser Signal system Power requirements : AC 90-260 V , 50/60 Hz : PAL / NTSC Dimensions (Approx.) : 210(L)X165(W)X37.5MM : DVD (PCM 96 kHz): 8 Hz to 44 kHz Frequency DVD (PCM 48 kHz): 8 Hz to 22 kHz response...
  • Page 23: Troubleshooting Tips

    Troubleshooting tips Troubleshooting tips( Common) Troubleshooting tips(DVD) Before calling for service, you can check the following items on Play does not commence even when title is selected: symptoms and solutions Confirm the "Rating" settings. No sound or distorted sound: Audio soundtrack and/or subtitle language is not the one selected Ensure that the equipment is connected properly.
  • Page 24: Definiton Of Terms

    Definition of terms Definition of terms Track number Angle These numbers are assigned to the tracks which are recorded on CDs. Recorded onto some DVD discs are scenes which have been simult- They enable specific tracks to be located quickly. aneously shot from a number of different angles(the same scene is shot from the front, front the left side, from the right side, etc.).
  • Page 25 Please fill the blanks with the model number and serial number of this player for future reference Model no.: Seriall no.:...
