Summary of Contents for ENERGY SISTEM M3500

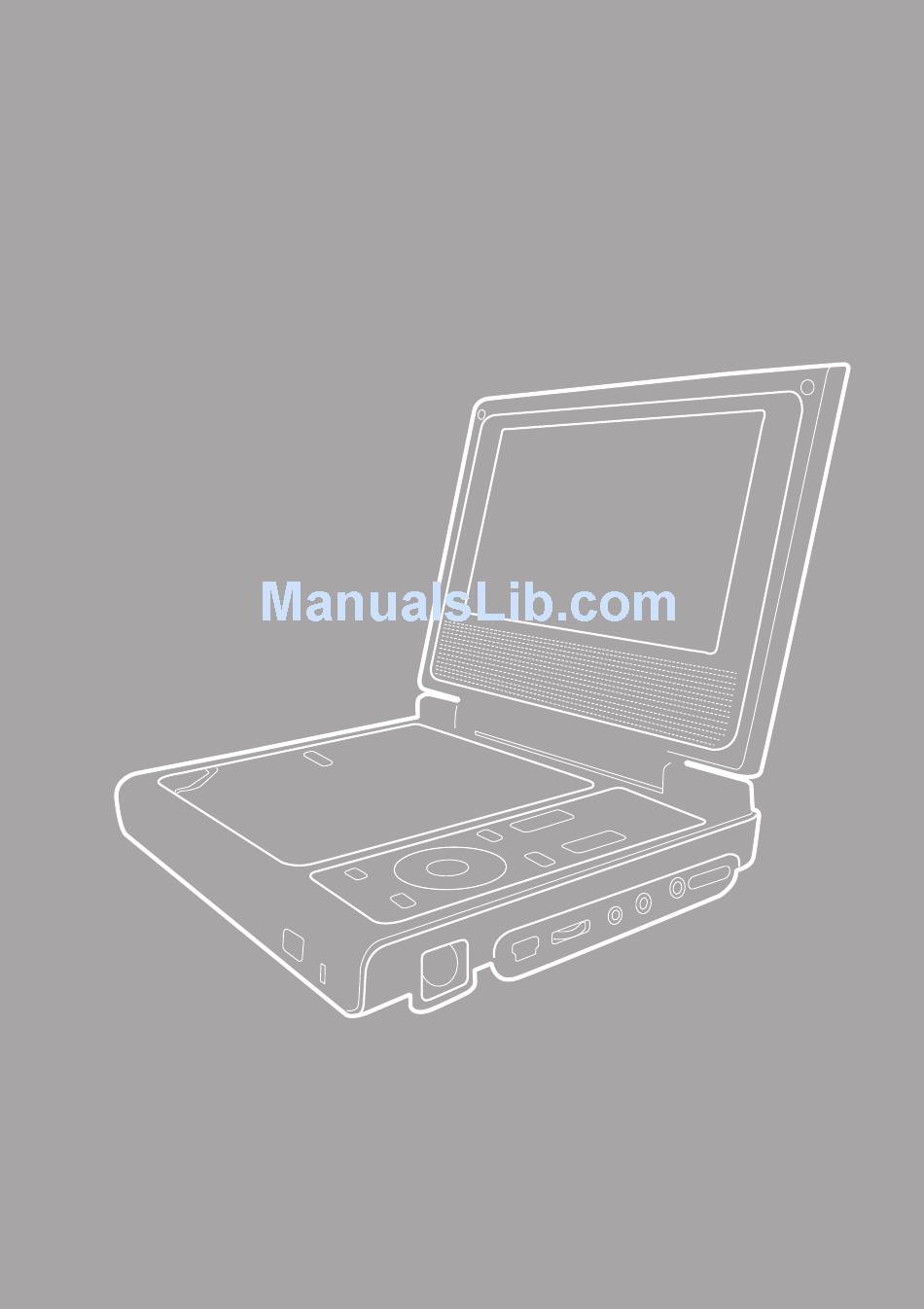

  • Page 1 User Manual...

  • Page 3: Safety Considerations

    1. INTRODUCTION To ensure your safety and the safety of others, please ensure that you read all the safety information before operating this product. Keep this information in a safe place for future reference. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.
  • Page 4 ALWAYS unplug the product before you clean it. Do not use liquid or aerosol cleaners. Clean the set top box with a soft, damp (not wet) cloth. M3500 handling and care Place the product in a well-ventilated area Don’t install it in the cold or under direct sunlight...

  • Page 5: Controls And Connections

    Next track/file. 3.5 mm (1/8”) Stereo earphone output. Previous track/file. 3.5 mm (1/8”) TRRS A/V output. SETUP: M3500’s setup menu. Volume control. EXIT: Return to the previous menu. USB host port (Type A). Navigation buttons and OK. Used to browse Antenna coaxial connector.
  • Page 6 3. REMOTE CONTROL 3.1. BUTTON DESCRIPTION 18 19 22 23 25 26 10 11 27 28 12 13 29 30 14 15 31 32 16 17 33 34 MUTE: Mute/unmute the sound. GOTO: Go to a specific point of time when playing a video 4:3/16:9: Switch between normal and panoramic mode.

  • Page 7: Inserting A Disc

    3.2. BATTERY Pull the battery loader out and insert a CR2025 battery. Make sure to place the battery in the correct direction. When not using the remote control for a long time remove the battery. When operating range reduces replace the battery. 4. SETUP 4.1. INSERTING A DISC Press the SOURCE button on the remote control and use the up/down buttons to select the...

  • Page 8: Dvd Setup

    5. MAIN MENU The main menu allows you to access DVD Setup, DVB Menu, System Setting and Game. Press the SETUP button to access the main menu. 5.1. DVD SETUP 5.1.1. Language Setup ≥ Menu: To select the disc menu language. ≥ Audio: To select the audio language. ≥...

  • Page 9: Channel Search

    Move This option allows you to change the order of channels on the list. Go to the “Move” box correspon- ding to the channel that you want to move. Press OK, then use the up/down buttons to move the channel. Then press OK to confirm. You can use this option to delete channels.

  • Page 10: System Setup

    The Parental Setting can be used together with the Channel lock to lock channels. In order to enter the Parental Setting page, you must enter the PIN code. This menu enables you to select the channels to be locked. To view the locked channels, the user must enter the correct PIN code. Note: the default PIN code is 6666.
  • Page 11 4:3LB – Select this format when the unit is connected to a 4:3 TV. Wide-screen images will be shown in full with black bands at the top and bottom of the screen. 16:9 – Select this format to play wide-screen videos in full-screen mode. 5.3.3. P references ≥...

  • Page 12: Playing Dvd / Cd / Vcd Discs

    6. PLAYING DVD / CD / VCD DISCS ≥ Open/Close Press to open the disc tray. Press this button again to close the disc tray. The unit will start playback automatically. Note: Load the disc on the tray with printed side facing up. ≥ Play/Pause Press to start playback. Press this button again to pause playback. ≥...
  • Page 13 To return to the normal view, press the Zoom button until the message x1 appears. ≥ Angle Change the viewing angle on a DVD. This button enables you to view a scene from different angles (the availability of this function depends on the DVD). Press Angle repeatedly to select different viewing angles.

  • Page 14: Playing Mp3 / Jpeg / Wma / Mpeg 4 Files

    ≥ Repeat playback A specific title, chapter or track can be played repeatedly. Note: During VCD / SVCD playback, repeat playback is only available when PBC is OFF. REPEAT button: DVDs: Off > Chapter > Title CD /VCD/SVCD: Off > Track > All MP3 / JPEG / WMA files: Off >...

  • Page 15: Dvb-T Operation

    or rotate the images displayed. Press the ANGLE button repeatedly to select a different transition mode. During playback, you can press the MENU button to return to the root menu or press the Stop button to display the JPEG files in thumbnail mode and you can then select “Rotate” or “Slide Show”.

  • Page 16: Troubleshooting

    9. TROUBLESHOOTING If you experience problems with this receiver or its installation, in the first instance please read carefully the relevant sections of this User Manual and this Troubleshooting section. Problem Possible solution No power Check that the battery is properly charged. If not then charge the battery by connecting the power adapter Check that the player is switched on.

  • Page 17: Specifications

    10. SPECIFICATIONS Item Specification Connectors RF in IEC 169-2 female connector Stereo headphones 3.5 mm jack Multimedia playback FAT32 Some external hard disks may not be supported A/V out RCA, Composite video (CVBS) + audio L/R Power Input AC 100—240 V 50/60 Hz Consumption 15 W max.

  • Page 18: Warranty Procedure

    WARRANTY Energy Sistem Soyntec S.A. warrants its products to be free from defects in materials and workman- ship at the time of purchase. The warranty period is 36 months from the date of purchase. WARRANTY PROCEDURE ≥ Visit the Support section at http://support.energysistem.com and select your product to view the FAQ (Frequently Asked Questions).
