Panasonic NN-P994SFR Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Microwave Oven
  5. NN-P994SFR
  6. Service manual

Panasonic NN-P994SFR Service Manual

Hide thumbs Also See for NN-P994SFR:
Table of Contents

Advertisement

Quick Links

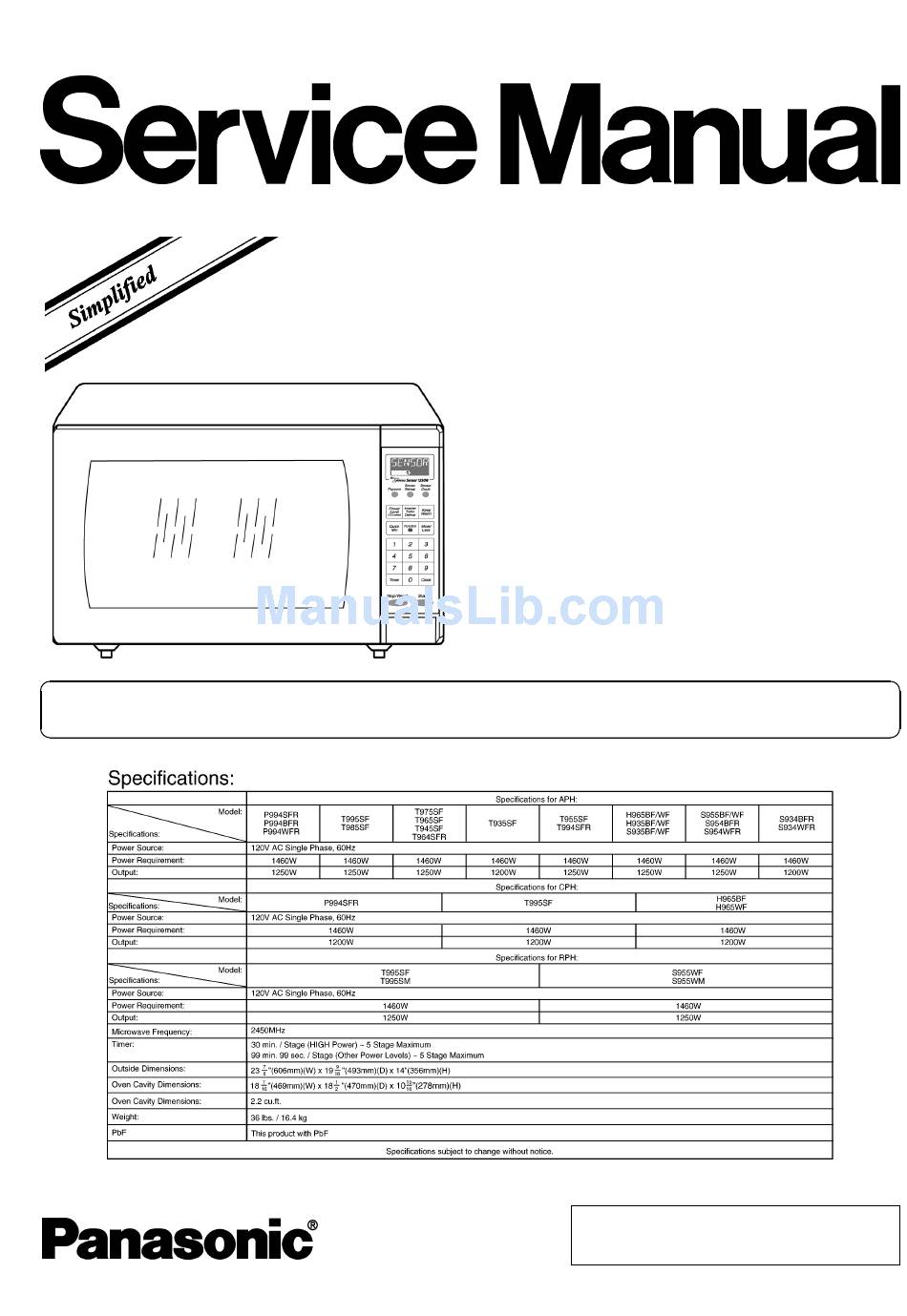

Please file and use this specified manual together with the service manual for Model NN-T695 (ORDER NO.
PHAMOS0501001C1).
NN-P994SFR
NN-P994BFR
NN-P994WFR NN-T995
NN-T985SF NN-T975SF
NN-T965SF NN-T955SF
NN-T945SF NN-T935SF
NN-T994SFR NN-T964SFR
NN-H965 NN-S955
NN-H935 NN-S935
NN-S954BFR NN-S954WFR
NN-S934BFR NN-S934WFR
APH(USA)
CPH(CANADA)
RPH(Mexico/Latin American)
© 2005 Panasonic Home Appliances Microwave
Oven (Shanghai) Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.PHAMOS0501005A7

Microwave Oven

E1
