Summary of Contents for InFocus IN114ST

  • Page 2 This document applies to regulatory model IN112/IN114/IN116/IN114ST. collection or recycling options. Input ratings: 100-240Vac, 2.6A, 50-60Hz InFocus reserves the right to alter product offerings and specifications at any time without notice.

  • Page 3: Table Of Contents

    Table of Contents Introduction Positioning the projector Connecting a computer source VGA connection Connecting power Optional computer connections Displaying an image Adjusting the image Connecting a video device Video device connections Composite video connection VGA connection Component video connection S-video connection Shutting down the projector Troubleshooting your setup Using the remote control...
  • Page 4 • Refer to this guide for proper startup and shutdown procedures. • Only genuine InFocus lamps are tested for use in this projector. Use of non • Follow all warnings and cautions in this manual and on the projector. InFocus lamps may cause electrical shock and fire, and may void the projector •...

  • Page 5: Introduction

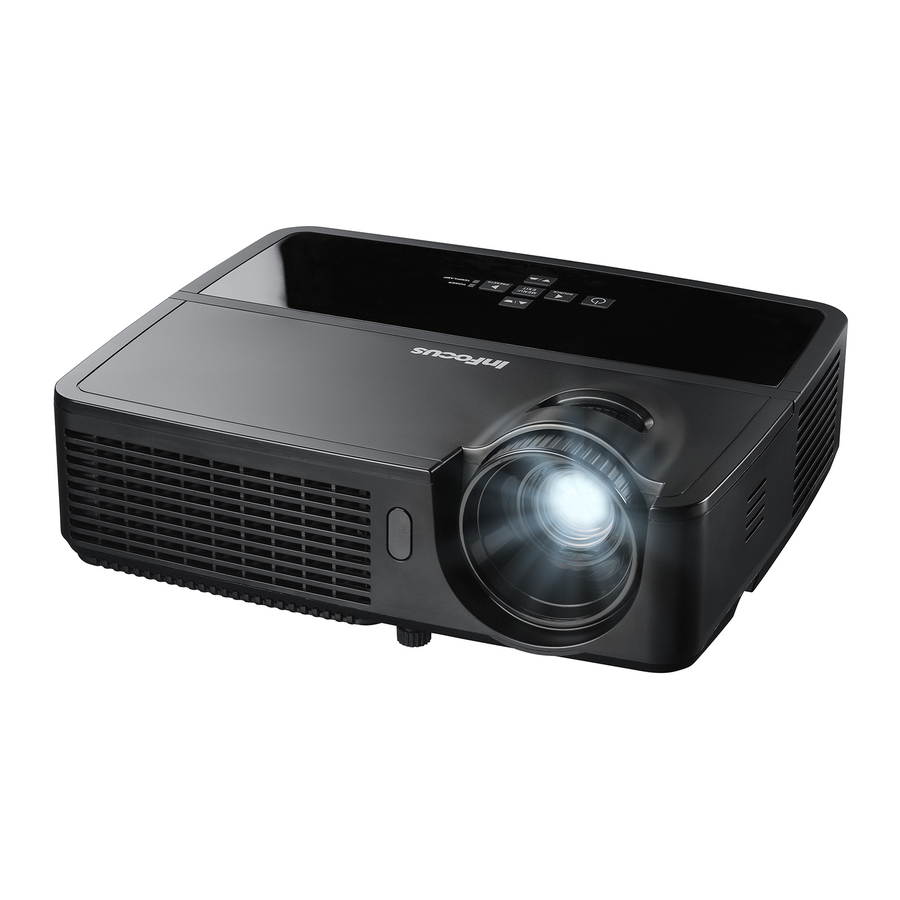

    It is a versatile projector that is flexible enough for business presentations zoom and home video viewing too. IN112 has native SVGA 800 x 600 resolution, IN114/ IN114ST has native XGA 1024 x 768 resolution, and IN116 has native WXGA focus keypad 1280 x 800 resolution.
  • Page 6 Monitor out, for VGA pass through to an external monitor. • Audio input for video and computer. • Audio output to external speakers. • RS-232 serial control. Command control codes are on our support website at www.infocus.com/support. composite security lock video monitor...

  • Page 7: Positioning The Projector

    IN114 must be at least 45.3” (1.2m) from the projection screen, the 30”/0.8m 24”/0.6m 45.3”/1.2m 50.6”/1.3m IN114ST must be at least 31” (.8m) from the projection screen, and the IN116 must be at least 55.4” (1.4m) from the projection screen. 60”/1.5m 48”/1.2m 92.2”/2.3m 102.9”/2.6m...

  • Page 8: Connecting A Computer Source

    Connecting a computer source connect VGA cable VGA connection Connect one end of the provided computer cable to the Computer in 1/Computer in 2 connector on the projector and the other to the VGA connector on your computer. If you are using a desktop computer, you will need to disconnect the monitor cable from the computer’s video port first.

  • Page 9: Displaying An Image

    Press FN and the labeled function key simultaneously. Refer to your laptop's documentation for more information about your laptop's key combination or go to the InFocus website at: www.infocus.com/ support and review the Laptop Activation chart in the Learn area of the support site.

  • Page 10: Adjusting The Image

    Adjusting the image adjust height If necessary, adjust the height of the projector by rotating the elevator foot to extend the foot. elevator If necessary, rotate the leveling foot located at the rear of the projector. foot Avoid placing your hands near the hot exhaust vent at the front of the projector. adjust distance Position the projector the desired distance from the screen at a 90 degree angle to the screen.

  • Page 11: Connecting A Video Device

    If your source uses RCA audio connectors, a Y-cable or adapter may be used. (Note: A separate audio connection is not required for HDMI source No video cables are provided with the projector. You can order cables from InFocus inputs.) or provide your own.

  • Page 12: Shutting Down The Projector

    The lamp failed to ignite. POWER: Solid blue Contact Technical Support if the problem TEMP/LAMP: Blinking pink persists. Visit www.infocus.com/support to contact service. POWER: Solid blue The lamp has reached its end of life and must be replaced. The lamp will continue TEMP/LAMP: Blinking red to operate untils it fails.
  • Page 13 Problem Solution Result No start up screen Plug power cord into the projector Correct image press power button Computer image projected Only start up screen appears Press the Source button activate laptop’s external port Restart laptop...
  • Page 14 Problem Solution Result Press the Auto Image button on remote Computer image projected No computer image, just the words “Signal out of Adjust computer refresh rate (Windows 7: Control range” Panel > Display > Screen Resolution > Advanced Settings > Adapter tab). Varies per operating system. You may also need to set a different resolution on your computer, as shown in the following problem, “image fuzzy or cropped”...
  • Page 15 Problem Solution Result Change the computer's "Resolution" setting to match Image fuzzy or cropped Image clear and not cropped the projector's resolution (Windows 7: Control Panel > Display > Screen Resolution). Varies per operating system. Move projector, adjust height Correct image Image not centered on screen MDL: IN112 FW: 0.13...
  • Page 16 Problem Solution Result Image not square Adjust Keystone on keypad Square image Adjust Sharpness in the Basic Menu Image not sharp Correct image Basic Menu MDL: IN112 FW: 0.13 Aspect Ratio ◄ Auto ► Auto Image Execute Brightness Contrast Keystone Presets Presentation Sharpness...
  • Page 17 Problem Solution Result Turn off Ceiling Mount in Basic menu Correct image Image upside down Basic Menu MDL: IN112 FW: 0.13 Aspect Ratio ◄ Auto ► Auto Image Execute Brightness Contrast Keystone Presets Presentation Sharpness Volume Ceiling Mount Advanced Menu Turn off Rear Project in Advanced Menu >...
  • Page 18 Problem Solution Result Turn off the internal LCD display on your laptop The video embedded in my PowerPoint Embedded video plays correctly presentation does not play on the screen Make sure vents aren’t blocked, turn off the projector Lamp turns on Lamp won’t turn on, the projector is overheating and allow it to cool for one minute POWER...
  • Page 19 Still need assistance? If you need assistance, visit our website at www.infocus.com/support or call us. Check out our HOW TO section there for additional information on using this projector for home theater or gaming applications. See the Quick Start booklet for support contact information.

  • Page 20: Using The Remote Control

    Using the remote control • Auto Image button to resynch the projector to the source. • Resize button to switch among aspect ratios (see page 25). The remote uses two (2) AAA batteries (not provided). They are easily installed by •...

  • Page 21: Using The Audio

    Using the audio connect audio cable Using the projector’s speakers Connect the audio source to the Audio In connectors to hear audio through the projector speakers. Amplified speakers may also be connected to the projector using the Audio Out connector. To adjust the volume, press the Volume buttons on the remote.

  • Page 22: Using The Keypad Buttons

    Using the keypad buttons Most buttons are described in detail in other sections, but here is an overview of their functions: Power–turns the projector on and off (page 8). Right arrow/Presets - When the menu is displayed, the right arrow button navi- POWER gates through the menu.

  • Page 23: Optimizing Computer Images

    Optimizing computer images Presentation features Several features are provided to make giving presentations easier. Here is an After the projector is running and the image is on the screen, you can optimize the overview, details are found in the menu section. image using the onscreen menus.

  • Page 24: Optimizing Video Images

    Optimizing video images After your video device is connected properly and the image is on the screen, you can optimize the image using the onscreen menus. For general information on using the menus, see page 24. • Adjust the Keystone, Contrast, Brightness, Color, or Tint (page 25). •...

  • Page 25: Using The Menus

    Using the menus To open the menus, press the Menu button on the keypad or remote. (The keypad navigation menus automatically close after 60 seconds if no buttons are pressed.) Use the buttons arrow buttons to move up and down to review the menu options. POWER To enter a submenu, highlight the desired submenu and press >...

  • Page 26: Basic Menu

    Basic Menu Basic Menu Basic Menu MDL: IN112 To adjust the following settings, highlight the setting, use the right and left arrows FW: 0.13 to adjust the values. Aspect Ratio ◄ Auto ► Auto Image Execute Aspect Ratio: Aspect ratio is the ratio of the image width to image height. TV Brightness screens are usually 4:3.

  • Page 27: Advanced Menu

    Advanced Menu White Intensity: increases the brightness of whites that are near 100%. Image: Force Wide: when this is off, the analog locking algorithms choose the stan- 3D Control: dard mode resolution (4:3) as the preferred default resolution. When this is on, 3D Control: allows you to enjoy 3D (stereoscopic) content.
  • Page 28 Blank Key: select what to display when the blank key on the remote is Advanced Menu pressed: your custom snapshot, a solid color screen (blue, black or white), or Advanced Menu MDL: IN112 the factory logo screen. FW: 0.13 Image 3D Control...
  • Page 29 4-button press sequence. If you enter an incorrect PIN 3 times in succession, the projector will automatically shut down. If you lose or forget your custom PIN, contact InFocus Technical Support.
  • Page 30 Timer Auto Off Time: automatically turns the projector off after no signals are detected for a preset number of minutes. If an active signal is received before the projector powers down, the image will be displayed. High Altitude Setting High Altitude Setting: We recommend you turn on the High Altitude Mode when your environment is between 5000' (1500m) and 10,000' (3000m) above sea level.

  • Page 31: Maintenance

    Maintenance Cleaning the lens Apply a non-abrasive camera lens cleaner to a soft, dry cloth. • Projector must be off and the lens must be at room temperature. • Avoid using an excessive amount of cleaner, and don’t apply the cleaner directly to the lens.

  • Page 32: Replacing The Projection Lamp

    NOTE: Be sure to use the InFocus lamp module designed for this projector. You can order new lamps from www.infocus.com (in select areas), your retailer or your dealer. Only genuine InFocus lamps are tested for use in this projector. Use of non InFocus lamps may cause electrical shock and fire, and may void the projector warranty.
  • Page 33 Turn off the projector and unplug the power cord. turn off and unplug wait 60 minutes Wait 60 minutes to allow the projector to cool thoroughly. projector Remove the lamp door, located on top of the projector, by removing the screw on the side of the lamp door, sliding the door forward, and lifting the lamp door off.
  • Page 34 Mute 27 Color Space 26 Computer In connector 7 Overscan 26, 27 Connecting Video device 10 Phase 26 Contacting InFocus 18 PIN Protect 28 Contrast 25 Power connector 7 Customer service contact information 18 Power cord 7 Power Saving Mode 28...
  • Page 35 Troubleshooting problems 11 Projector Info 27, 29 Rear Project 27 Red/Green/Blue Gain 26 Red/Green/Blue Offset 26 remote control 19 Resetting the projector 29 Screen Aspect 10 Search Screen 28 Service 29 Set Black Level... 26 Sharpness 25 Show Messages 28 Source 27 Source Info 27, 29 Sync Threshold 26...
