- Page 1 Portable Air Conditioner, Dehumidifier, Heater and Fan utilizing Heat Pump Technology OWNER’S MANUAL Model #: PH1-14R-03 (Reference#: KY-36) PH1-12R-03 (Reference#: KY-34) 3046364 Please read owner’s manual carefully before operating unit.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION................................3 IMPORTANT SAFEGUARDS ............................4 LCDI POWER CORD AND PLUG..........................5 PRODUCT DIAGRAM ..............................6 INSTALLATION................................7 CONTROL PANEL AND MULTI-COLOR DISPLAY ....................10 CONTROL PANEL FUNCTIONS ..........................11 OPERATION USING THE CONTROL PANEL ......................12 COOLING.................................. -
Page 3: Introduction

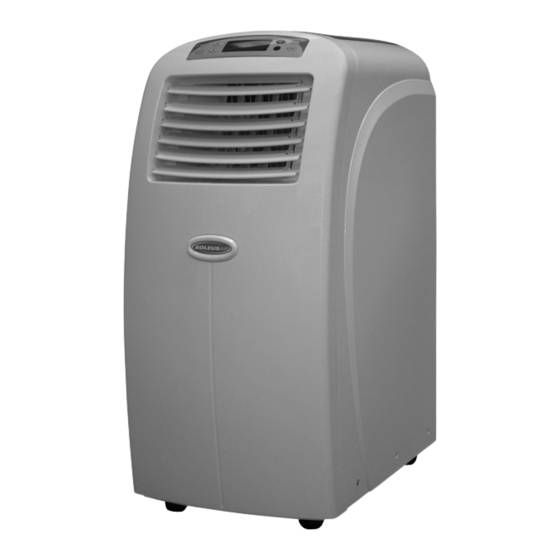

INTRODUCTION Thank you for purchasing the Soleus Air PH1-14R-03/PH1-12R-03 Portable Air Conditioner and Heater utilizing heat pump technology. This unit is designed to improve indoor living and working comfort by providing cooling, dehumidifying, heating, and ventilation with minimal installation. This multi-functional unit operates as an air conditioner, dehumidifier, heater, and fan. Unlike traditional portables, there is no bucket to empty. -
Page 4: Important Safeguards
Before installing and using your portable air conditioner and heater, it is important that you read this owner’s manual carefully. Store this manual in a safe place for future reference. This instruction manual is used for guidance and does not form part of a contract. It reserves the right to make technical changes without prior notice. -
Page 5: Lcdi Power Cord And Plug
LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord with no termination on the load side and a LCDI attachment plug on the line side. -
Page 6: Product Diagram
PRODUCT DIAGRAM... -
Page 7: Installation
INSTALLATION SELECTING THE LOCATION MOUNTING THE EXHAUST HOSE... - Page 8 WINDOW KIT INSTALLATION...
-
Page 10: Control Panel And Multi-Color Display
CONTROL PANEL AND MULTI-COLOR DISPLAY ∨ ∧... -
Page 11: Control Panel Functions
CONTROL PANEL FUNCTIONS Starts or stops the unit. Press to select the operating mode: Fan Mode Air Conditioning Mode Heating Mode Dehumidifying Mode Auto Mode Press to select the fan speed: High, Medium, and Low. The fan speed can be visually distinguished by the number of the digital air segments (follow arrow above) flow out from the windmill fan image on the multi-color display. -
Page 12: Operation Using The Control Panel
OPERATION USING THE CONTROL PANEL COOLING 1. Properly install the exhaust hoses. 2. Plug the power cord into a grounded outlet. 3. Turn on the unit by pressing the On/Off button on the control panel. 4. Press the Mode button until “ ”... -
Page 13: Auto Mode
AUTO MODE 1. Properly install the exhaust hoses. 2. Plug the power cord into a grounded outlet. 3. Turn on the unit by pressing the On/Off button on the control panel. 4. Press the Mode button until the “ ” icon appears on the multi-color display. 5. -
Page 14: Remote Control & Operation
REMOTE CONTROL & OPERATION The remote control provided with the unit can be used to operate the portable air conditioner. The remote control uses 2 AAA batteries (provided). Install the batteries before using the remote control. The remote control can be used to do all the operations that can be programmed from the control panel. The LCD display on the remote control can show either Celsius or Fahrenheit. - Page 15 WATER DRAINAGE When the unit is in cooling mode, unwanted water is extracted from the air. Most of this water is used to cool the unit and make it run more efficiently. When the unit is used in extremely humid environments, water will collect in a water container at the bottom of the unit.
-
Page 16: Maintenance
MAINTENANCE... -
Page 17: Troubleshooting
TROUBLESHOOTING Before seeking repair or service, please check the following: Diagnostic system indicators appear if any of the following interrupts operation of the unit. The unit may require simple maintenance or repair by a qualified service technician. -
Page 18: Disclaimer
TECHNICAL SPECIFICATIONS ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE PRESENTATION OF THE MANUFACTURER. SOLEUS INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT TEST TO THE INFORMATION AND THE SPECIFICATIONS PRESENTED HEREWITHIN. -
Page 19: Warranty
WARRANTY One Year Limited Warranty Soleus International Inc. warrants the accompanying Soleus Air PH1-14R-03/PH1-12R-03 to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
