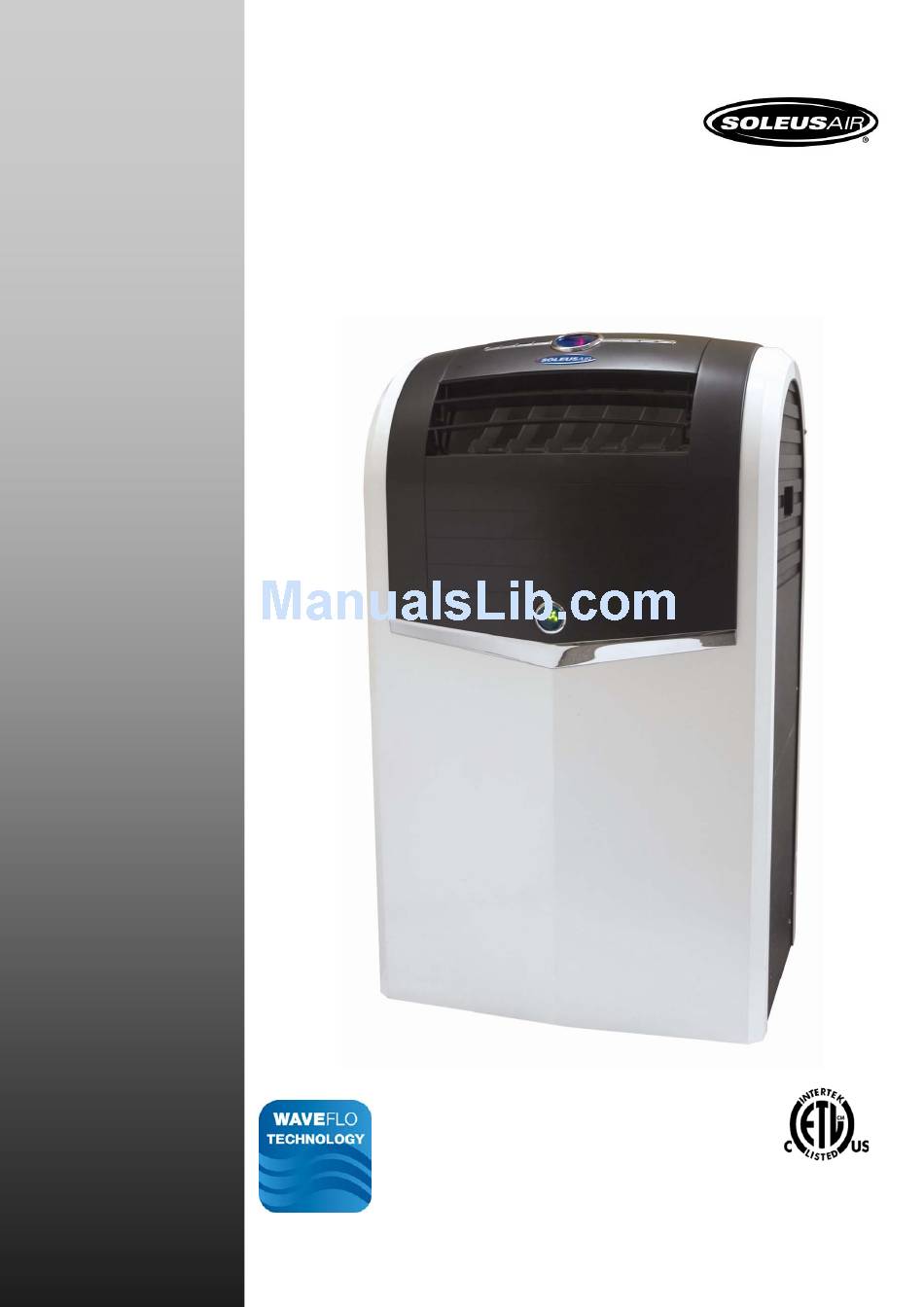

Portable Air Conditioner with
Heat Pump Technology
PH4-10R-01, PH4-12R-01, & PH4-14R-01
Operating Instructions
3092402
®
© 2006 Soleus Air International

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH4-10R-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Soleus Air PH4-10R-01

  • Page 1 Portable Air Conditioner with Heat Pump Technology PH4-10R-01, PH4-12R-01, & PH4-14R-01 Operating Instructions 3092402 ® © 2006 Soleus Air International...
  • Page 2: Important Instructions

    Thank you for choosing a Soleus Air Portable Air Conditioner with Heat Pump Technology. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Portable Air Conditioner with Heat Pump technology.
  • Page 3: Package Contents

    These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. • If the environment temperature is higher than the max operating temperature or lower than the minimum operating temperature, the air conditioner may not work properly. MODEL COOLING CAPACITY...
  • Page 4: Lcdi Power Cord And Plug

    3. Press RESET button for use If a test is performed and the indicator light remains ON, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations.
  • Page 5: Parts & Assembly

    INSTALLATION When the unit is operating as an air conditioner, heater, or dehumidifier, the unit draws in fresh outdoor air and exhausts hot air (in AC or dehumidifier mode) or cool air (in Heat mode) out of the room to complete the air exchange. When the unit is operating in fan mode, no outdoor air exchange takes place.
  • Page 6 DUAL HOSE WINDOW KIT INSTALLATION - To quickly and efficiently cool a large area.
  • Page 7 WINDOW KIT ASSEMBLY...
  • Page 8 SINGLE HOSE EXHAUST & WINDOW KIT INSTALLATION When you want quick spot cooling, install the PH4-10R/12R/14R-01 using the single hose window kit instal- lation. For Single Hose Installation Install only the left exhaust hose over the circular air outlet (this outlet will be on the left side of the unit when you are facing the back of the unit).
  • Page 9: Control Panel, Display, & Operating Instructions

    CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS CONTROL PANEL & MULTI-COLOR DISPLAY CONTROL PANEL SWING BUTTON TIMER BUTTONS MULTI-COLOR DISPLAY AUTO DEHUM. SLEEP MODE ON/OFF BUCKET FULL TIMER ON TEMP & TIMER SELECTION TEMP SELECT HEAT TEMPERATURE AND TIMER INDICATOR OSCILLATION ON/OFF TIMER OFF COMPRESSOR ON/OFF FAN SPEED BUTTON...
  • Page 10: Operating The Unit Using The Control Panel

    The timer will also remember the temperature settings, fan speed, and oscillation set- ting. The timer works when the unit is in Air Conditioner mode, Heating mode, Dehumidifier mode, Fan mode, and Auto mode...
  • Page 11 NOTE: During hot days, the unit will cool the room most efficiently by setting the temperature at the lowest setting and the fan speed on high. Reducing the length of the exhaust duct, insulating the exhaust hose and window kit, and keeping direct sunlight to a minimum will also improve the cooling efficiency. NOTE: When the unit is running on cooling mode, the exhaust hoses are required and must be vented outside using the supplied window kit.
  • Page 12 Emergency Condensate Holding Tank When the room temperature is low and the indoor humidity is high, the air conditioner may not be able to evaporate some of the moisture fast enough. When this happens, the water will accumulate in an emergency condensate tank inside the unit.
  • Page 13: Operating The Unit Using The Remote Control

    OPERATING THE UNIT USING THE REMOTE CONTROL REMOTE CONTROL MODE BUTTON FAN SPEED SWING (LOUVER OSCILLATION) SLEEP BUTTON HOUR SELECTER LCD DISPLAY POWER BUTTON TEMP SETTING TIMER ON TIMER OFF MINUTE SELECTER...
  • Page 14 Once Auto fan speed is selected the unit will beep and there will not be a fan speed displayed on the remote control. 4) Temperature Setting - When the unit is in Air Conditioner or Heating mode you can select your desired temperature. Press the ▲ or ▼ to select your desired temperature setting. The temperature on the LCD dis- play on the remote control will increase or decrease accordingly.
  • Page 15: Maintenance

    MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to performing any maintenance on the unit. Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may reduce. It is recommended to clean the filter once every two weeks or as needed.
  • Page 16: Warranty

    WARRANTY One Year Limited Warranty Soleus International Inc. warrants the accompanying Soleus Air PH4-10R/PH4-12R/PH4-14R Portable Air Conditioner with Heat Pump technology to be free of defects in material and workmanship for the applications specified in its op- eration instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
