- Page 1 TESLA C2050 AND TESLA C2070 COMPUTING PROCESSOR BOARD BD-04983-001_v04 | September 2010 Board Specification...
- Page 2 Pre Production Release July 16, 2010 RK, SM Updated specification with more recent boards • Updated board power September 10, 2010 RK, SM Added note to “Thermal Specifications” • section Tesla C2050 and Tesla C2070 Computing Processor Board BD-04983-001_v04 | ii...
-
Page 3: Table Of Contents
Power by Rail ................... 13 Thermal Specifications ................. 14 Thermal Qualification Summary ............. 14 Cooling Solution ................16 Support Information ................17 Certificates and Agencies ..............17 Agencies ..................17 Languages ..................18 Tesla C2050 and Tesla C2070 Computing Processor Board BD-04983-001_v04 | iii... - Page 4 LIST OF FIGURES Figure 1. Tesla C2050 / Tesla C2070 Block Diagram ........3 Figure 2. Tesla C2050 / Tesla C2070 Computing Processor Board ......5 Figure 3. Tesla C2050 / Tesla C2070 Bracket ..........6 Figure 4. 6-Pin PCI Express Power Connector ..........8 Figure 5.
-
Page 5: Overview
144 GB/s bandwidth. Tesla C2070 comes standard with 6 GB of GDDR5 memory. Both the Tesla C2050 and Tesla C2070 can be configured by the end user to enable or disable ECC or error correcting codes that can fix single-bit errors and report double-bit errors. -
Page 6: Key Features
PCI Express Gen2 ×16 system interface Physical dimensions: 4.376 inches × 9.75 inches, dual slot Board power dissipation Tesla C2050/Tesla C2070: Less than or equal to 238 W ● External Connectors Single port, dual-link DVI-I Internal Connectors and Headers One 6-pin PCI Express power connector ... -
Page 7: Computing Processor Description
Overview COMPUTING PROCESSOR DESCRIPTION Figure 1 is a block diagram of the Tesla C2050 / Tesla C2070 computing processor. Figure 1. Tesla C2050 / Tesla C2070 Block Diagram Tesla C2050 and Tesla C2070 Computing Processor Board BD-04983-001_v04 | 3... -
Page 8: Configuration
Overview CONFIGURATION There is one configuration available (Table 1) for the Tesla C2050 / Tesla C2070 board. Table 1. Board Configurations Specification Description Generic SKU reference 900-21030-0000-000 Chip Tesla T20 GPU Package size GPU 42.5 mm x 42.5 mm Processor clock 1.15 GHz... -
Page 9: Mechanical Specifications

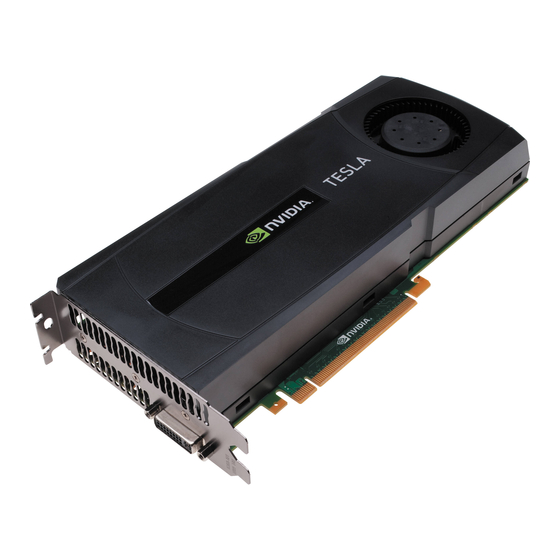

MECHANICAL SPECIFICATIONS PCI EXPRESS SYSTEM The Tesla C2050 / Tesla C2070 computing processor board (Figure 2) conforms to the PCI Express full height (4.376 inches by 9.75 inches) form factor. 9.75 inches 4.376 inches Figure 2. Tesla C2050 / Tesla C2070 Computing Processor Board... -
Page 10: Standard I/O Connector Placement
Mechanical Specifications STANDARD I/O CONNECTOR PLACEMENT As shown in Figure 3, the Tesla C2050 / Tesla C2070 includes a single, dual-link DVI-I connector. Dual-link DVI-I Figure 3. Tesla C2050 / Tesla C2070 Bracket Tesla C2050 and Tesla C2070 Computing Processor Board... -
Page 11: Internal Connectors And Headers
Mechanical Specifications INTERNAL CONNECTORS AND HEADERS The Tesla C2050 / Tesla C2070 module supports the following internal connectors and headers. 8-pin PCI Express power connector (can be used with a 6-pin power cable) 6-pin PCI Express power connector ... -
Page 12: Figure 4. 6-Pin Pci Express Power Connector
Mechanical Specifications Figure 4. 6-Pin PCI Express Power Connector Tesla C2050 and Tesla C2070 Computing Processor Board BD-04983-001_v04 | 8... -
Page 13: Figure 5. 8-Pin Pci Express Power Connector
Mechanical Specifications Figure 5. 8-Pin PCI Express Power Connector Tesla C2050 and Tesla C2070 Computing Processor Board BD-04983-001_v04 | 9... -
Page 14: Table 2. 6-Pin Pci Express Power Connector Pinout
Pin Number Description +12 V +12 V +12 V Sense Table 3. 8-Pin PCI Express Power Connector Pinout Pin Number Description +12 V +12 V +12 V Sense1 Sense0 Tesla C2050 and Tesla C2070 Computing Processor Board BD-04983-001_v04 | 10... -
Page 15: 4-Pin Fan Connector
Mechanical Specifications 4-Pin Fan Connector The Tesla C2050 / Tesla C2070 board uses a 4-pin fan to control the fan speed of the thermal solution. The details of the connector (P/N: PH-T-4) are given in Figure 6. This part is a 2.0 mm (0.079") pitch disconnectable connector. -
Page 16: Power Specifications
Power is taken from the PCI Express host bus as well as the 8-pin and the 6-pin PCI Express power connectors. Without auxiliary power provided to the Tesla C2050 / Tesla C2070 board, the board will boot at reduced power and functionality and LED lights on the board will light up as listed in Table 5. -
Page 17: Power By Rail
Power Specifications POWER BY RAIL Table 6 lists the power by rail numbers for the Tesla C2050 / Tesla C2070 board. Power by rail measurements are worst case scenarios per rail while maximum TDP power is based on our worst case power application. -
Page 18: Thermal Specifications
THERMAL QUALIFICATION SUMMARY The information contained in this summary report is intended to provide users of the Tesla C2050 / Tesla C2070 computing processor with thermal information necessary to assist in thermal management efforts. This information is not intended to provide a specific thermal management solution. -
Page 19: Table 7. Test Setup And Configuration
Thermal any operating Shutdown: 105 conditions * Junction temperature is reported by NVIDIA thermal sensor ** Ambient air temperature – average of 3 sensors positioned at the inlet to the GPU fan Tesla C2050 and Tesla C2070 Computing Processor Board... -
Page 20: Cooling Solution
Thermal Specifications COOLING SOLUTION NVIDIA will utilize a Cooler Master active fan sink to cool the GPU, memories and power components. For fan and environmental specifications refer to Table 9. Table 9. Fan and Environmental Specifications and Conditions Specifications Conditions... -
Page 21: Support Information
Federal Communications Commission (FCC) Industry Canada - Interference-Causing Equipment Standard (ICES) Korean Communications Commission (KCC) Underwriters Laboratories (cUL) Voluntary Control Council for Interference (VCCI) Tesla C2050 and Tesla C2070 Computing Processor Board BD-04983-001_v04| 17... -
Page 22: Languages
Dutch Finnish French French (Canada) German Italian Japanese Korean Norwegian Portuguese (Brazil) Russian Spanish Spanish (Latin America) Swedish Thai NOTE: NVIDIA’s CUDA software is only supported in English (U.S.) Tesla C2050 and Tesla C2070 Computing Processor Board BD-04983-001_v04 | 18... - Page 23 HDMI Licensing LLC. ROVI Compliance Statement NVIDIA Products that are ROVI-enabled can only be sold or distributed to buyers with a valid and existing authorization from ROVI to purchase and incorporate the device into buyer’s products. This device is protected by U.S. patent numbers 6,516,132; 5,583,936; 6,836,549; 7,050,698; and 7,492,896 and other intellectual property rights.
