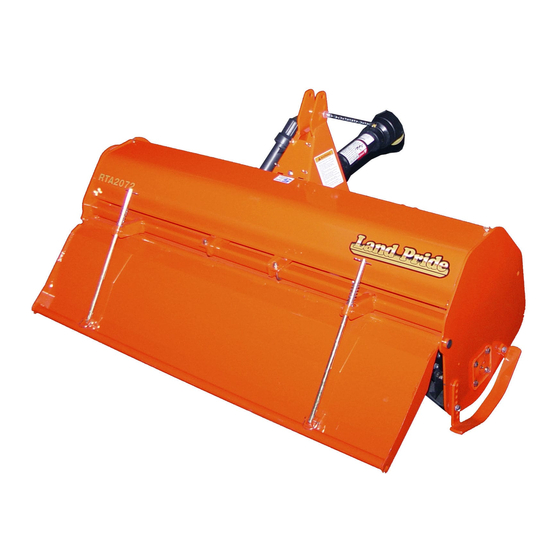

Land Pride RTA10 Series Features And Benefits

Rotary Tillers,
Standard Tine Rotation
Features and Benefits
Rotary Tillers, Standard Tine Rotation
Features
Working widths
Gearbox Warranty
Tractor HP range
Fits Land Pride
Quick-Hitch
Formed and reinforced rear
deflector
Clevis hitch
Adjustable lower hitches
Skid shoes
6 1/2" Digging depth
Adjustable Parking stand
Plate steel hitch
4 'C' shaped tines per flange
Solid rotor shaft
15" Rotor swing diameter
#80 Drive chain enclosed in oil bath
Stamped chain cover
Fully shielded shear pin or slip-
clutch driveline
American made
Double lip seal on rotor bearing
Offset Dimensions
Designs, specifications, features and information are subject to change without notice.
4/08/08
RTA10 Series
42", 50", 58" to meet a wide range of abdications and needs.
5 Years on housing, gears, seals, and bearings. shows our confidence in the product.
17-25 HP
Allows for quick and easy one person hook-up. Does not offset with Quick-Hitch.
Keeps dirt in and leaves a level finish. Forming gives deflector additional strength.
Adjustable deflector allows for various finish results.
Provides additional strength and easy one person hook-up.
Offset unit to cover right tire track.
Control depth with seven adjustments.
For deep soil penetration.
Easy hook-up and storage.
Plate steel is stronger than flat bar type hitch
'C' Shaped tines require less HP to move through the ground.
1 3/4" Solid steel rotor shaft for strength.
For deep tilling and turning the soil over faster.
Heavy drive chain stretches less, and oil bath keeps wear to a minimum.
Stamped forming gives the chain cover strength.
Protects the gearbox and rotor shaft upon hitting obstructions. Slip-clutch saves having
to replace shear-pins.
Many tillers are imported. American made means better parts availability.
Double lip seal helps keep the dirt out and the grease in.
42" width 16"-26" std.
50" width 25"-25" std.
58" width 29"-29" std.
Benefits
13"-29" Maximum Right 23"-19" Maximum Left
18"-32" Maximum Right 32"-18" Maximum Left
22"-36" Maximum Right 36"-22" Maximum Left
311-252F continued on next page
66
